Mercia Garden Products 01DTOVRA0806SDFW-V2 Manual

8x6 overlap reverse apex shed.
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVRA0806SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVRA0806SDFW-V2

Summary of Contents for Mercia Garden Products 01DTOVRA0806SDFW-V2

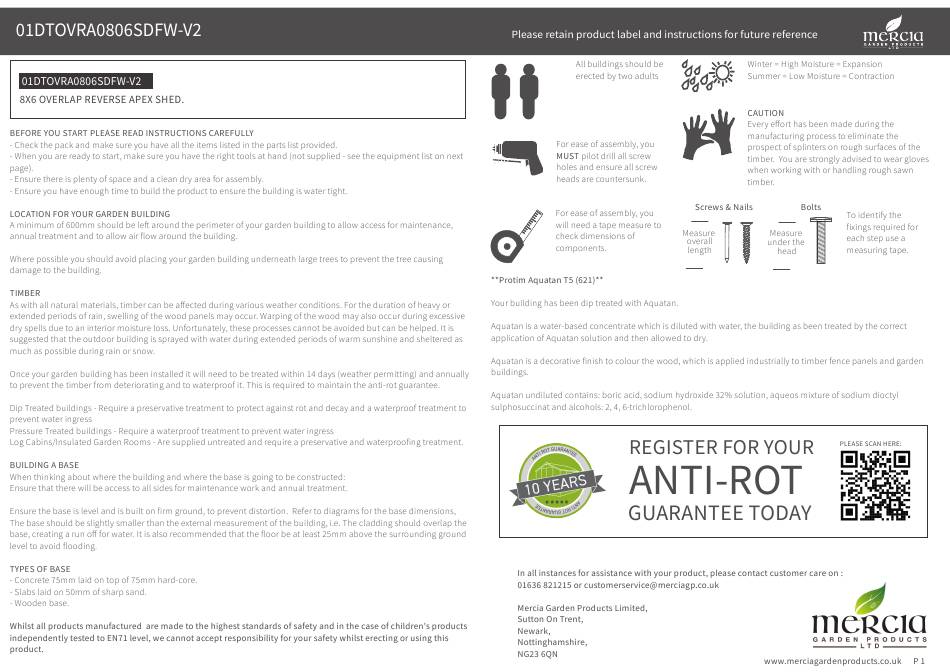

  • Page 1 2mm Drill bit...
  • Page 3 Before assembly Door Block 150x28x28mm QTY 1 please make sure you have a F2828-150mm suitable base ready to erect your building Ridge Bar 1152x27x70mm QTY 2 F2770-1152mm Eaves Framing 1195x28x28mm QTY 4 MADE IN GREAT BRITAIN F2828-1195mm Overall Dimensions: Base Dimensions: Door Beading Strips 1600x12x28mm QTY 2 Width = 2438mm Width = 2350mm...

  • Page 4: Pre-Assembly

    Step 2 Nail Bag IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 There may be extra screws present in the nail bag No. 7 QTY 1 No. 24 QTY 3 30mm Screw x 192 50mm Screw x 26 20mm Screw x 3 Place the door (No.7) within the Door Panel 40mm Screw x 40...
  • Page 5 Step 5 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.1 QTY 1 Parts Needed- No.3 QTY 1 - No.3 QTY 1 - No.4 QTY 1 Place the Door Panel (No.1) and x to the Place the Plain Gable (No.3) and the Window panel using 3x50mm screws in an Plain Panel (No.4) onto the...
  • Page 6 Step 7 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.23 QTY 2 Parts needed - No. 5 QTY 4 Fix the ridge bar to each Gable, Place the Roof Sheets (No. 5) on top of the ensuring it is ush with the gable building making sure the roof sheet meets...
  • Page 7 Step 11 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 5 QTY 4 Parts needed - No. 18 QTY 2 Place the Roof Panels (No. 5) on top of the Place Truss Block (No.18) directly below building, ensuring equal spacing either side the Truss Frame (No.20).
  • Page 8 Step 15 Step 14 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.12 QTY 3 Fix the building to the oor using - No.13 QTY 1 24x40mm screws, ensuring to go - No.16 QTY 4 through the panel framing and into - No.22 QTY 1 the oor - No.27 QTY 2...
  • Page 9 Step 16 Step 17 IMPORTANT: Pre-drill before xing screws. Parts Needed- No.21 QTY 1 Parts Needed- No.14 QTY 6 - No.29 QTY 1 Fix the cover trims (No.14) to the Cut the felt (No.21) into 2 sheets corners and the joins of the building, measuring 2500mm (L) x 1000mm secure using 3x30mm for each cover (W) and lay onto roof as shown in...
  • Page 10 Step 19 IMPORTANT: Pre-drill before xing screws. Parts Needed- No.8 QTY 1 - No.11 QTY 2 Fix the Door Beading strips (No.11) to the door panel framing, secure using 4x30mm Screws per strip. Fix the door block (No.8) onto the door framing using 2x30mm Screws, going through the front of the door cladding and into the door block...
