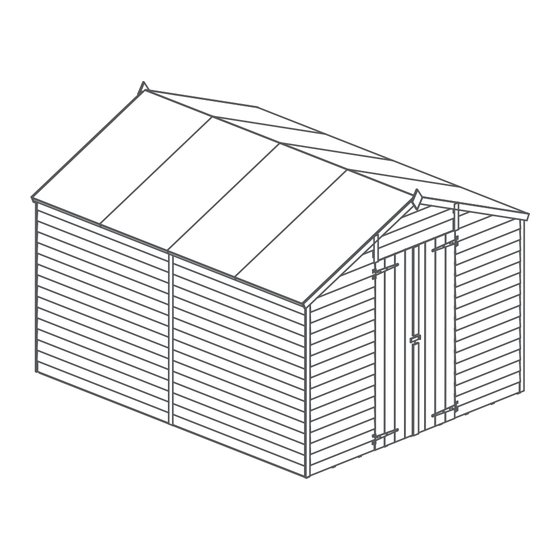

Mercia Garden Products 01DTOVAX08DDNWGP-V1 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVAX08DDNWGP-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVAX08DDNWGP-V1

Summary of Contents for Mercia Garden Products 01DTOVAX08DDNWGP-V1

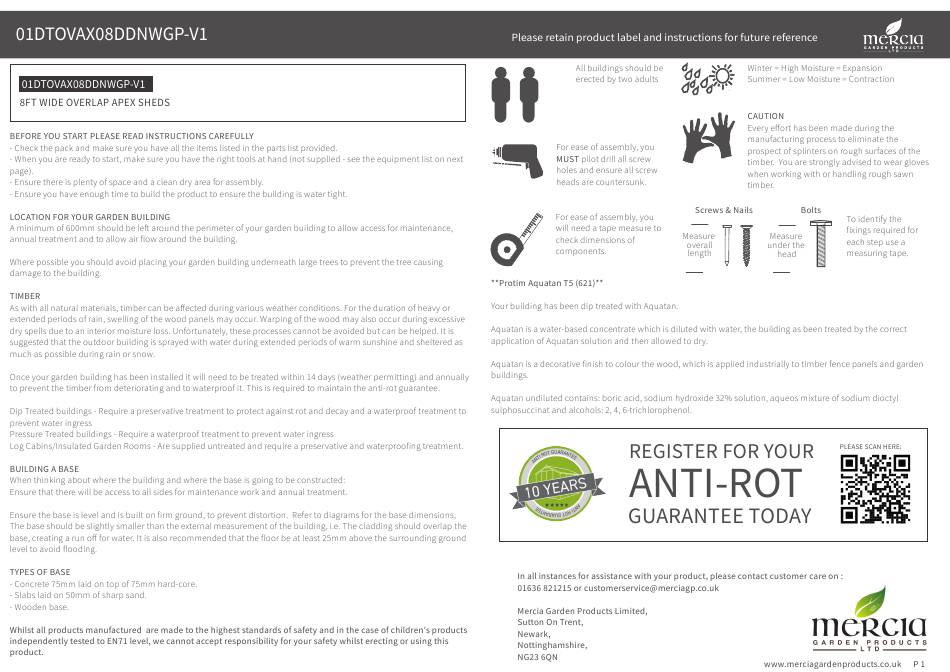

  • Page 1 2mm Drill bit...
  • Page 3 Pack Requirements: Pack Requirements: please make sure you have a Door Block Hasp and Staple QTY 1 27x44x140mm QTY 2 01DTOVAX08DDNWGP-V1 QTY 1 01DTOVAX08DDNWGP-V1 QTY 1 suitable base ready to erect your 28x28x150mm QTY 4 01DTOVAX0508FWPB-V1 QTY 2 01DTOVAX0508NWPB-V1 QTY 2...
  • Page 4 Contents for packs to create a 10x8 shed Building Content- 10X8 Pack B With Window Building Content- 10X8 Pack C No Window With Window Pack- 01DTOVAX0508FWPB-V1 No Window Pack- 01DTOVAX0508NWPB-V1 Window Panel QTY 1 Floor QTY 2 Plain Panel QTY 1 Roof Sheet QTY 4 Floor QTY 2 Plain Panel QTY 2...
  • Page 5 Contents for packs to create a 12x8 shed Building Content- 12X8 Pack B With Window Building Content- 12X8 Pack C No Window With Window Pack- 01DTOVAX0608FWPB-V1 No Window Pack- 01DTOVAX0608NWPB-V1 Window Panel QTY 1 Floor QTY 2 Plain Panel QTY 1 Roof Sheet QTY 2 Floor QTY 2 Plain Panel QTY 2...

  • Page 6: Pre-Assembly

    Step 2 Pre Assembly IMPORTANT : Pre-drill before xing screws. Parts Needed- No.15 QTY 1 Before assembling remove the transportation Lay the Gable Cover Strip (No.15) onto the blocks from the bottom of each panel. assembled front gable, align the edges of the strip with the top of the gable and Take care removing the blocks as to not damage secure using 6x40mm screws, ensuring to...
  • Page 7 Step 4 IMPORTANT : Pre-drill before xing screws. Step 6 IMPORTANT : Pre-drill before xing screws. 10x8 Parts Needed 10x8-No.27 QTY 4 Locate the second oor assembly along side Parts Needed 12x8-No.38 QTY 4 the rst oor assembly. 10x8 Place the two Floors (No.27 or No.38) on Secure to the oor using 2x30mm screws rm and level base, ensure the base has per block, going through the oor OSB and...
  • Page 8 Step 8 Step 7 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed 10x8- No.26 QTY 1 (Fixed Window Only) Parts Needed 10x8- No.28 QTY 1 - No.28 QTY 1 (No Window QTY 2) Parts Needed 12x8- No.39 QTY 1 Parts Needed 12x8- No.37 QTY 1 (Fixed Window Only) **Please note: the Window Panels and Plain Panels are - No.39 QTY 1(No Window QTY 2)
  • Page 9 Step 9 Step 10 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed 10x8- No.26 QTY 1 (Fixed Window) Place the assembled Front Gable onto the - No.28 QTY 1 (No Window) building oor, secure the front gable to the Parts Needed 12x8- No.37 QTY 1 (Fixed Window) side panels using 4x50mm screws at each - No.39 QTY 1(No Window)
  • Page 10 Step 12 Step 13 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed 10x8- No.9 QTY 2 Parts Needed- No.5 QTY 2 - No.8 QTY 4 - No.11 QTY 1 - No.31 QTY 2 Fix the T Hinges (No.8) onto the Parts Needed 12x8- No.9 QTY 2 doors (No.5) and door gable using - No.11 QTY 1...
  • Page 11 Step 15 Step 16 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed 10x8- No.29 QTY 8 Parts Needed 10x8- No.29 QTY 8 10x8 - No.30 QTY 8 10x8 Parts Needed 12x8- No.40 QTY 4 Parts Needed 12x8- No.40 QTY 4 Place the Roof sheets (No.29 or No.40) on - No.42 QTY 4...
  • Page 12 Step 18 Step 17 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed- No.14 QTY 6 Parts Needed- No.17 QTY 6 Position the truss block (No.14) at the Position the Truss Framing (No.17), 10x8 top of the side panels framing, ensuring centrally underneath the joins of the the angle is ush to the Truss Frame roof panels internally (For the 12x8,...
  • Page 13 Step 20 Step 21 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Use 40mm screws to x the roof sheets Once the roof is fully xed, attach the (No.29 or No.40) down the sides and at panels to the oor using 50mm screws.
  • Page 14 Step 23 Step 22 IMPORTANT : Pre-drill before xing screws. Parts Needed- No.20 QTY 6 Parts Needed- No.36 QTY 1 Using the felt (No.36), cut out three Place the panel cover trims (No.20) onto strips with the dimensions: each corner and panel join of the 10x8 - 3050mm (L) X 1000mm (W) building, secure using 3x30mm screws 12x8 - 3650mm (L) X 1000mm (W)
  • Page 15 Step 25 Step 27 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed- No.10 QTY 2 Parts Needed-No.19 QTY 2 - No.13 QTY 4 Fit the Front panel Cover strip - No.25 QTY 2 (No.19) onto the front gable, so they Place the door blocks (No.13) on top of cover where the panels join together.
  • Page 16 Step 28 Step 29 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Parts Needed- No.33 QTY 10 Parts Needed- No.12 QTY 1 - No.34 QTY 4 - No.22 QTY 1 - No.35 QTY 2 - No.23 QTY 1 Fix 2 window strips to the framing that sits either Locate the Door cover strips (No.22 side of the window, using 3x30mm screws per trim.
