Mercia Garden Products 01DTOVRA0806SDFW-V3 Manual

8x6 overlap reverse apex shed
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVRA0806SDFW-V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVRA0806SDFW-V3

Summary of Contents for Mercia Garden Products 01DTOVRA0806SDFW-V3

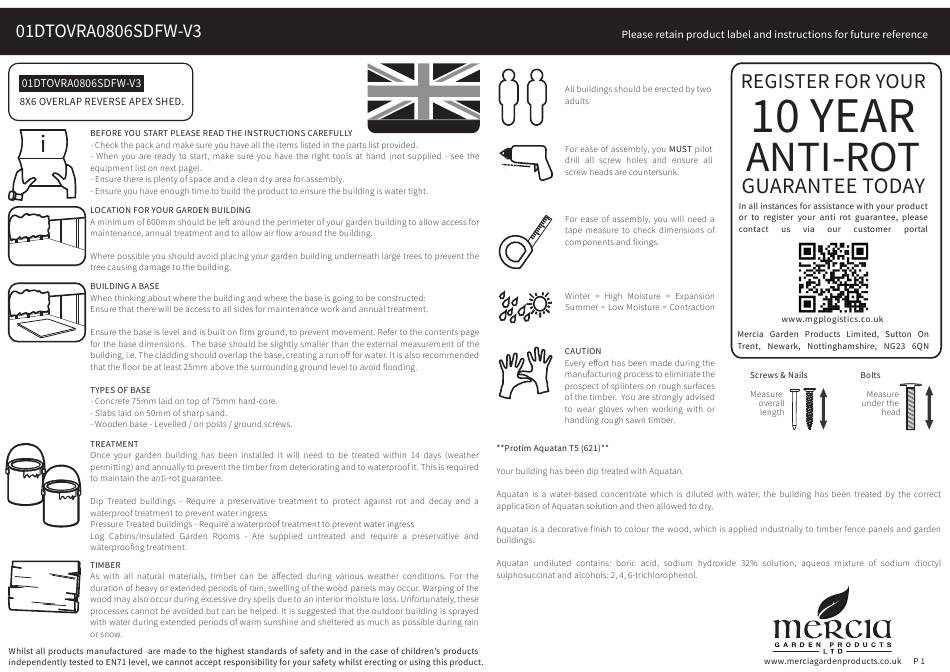

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 End View 01DTOVRA0806SDFW-V3 Door Block - 28x28x150mm QTY 1 Overall Dimensions: F2828-150mm Width = 2438mm End View Depth = 1905mm Height = 2217mm Base Dimensions: Ridge Bar - 27x70x1152mm QTY 2 Width = 2350mm F2770-1152mm Depth = 1753mm End View...

  • Page 5: Pre-Assembly

    Pre Assembly Before assembling remove the transportation blocks from the bottom of each panel. Felt Hasp and Staple QTY 1 PI-07-0207 Take care removing the blocks as to not damage the panels. Tap with a at headed screwdriver and hammer. Window Cill QTY 1 Dispose of the blocks once removed.
  • Page 6 Step 3 Step 2 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 3 QTY 1 Parts needed - No. 1 QTY 1 No. 4 QTY 1 No. 7 QTY 1 No. 24 QTY 3 Place the Plain Gable (No.
  • Page 7 Step 5 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 Parts Needed - No. 23 QTY 2 No. 3 QTY 1 Fix the ridge bar to each Gable, Place the Door Panel (No. 1) and x to the ensuring it is ush with the Window panel using 3x50mm screws in an...
  • Page 8 Step 11 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 5 QTY 4 Parts needed - No. 18 QTY 2 Place the Roof Sheets (No. 5) on top of the Place Truss Block (No. 18) directly building making sure the roof sheet meets below the Truss Frame (No.
  • Page 9 Step 13 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 12 QTY 3 Secure the Roof Sheets (No. 5) in place by No. 13 QTY 1 screwing down through the sheets into the No.
  • Page 10 Step 16 Step 17 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 21 QTY 1 Parts Needed- No. 14 QTY 6 No. 29 QTY 1 Locate the Cover Trims (No. 14) to the Cut the felt (No. 21) into two sheets corners and the joins of the building.
  • Page 11 Step 19 Step 20 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 8 QTY 1 Parts Needed - No. 25 QTY 2 No. 11 QTY 2 No. 26 QTY 1 Fix the Door Beading strips (No. 11) to the Locate the Turn Buttons (No.
  • Page 12 Step 21 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 13 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
  • Page 13 ANY QUESTIONS? Scan code contact us via our customer portal.
