Mercia Garden Products 01DTOVAX1006DDFW-V1 Manual

10x6 overlap apex shed
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVAX1006DDFW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVAX1006DDFW-V1

Summary of Contents for Mercia Garden Products 01DTOVAX1006DDFW-V1

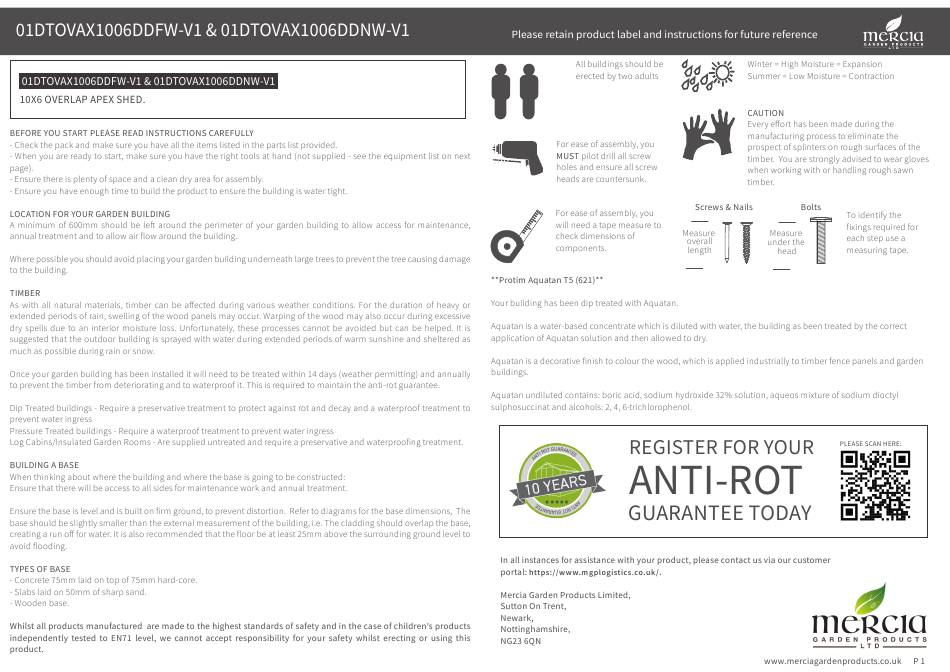

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 S1260-1016mm suitable base ready to erect your building Fixed Window Strip 12x30x546mm QTY 10 (WITH WINDOW ONLY) S1230-546mm 01DTOVAX1006DDFW-V1 Cover Trims 12x45x1575mm QTY 6 S1245-1575mm 01DTOVAX1006DDNW-V1 MADE IN GREAT BRITAIN Door Beading Strip 7x28x1590mm QTY 2...

  • Page 5: Pre-Assembly

    Step 1 IMPORTANT: Pre-drill before xing screws. Nail Bag Parts needed - No. 1 QTY 1 PLEASE SCAN HERE: There may be extra screws present in the nail bag No. 7 QTY 2 No. 20 QTY 4 50mm Screw x 52 30mm Screw x 141 Place the doors (No.
  • Page 6 Step 2 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 5 QTY 2 Parts needed - No. 2 QTY 1 No. 3, (or 4) QTY 1 Place the oors (No.5) on a rm and level base, ensure the base has suitable drain- **Please note: Whether you have purchased age free from areas where standing water...
  • Page 7 Step 5 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. PLEASE SCAN HERE: Parts needed - No. 1 QTY 1 No. 4, (or 3) QTY 1 Place the assembled ridge bar in between the Gables (No. 1&2) in line Fix the end of the Window Panel (No.4) with the central uprights within the (or Plain Panel) to the already standing...
  • Page 8 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 4 Parts needed - No. 14 QTY 2 No. 13 QTY 4 Position a Truss Frame (No. 14), centrally Fix the eaves frames (No.13) to each roof underneath the join of the two roof sheets sheet (No.6) using 3x30mm screws per (No.
  • Page 9 Step 11 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 15 QTY 1 Parts needed - No. 16 QTY 2 Place the Truss Support Brace (No. 15) Place Truss Block (No. 16) directly below underneath the two Truss Frames (No.
  • Page 10 Step 14 Step 13 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 23 QTY 1 Once roof xed, Cut the felt (No. 23) into three sheets attach the building to the oor measuring 3050mm (L) x 1000mm (W). with 50mm screws. Ensure the screws go through Lay the sheets onto roof as shown in diagram, ensuring there is a 50mm overhang around...
  • Page 11 Step 16 Step 15 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. PLEASE SCAN HERE: Parts needed - No. 10 QTY 6 For a windowless version go to step 16 Fit the Cover Trims (No.10) over each Parts needed - No. 9 QTY 14 panel join and corner of the building as No.
  • Page 12 Step 20 Step 18 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 17 QTY 2 Parts needed - No. 18 QTY 2 No. 26 QTY 1 Attach the Inner Door Blocks (No. 18) to the Fix the door strips (No.
  • Page 13 It is ESSENTIAL that you apply wood treatment immediately after the building has been assembled. AFTER TREATMENT: score around protective cover on glazing and carefuly peel covering back Want to share your experience with us? Leave us a review on Feefo, TrustPilot or Google. Your reviews help other people nd and trust our business, as well as helping to play an important role in our growth and improvement!
  • Page 14 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.

This manual is also suitable for:

01dtovax1006ddnw-v1
