Mercia Garden Products 01DTOVPN0806SDFW-V2 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVPN0806SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVPN0806SDFW-V2

Summary of Contents for Mercia Garden Products 01DTOVPN0806SDFW-V2

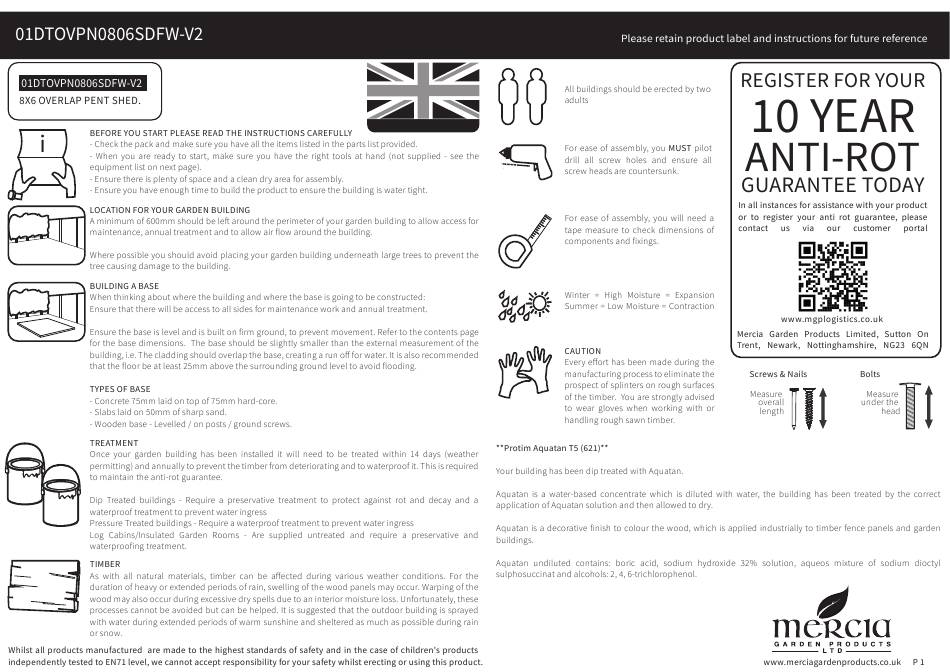

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 01DTOVPN0806SDFW-V2 End View Overall Dimensions: Ridge Bar 27x44x1712mm QTY 2 Width = 2410mm F2744-1712mm Depth = 1890mm Height = 2014mm End View Door Block 28x28x150mm QTY 1 Base Dimensions: Width = 2350mm F2828-150mm Depth = 1753mm End View Eaves Framing 28x28x795mm QTY 6...

  • Page 5: Pre-Assembly

    Pre Assembly Before assembling remove the transportation blocks from the bottom of each panel. Window Cill QTY 1 PI-08-0001 Take care removing the blocks as to not damage the panels. Tap with a at headed screwdriver and hammer. Dispose of the blocks once removed. Turn Button QTY 2 PI-07-0034 Hasp and Staple QTY 1...
  • Page 6 Step 2 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Parts Needed - No. 4 QTY 1 No. 8 QTY 1 No. 5 QTY 2 No. 25 QTY 3 Place the Left Gable (No.
  • Page 7 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 2 QTY 1 Parts needed - No. 9 QTY 2 No. 3 QTY 1 Align the Ridge Bars (No. 9) between the front and back of the building, **Please note: the front panels are interchangeable and can be positioned on approx 732mm from the gable to the...
  • Page 8 Step 8 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No.7 QTY 3 Parts Needed - No. 24 QTY 1 Position the assembled Roof Panels Cut the felt (No. 24) into two sheets measuring: 2480mm (L) x 1000mm (W).
  • Page 9 Step 12 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 15 QTY 3 Parts Needed - No. 12 QTY 4 No. 16 QTY 3 No. 13 QTY 3 No. 14 QTY 1 Locate the Cover Trims (No.
  • Page 10 Step 14 Step 16 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 10 QTY 1 No. 19 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment Fix the Door Beading strips (No. 19) to your garden building as soon as to the door panel framing, secure possible.
  • Page 11 ANY QUESTIONS? Scan code contact us via our customer portal.
