Mercia Garden Products 01DTOVAX0406DDNW-V1 Manual

Dip treated overlap apex shed 4x6 double door no windows
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVAX0406DDNW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVAX0406DDNW-V1

Summary of Contents for Mercia Garden Products 01DTOVAX0406DDNW-V1

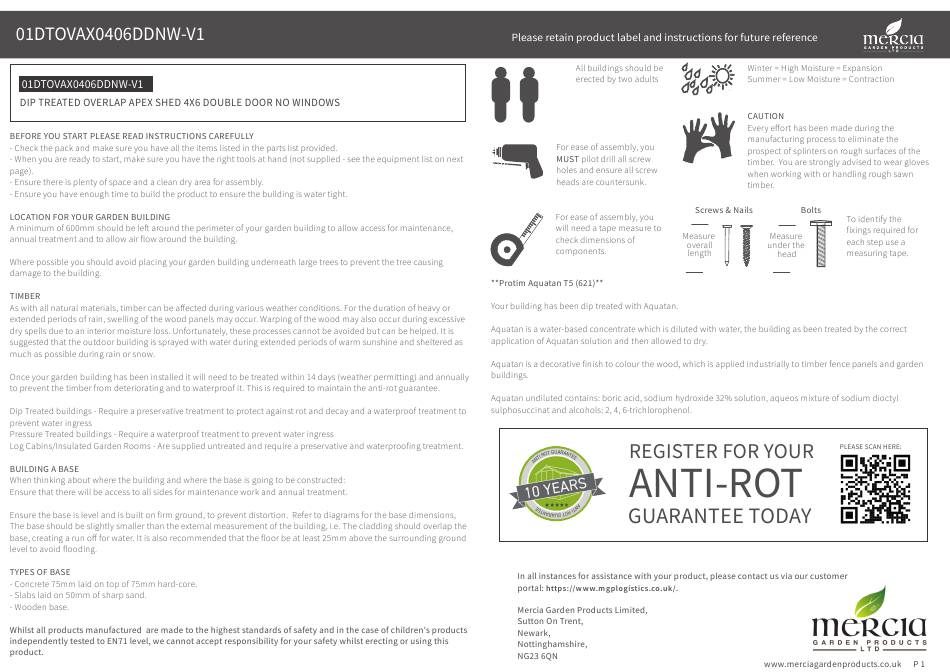

  • Page 1 2mm Drill bit...

  • Page 2: Any Questions

    PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
  • Page 3 Before assembly Door Strip - 12x60x770mm QTY 2 please make sure you have a S1260-770mm suitable base ready to erect your Felt building Door Block - 28x28x150mm QTY 2 F2828-150mm L-Bracket QTY 2 PI-07-0012 Finial QTY 2 MADE IN GREAT BRITAIN SHED DIAMOND FINIAL Overall Dimensions: Base Dimensions:...
  • Page 4 Step 1 IMPORTANT: Pre-drill before xing screws. Pre Assembly Parts needed - No. 1 QTY 1 No. 5 QTY 2 Before assembling remove the transportation No. 14 QTY 4 blocks from the bottom of each panel. Place the doors (No.5) within the door Take care removing the blocks as to not damage gable opening.
  • Page 5 Step 4 Step 2 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Parts needed - No. 4 QTY 1 No. 3 QTY 1 Place the oor (No.4) on a rm and Fix the end of the Plain Panel (No.3) to the level base, ensure the base has Back Panel with 3x50mm screws as shown suitable drainage free from areas...
  • Page 6 Step 6 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 10 QTY 2 No. 19 QTY 2 Use 40mm screws to x the roof sheets (No. 19) down the sides and at the Fix the eaves frames (No.10) to each roof bottom being sure that the screws attach sheet (No.19) using 3x30mm screws per...
  • Page 7 Step 9 Step 10 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 16 QTY 1 Parts needed - No. 8 QTY 4 Fit the Cover Trims (No.8) over each Cut the felt (No. 16) into three sheets at corner of the building as shown in the 1300mm (L) X 1000MM (W).
  • Page 8 Step 14 Step 12 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 2 Parts needed - No. 12 QTY 2 No. 18 QTY 1 Attach the Door Blocks (No. 12) to the Fix the door strips (No.
  • Page 9 It is ESSENTIAL that you apply wood treatment immediately after the building has been assembled. AFTER TREATMENT: score around protective cover on glazing and carefuly peel covering back...
  • Page 10 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
