ATD Tools ATD-7354 Owner's Manual page 9

50-ton air axle jack
Hide thumbs Also See for ATD-7354:

Advertisement

PRT7354-P12

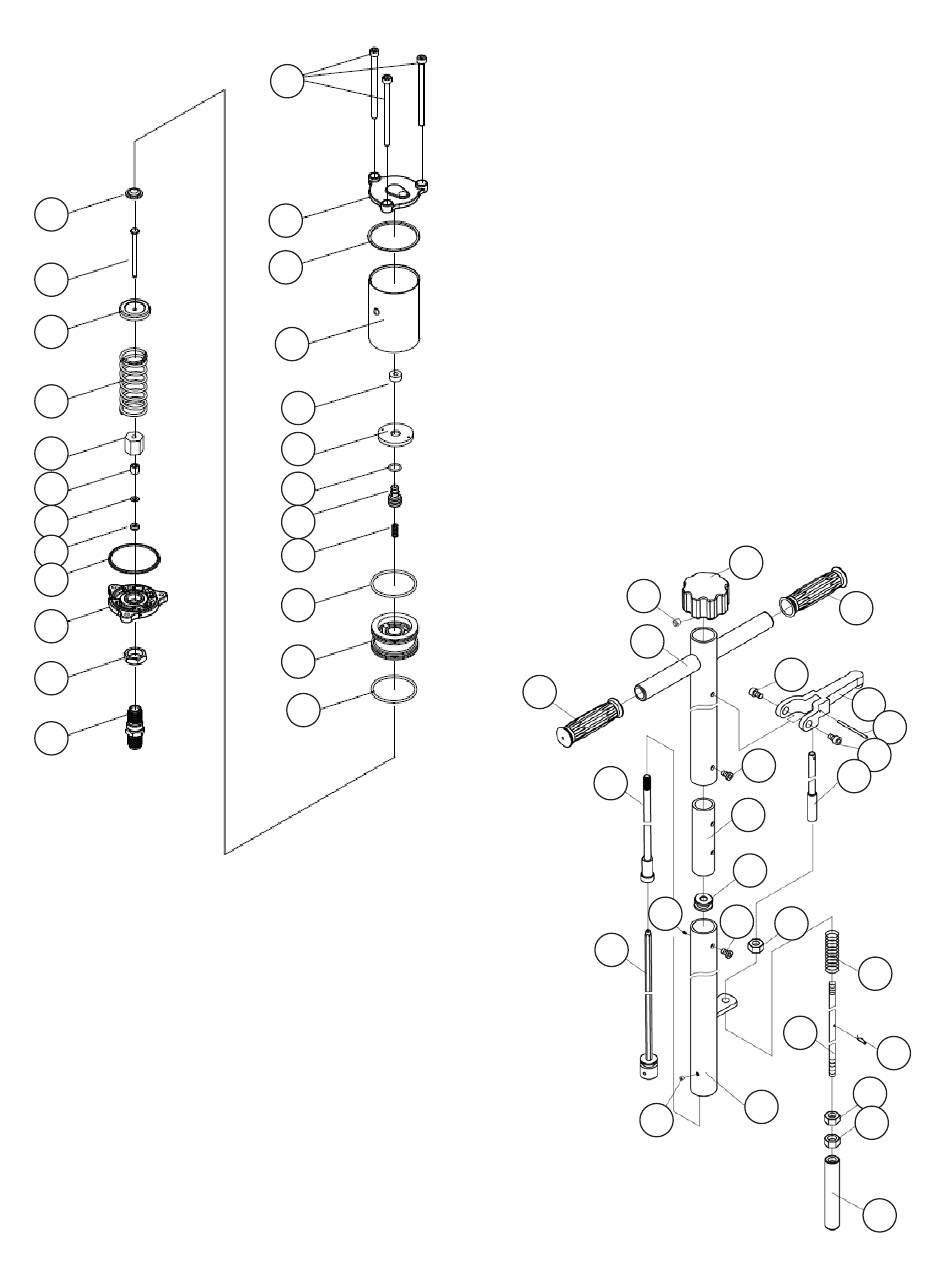

Air Motor Exploded View
A12
A11
A10
A09
A08
A07
A06
A05
A04
A03
A02
A01
A22
A21
A04
A20
A19
A18
A17
A16
A15
A13
A14
A13
PRT7354-22
Handle Exploded View
S21
S2
S3
S19
S20
S14
9
S1
S4
S15
S18
S17
S16
S15
S8
S11
S13
S3
S5
S6
S4
S7
S9
S10
S8
S8
S12
