Before Use
1. Verify that the product and application are compatible, if in doubt call ATD Tools, Inc. Technical Service at 636-327-9050.
2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards associated with its use.
3. To familiarize yourself with basic operation, locate and turn the release valve (handle knob):
a. Clockwise
the load.
b. Counterclockwise, no more than 1 full turn from closed position. This is the 'OPEN ' release valve position used
to lower the load. The further the release valve is turned counterclockwise, the faster the load descends.
4. With ram fully lowered, remove oil filler plug. Check oil level. Proper oil level should be just below the rim of the
opening. Reinstall oil filler plug.
5. Pour a teaspoon of good quality air tool lubricant into the air supply inlet of the lift control valve. Connect to air supply,
then squeeze the lift control valve for 3 seconds to evenly distribute lubricant.
NOTICE:
tape or compound is used on connections. To ensure dependable, trouble-free operation an in line air dryer and oiler
is recommended.
6. Ensure that the jack rolls freely. Raise and lower the unloaded ram throughout the lifting range before putting into
service to ensure the jack operates smoothly. Replace worn or damaged parts and assemblies with ATD Tools, Inc.
authorized replacement parts only.
Bleeding/Venting Trapped Air
2. Open release valve.
3. Activate air motor to vent air for no less than 10 seconds.
4.

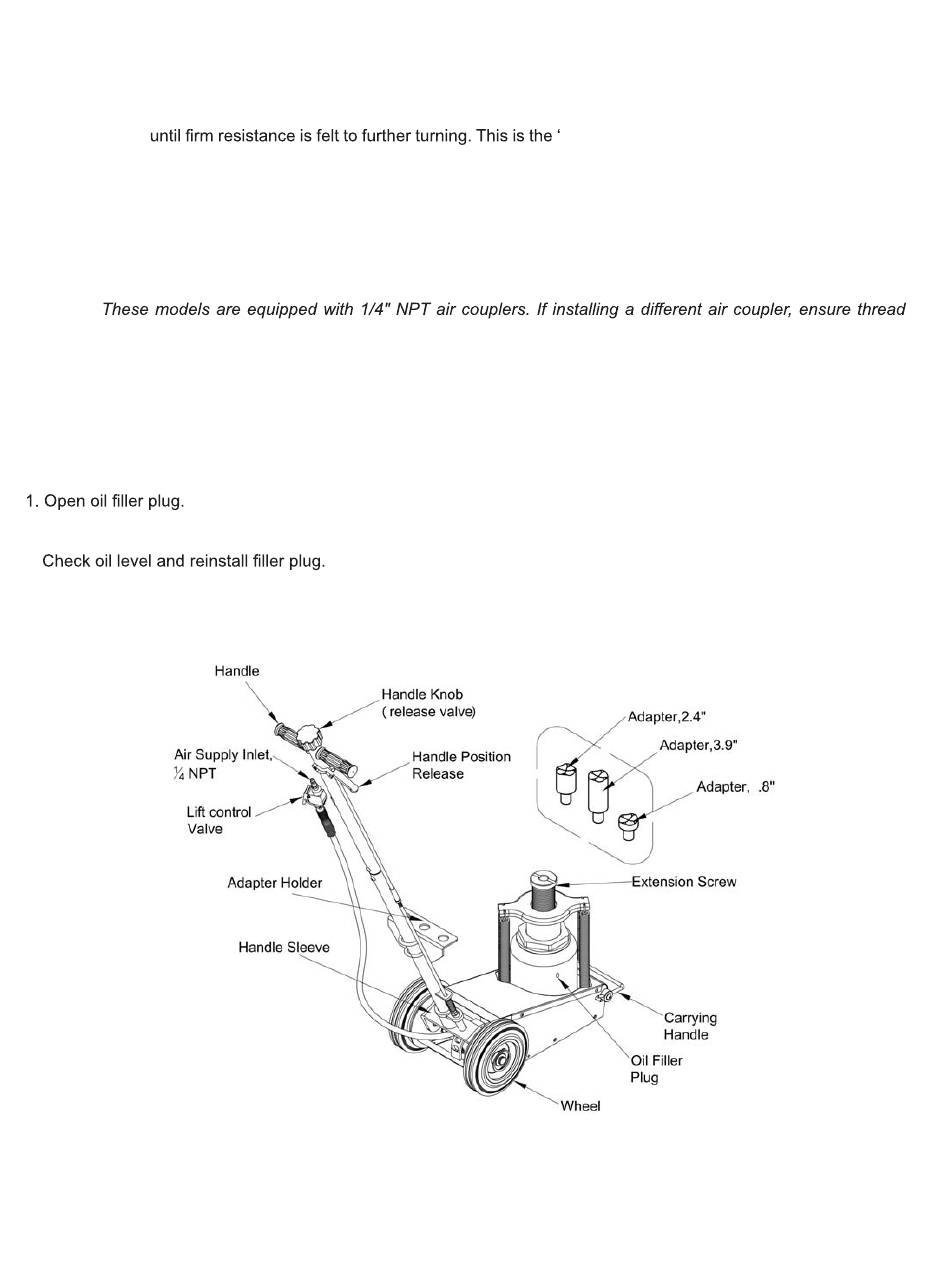

Figure 1 - Typical Truck Jack Nomenclature
4
CLOSED' release valve position used to raise
