ATD Tools ATD-7332A Operating Instructions & Parts Manual

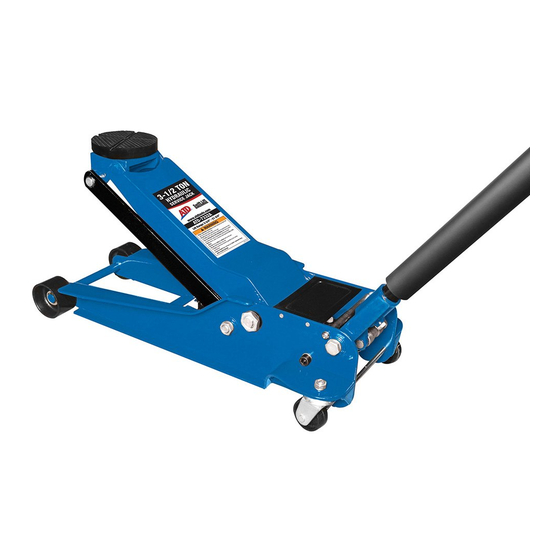

3-1/2 ton hydraulic service jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Opera ng Instru ons & Parts Manual
3-1/2 Ton Hydraulic Service Jack
Capacity
Min. Height
3-1/2 Ton
3-3/4"
Contents:
Page: 1. Speci ca ons
2. Safety & Warning Informa on
3. & 4. Setup, Opera on & Preven ve Maintenance
5. Inspec on, Storage & Troubleshoo ng
6. Exploded View & Replaceable Part Numbers
7. Warranty Informa on
8. Preven ve Maintenance Record Log
WARNING: This product may contain chemicals, including lead, known to the State of California
ATD-7332A
Max Height
Handle
Length
21-3/4"
49-1/4"
to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Model: ATD-7332A
Capacity: 3-1/2 Ton
Overall
Overall
Length
Width
31-1/8"
14"
1
Saddle
Shipping
Diameter
Weight
4-3/4"
107 LB
ATD7332A_rev_0417
