Operating Instructions & Parts Manual
Model number
atd-7322
Series a
atd-7328
U.S. Patent No's. 5,341,723 • 5,946,912
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
advertencia
!
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
Atd Tools Inc.
160 Enterprise Drive, Wentzville, MO 63385

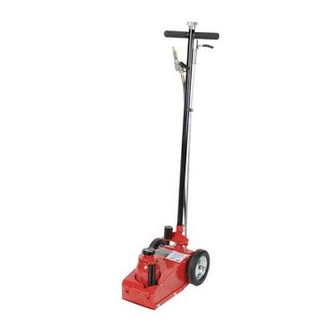

air / Hydraulic
axle Jack
capacity
Model Atd-7322 Series A
WARNING
!
To avoid crushing and related injuries:
never work on, under or around a
load supported only by a hydraulic
jack. aLWaYS use adequately rated
jack stands.
22 ton
22 ton
OIPM#7322-0310 rev
Printed in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools A Series
Summary of Contents for ATD Tools A Series
- Page 1 • No seguir estas indicaciónes puede causar daños personales o materiales. Atd Tools Inc. 160 Enterprise Drive, Wentzville, MO 63385 OIPM#7322-0310 rev Printed in China...
-
Page 2: Safety And General Information
Before Use 1. Verify that the product and application are compatible, if in doubt call ATD Tools Technical Service line (636)327- 9050 2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the product, its components and recognize the hazards associated with its use. -
Page 3: Specifications
SPeciFicatiOnS Min. Max. Hyd. Extension Model Capacity Jack Size (L x W) Height Height Range Screw Atd-7322 22 Ton 9-3/4" 19-1/4" 5-5/8" Series A 22-7/8" x 12-1/2" 3-7/8" Atd-7328 22 ton 8-1/4" 16-3/4" 4-5/8" Handle Knob (release valve) Handle Air Supply Inlet, 1/4"... -
Page 4: Operation
WARNING WARNING • Study, understand, and follow all printed materials provided with/on this product before use. • do not exceed rated capacity. • this is a lifting device only! To avoid crushing and related injuries: • immediately after lifting, support the load with •... -
Page 5: Maintenance
• Release valve not tightly closed • Ensure release valve tightly closed pressure • Hydraulic unit malfunction • Discontinue use, contact ATD Tools technical service Jack will not lower after unloading • Reservoir overfilled • Drain fluid to proper level •... - Page 6 replacement Parts for model atd-7322 Series a & atd-7328: Item Part No. Description Item Part No. Description A070-70000-100 Handle Assembly 5105-05016-000 Screw G251-00007-000 Handle Grip 5102-08025-000 Screw G251-40001-000 Knob 5202-00008-000 5402-04028-000 Spring Pin G62S-03301-000 Filler Screw 5115-10017-000 Bolt Spring (for Atd-7322 A070-00009-000 Series A only) 5303-00010-100...
-
Page 7: One-Year Limited Warranty
One Year LiMited WarrantY For a period of one (1) year from date of purchase, atd tools inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship, or which fails to conform to any implied warranty not excluded hereby. - Page 8 Notes atd tools inc. 160 Enterprise Drive, Wentzville, MO 63385 Tel: (636)327-9050 Fax: (636)327-9046 www.atdtools.com...
