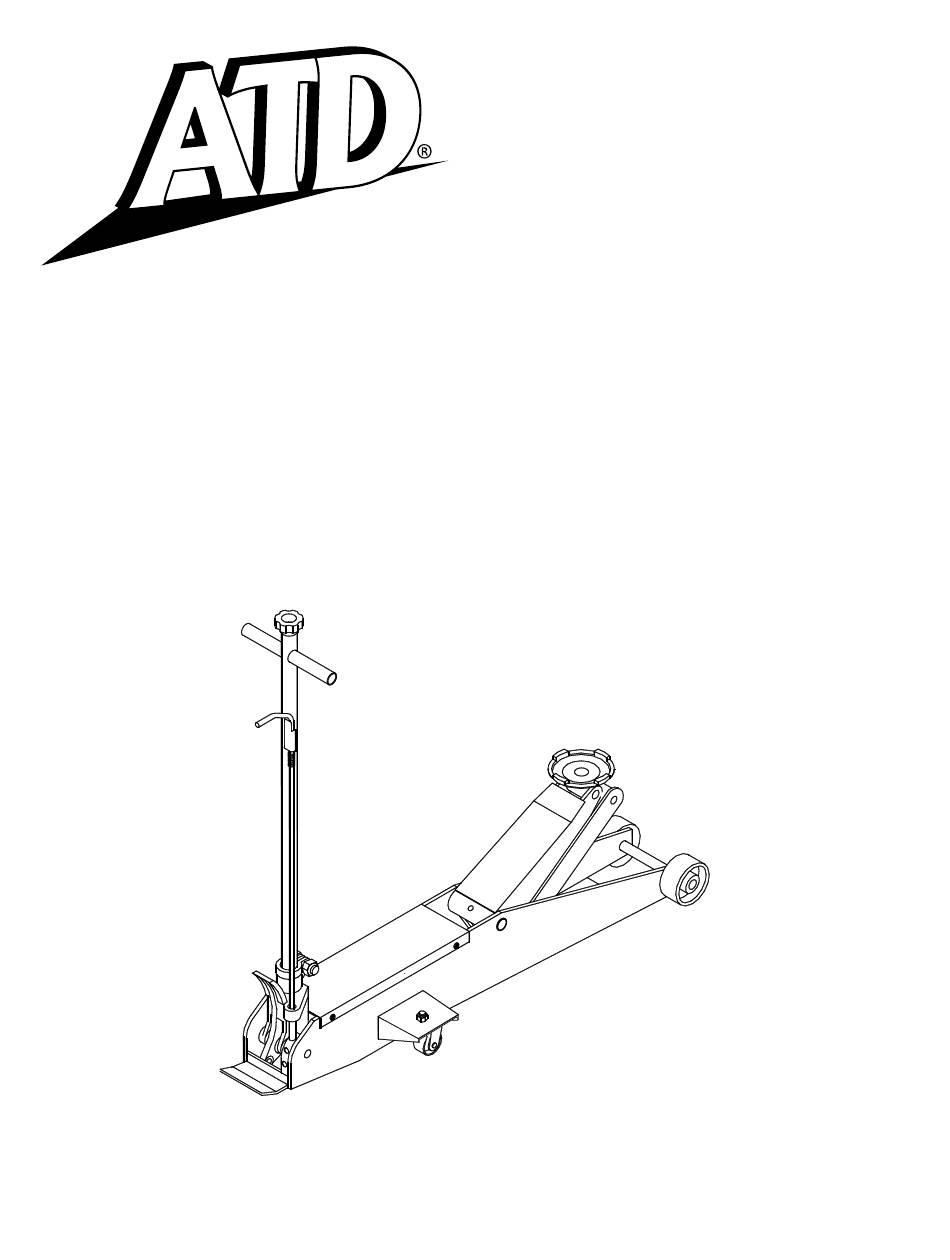

- Page 1 Long Chassis Hydraulic Service Jacks Operating Instructions & Parts Manual Capacity Model Number 10 Ton ATD-7396 ATD Tools, Inc. 160 Enterprise Drive, Wentzville MO 63385 Printed in China ATD7396-M0_052016...
-
Page 2: Product Description
PRODUCT DESCRIPTION ATD Tools Long Chassis Hydraulic Service Jacks are designed to lift, not sustain, rated capacity loads. They are designed to be used in conjunction with jack stands. Intended use: To lift one axle of a vehicle for the purpose of service and/or repair of vehicle components. -
Page 3: Before Use
BEFORE USE system failure. 1. Verify that the product and the application are compatible, if in doubt call ATD Tools Technical 1. Place vehicle in park, with emergency brake on and Service (888) 332-6419. wheels securely chocked to prevent inadvertent 2. -
Page 4: Maintenance
MAINTENANCE Important: Use only good grade hydraulic jack oil. Avoid Lubrication mixing different types of fluid and NEVER use brake A periodic coating of light lubricating oil to pivot points, fluid, turbine oil, transmission fluid, motor oil or glycerin. axles and hinges will help to prevent rust and assure that Improper fluid can cause premature failure of the jack wheels, casters and pump assemblies move freely. - Page 5 Replacement Parts Illustration for Model ATD-7396 Figure 2 - Replacement Parts Illustration for Model ATD-7396...
- Page 6 Front Wheel Assembly G661-90038-K03 Caster Assembly G250-90009-K03 Bolt Assembly G651-31000-000 Pump Assembly G251-00007-000 Handle Grip G1006S-126 Seal Kit for Hyd Unit G250-90009-K04 Seal Kit for Air Motor G831-03210-000 Piston for Air Motor Figure 3 - Replacement Parts Illustration for Model ATD-7396...
- Page 7 ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, ATD Tools, Inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy.
- Page 8 Notes: ATD Tools, Inc. 160 Enterprise Drive, Wentzville MO 63385...
