ATD Tools ATD-7328 Owner's Manual

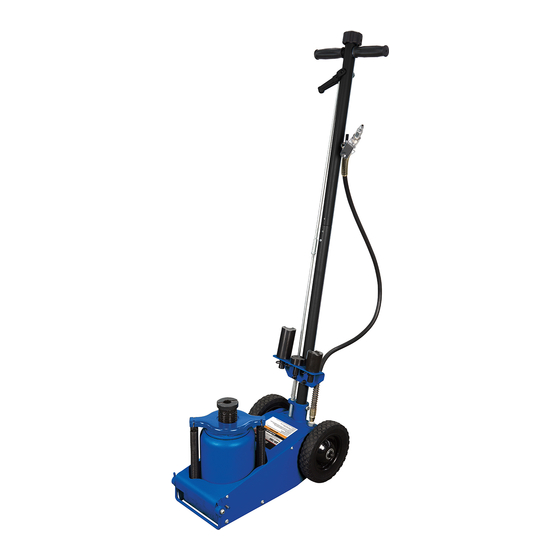

22-ton low profile axle jack
Hide thumbs Also See for ATD-7328:
1
2
3
4
5
6
7

Advertisement

Table of Contents

22-Ton Low Profile Axle Jack
Features:
Low pickup height and maximum lift height
Large steel wheels for easy positioning
Sturdy, one-piece handle
Self-returning spring for ease and convenience
The safety alert symbol is used to alert you to potential personal injury hazards. Obey all
!
safety messages that follow this symbol to avoid possible injury or property damage.
Read this manual and follow all Safety Rules and Operating Instructions before using this product.
ATD-7328
Owner's Manual
Capacity: 22 Tons
Visit us at www.atdtools.com
L
Hydraulic Range: 4-5/8"
Shipping
eight: 97 lbs.
ATD7328_rev_0119

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD-7328 and is the answer not in the manual?

Questions and answers

Related Manuals for ATD Tools ATD-7328

Summary of Contents for ATD Tools ATD-7328

  • Page 1 ATD-7328 22-Ton Low Profile Axle Jack Owner’s Manual Capacity: 22 Tons Features: Low pickup height and maximum lift height Large steel wheels for easy positioning Sturdy, one-piece handle Self-returning spring for ease and convenience Hydraulic Range: 4-5/8” Shipping eight: 97 lbs.

  • Page 2: Safety And General Information

    Before Use 1. Verify that the product and application are compatible, if in doubt call ATD Tools, Inc. Technical Service at 888-332-6419. 2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the product, its components and recognize the hazards associated with its use.

  • Page 3: Specifications

    SPECIFICATIONS Min. Max. Hyd. Extension Model Capacity Jack Size (L x W) Height Height Range Screw ATD-7328 22 Ton 22-7/8" x 12-1/2" 8-1/4" 22" 4-5/8" 3-7/8" (With adapter) Handle Handle Knob (release valve) Air Supply Inlet, 1/4 NPT Lift Control...

  • Page 4: Operation

    WARNING WARNING y, understand, and follow all instructions before operating this device. To avoid crushing and related injuries: Never work on, under or around a load supported only by hydraulic jack. y. Immediately after lifting, Always use adequately rated jack stands. support the vehicle with appropriate means.

  • Page 5: Maintenance

    MAINTENANCE Important: potential for sudden and immediate loss of load. e recommend premium hydraulic oil or equivalent. Adding/ Changing Oil d supply at least once per year. screw. NOTICE: l regulations. 3. Set jack in its upright, level position. 4. Fill with oil. Proper oil level is just below the rim of the 5.
  • Page 6 Air Hose Assembly 507-9-0064-013 Air Hose A09-6-3230-102 Axle A27-3-2050-109 Lift Control Valve A09-6-3124-104 Base Plate Air Coupler, Male, A09-6-1104-107 Adapter Holder A24-6-8101-107 1/4 NPT A07-6-1109-103 Adapter, 2-1/2" A07-3-3300-307 Release Valve Cable Figure 2 - Replacement Parts Illustration for Model ATD-7328...

  • Page 7: Year Limited Warranty

    DATE PURCHASED: INVOICE/RECEIPT NUMBER: _________________________________________ Your ATD-7328 is warranted for a period of 12 months from the original purchase date. ATD T product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced dur- ing normal use of the product.
