Features:
• High speed air motor quickly raises the load to the desired height
• Air control knob allows precise lifting and lowering
• Heat-treated extension screw allows for maximum lift height
• Heavy-duty wheels with bearings for easy movement
• Includes 2.4", 3.9" and .8" adapters.
• 3 handle positions allow for easy storage, movement and access to lift point
• Meets or exceeds ASME/PASE 2014 standards

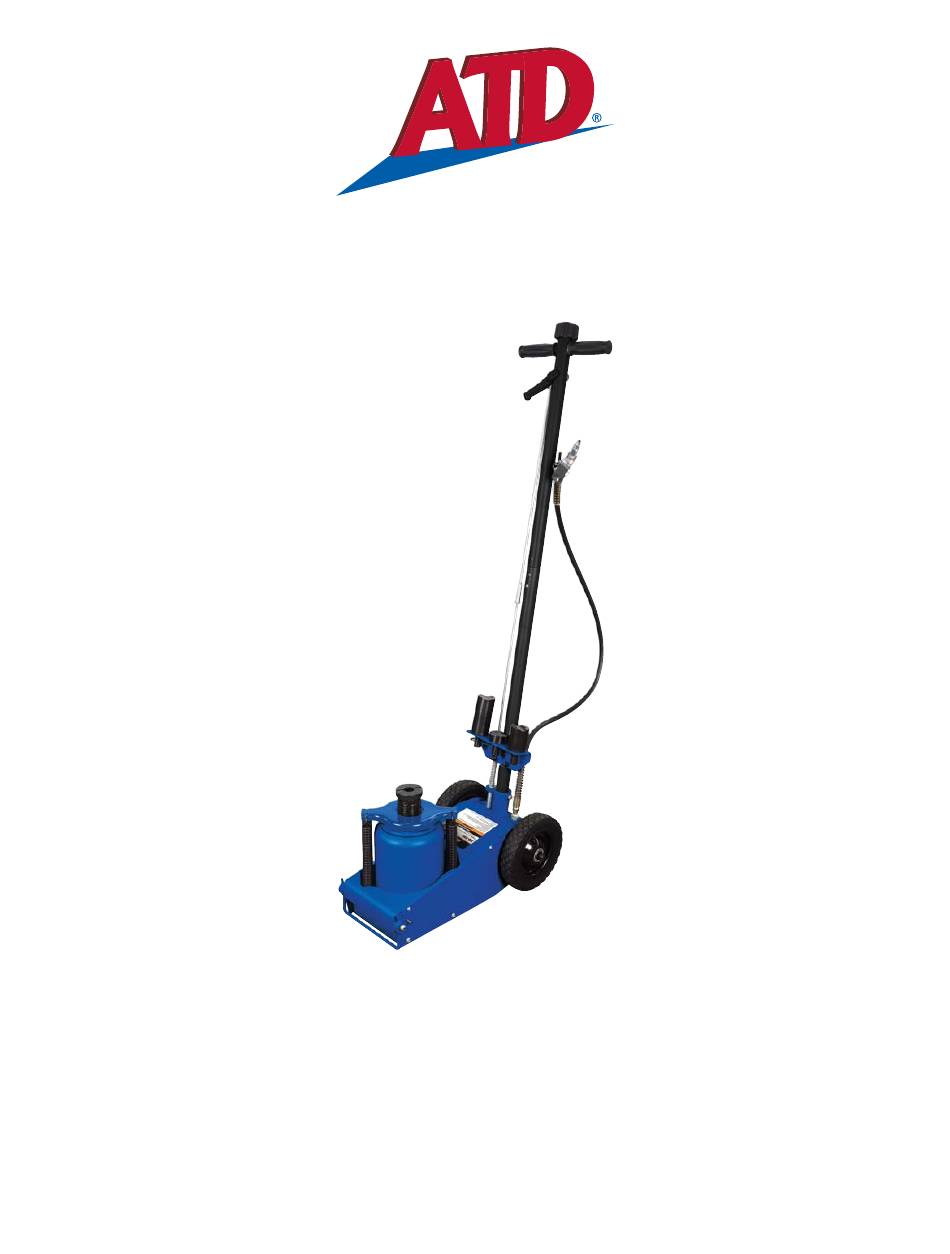

ATD-7354
50-Ton Air Axle Jack
Owner's Manual
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Specifications:
• Capacity (Tons): 50
• Minimum Height: 11.3"
• Maximum Height: 25.08"
• Ram Travel: 5.87"
• Extension Screw: 3.94"
• Handle Length: 48.4"
• Weight: 125.7 lbs.
ATD7354_rev_0425
Advertisement
Related Manuals for ATD Tools ATD-7354
Summary of Contents for ATD Tools ATD-7354
- Page 1 • 3 handle positions allow for easy storage, movement and access to lift point • Handle Length: 48.4” • Meets or exceeds ASME/PASE 2014 standards • Weight: 125.7 lbs. ATD7354_rev_0425 Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
- Page 2 The safety alert symbol is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or property damage. Read this manual and follow all Safety Rules and Operating Instructions before using this product. SAFETY AND GENERAL INFORMATION Save these instructions.
- Page 3 ASSEMBLY INSTRUCTIONS 1. Handle assembly: a) Assemble handle (22) by sliding top handle half into bottom handle half and securing with screw (S15). b) Tie rod (S11) threads into upper tie rod (S7) and into lower slotted rod (S12) and fasten with nuts (S8) c) Ensure R-Pin (S10) is in place near the bottom of the handle assembly.
- Page 4 Before Use 1. Verify that the product and application are compatible, if in doubt call ATD Tools, Inc. Technical Service at 636-327-9050. 2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the product, its components and recognize the hazards associated with its use.
- Page 5 WARNING WARNING • Study, understand, and follow all instructions before operating this device. • Do not exceed rated capacity. To avoid crushing and related injuries: • Use only on hard, level surface. • Never work on, under or around a load supported only by hydraulic jack.
- Page 6 MAINTENANCE Important: potential for sudden and immediate loss of load. We recommend Mobil DTE-13M or equivalent. Adding/ Changing Oil d supply at least once per year. plug. NOTICE: l regulations. 3. Set jack in its upright, level position. 4. Fill with oil. Proper oil level is just below the rim of the opening. Reinstall the oil filler plug. 5.
- Page 7 Please refer to the Parts drawing when ordering parts. Not all components of this kit are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give model number, serial number and description. Call your distributor for current pricing. Model ATD-7354 Exploded View 25 25...
- Page 8 PRT7354-01 Pump Exploded View...
- Page 9 PRT7354-P12 Air Motor Exploded View PRT7354-22 Handle Exploded View...
- Page 10 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT7354-01 PUMP ASSEMBLY W/AIR MOTOR 1 COVER PLATE PRT7354-02 HANDLE COUPLER BUSHINGING PRT7354-20 AIR VALVE ASSEMBLY SCREW PRT7354-21 AIR HOSE CONNECTING ROD PRT7354-22 HANDLE ASSEMBLY LEFT SIDE PLATE SADDLE SUPPORT BRACKET 1 RIGHT SIDE PLATE U-BOLT SCREW...
- Page 11 Your ATD-7354 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced dur- ing normal use of the product.
