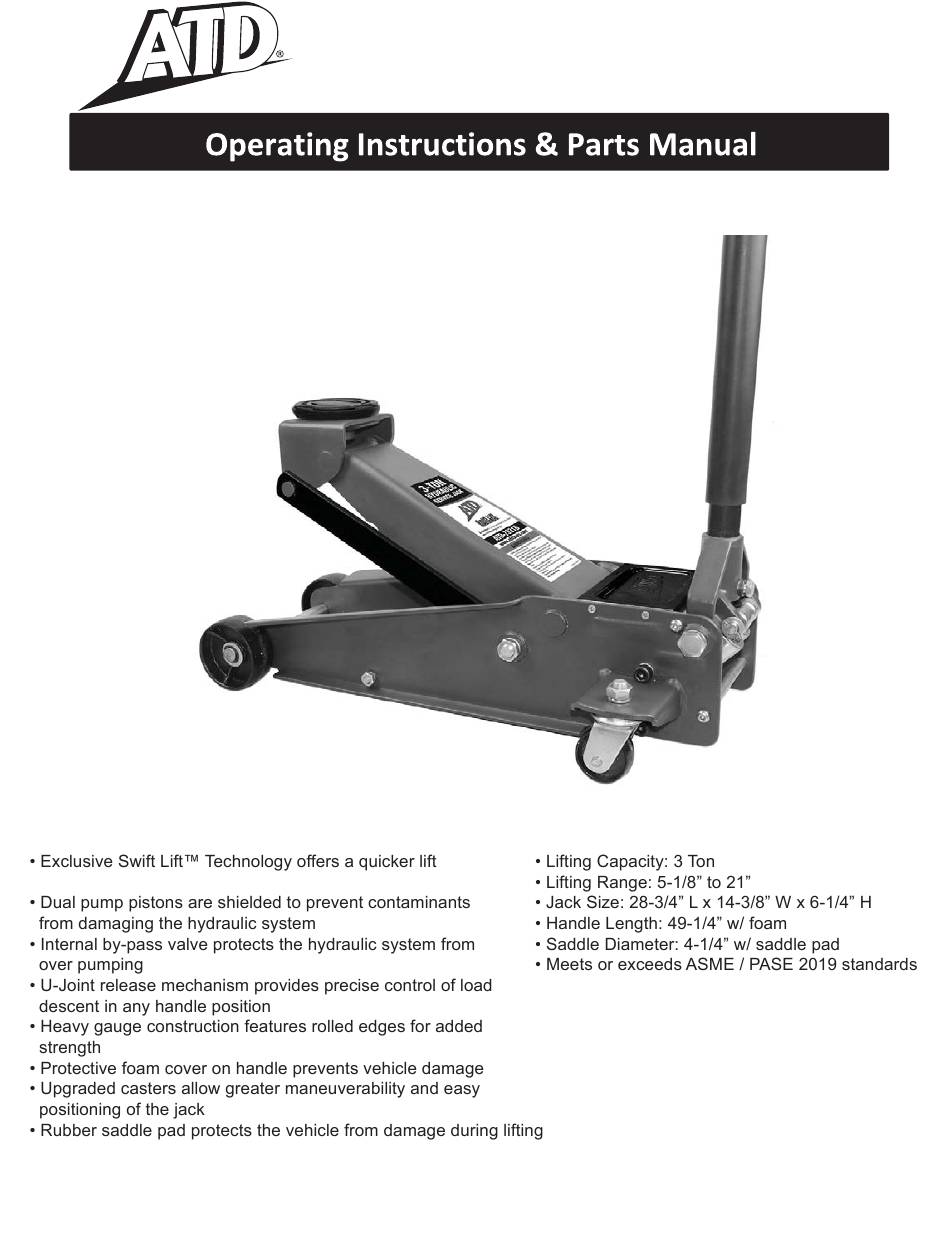

- Page 1 Model: ATD-7331B Capacity: 3 Ton 3 Ton Swift Lift™ Hydraulic Service Jack Features: Specifications: for professional performance Made in China to ATD Tools, Inc. Specifications ATD7331B_rev_0322 Visit us at www.atdtools.com...
- Page 2 IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE Actions to help prevent dangerous situations...
- Page 3 Capacity Min. Height Max Height Handle Overall Length Overall Width Saddle Shipping Length Diameter Weight 88.22 LBS 3 Ton 5-1/8 ” 21” 49-1/4” 28-3/4” 14-3/8” 4-1/4” Setup Assembly Lifting Lowering...
- Page 4 Maintenance Check and Refill Oil Lubrication and Cleaning Air Venting Procedures Damaged Equipment Alterations Attachments and Adapters...
- Page 5 Inspection Storage Troubleshooting...
- Page 6 Part NO. DESCRIPTION LYD3C-100 Front Wheel Assembly LYD3F.5 Saddle w/ Pad LYD2F-3 Return Springs LYD3G-101 Release Valve Stem LYD3N.5 Power Unit Assembly LYD3G-300 Handle Fork Assembly LYD3F-900 Rear Caster Assembly LYD3G-600 Handle Assembly w/ Foam * Items not iden ed by part number are not available for replacement.
-
Page 7: Year Limited Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES...
