ATD Tools ATD-7317 Owner's Manual

Low profile service jack
Hide thumbs Also See for ATD-7317:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

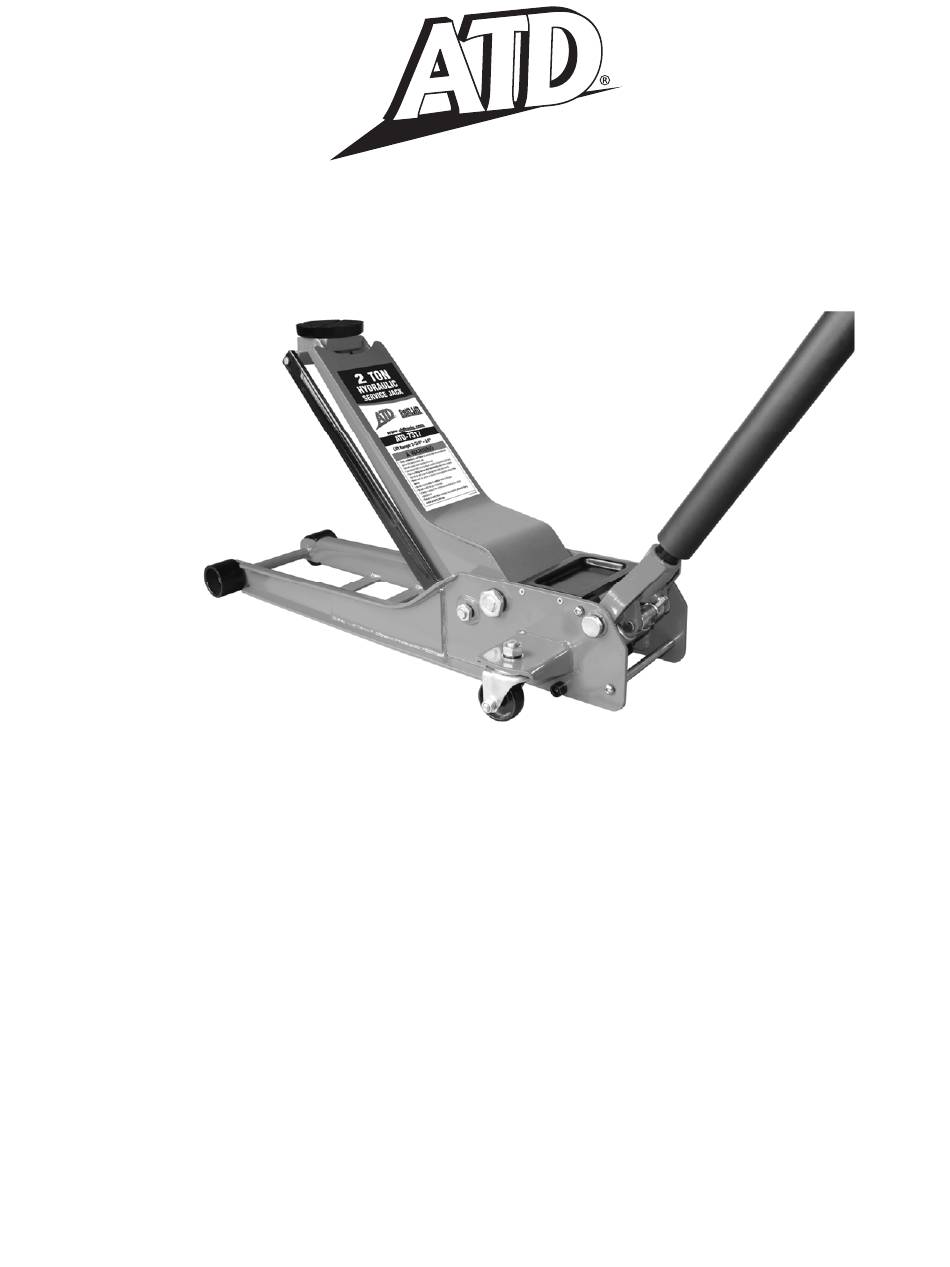

Low Profile Service Jack
Features:
• 2-3/4" low height and deep reach lift arm is ideal for use on low ground clearance vehicles
• ATD's exclusive Swift Lift™ Technology offers a quicker lift for professional performance
• Dual pump pistons are shielded to prevent contaminants from damaging the hydraulic system
• Internal by-pass valve protects the hydraulic system from over pumping
• U-Joint release mechanism provides precise control of load descent in any handle position
• Heavy gauge construction features rolled edges for added strength
• Protective foam cover on handle prevents vehicle damage
• Upgraded casters allow greater maneuverability and easy positioning of the jack
• Full cover rubber saddle pad protects the vehicle from damage during lifting
• Meets or exceeds ASME PASE 2019 standards
Specifications:
• Capacity: 2 Tons
• Min Height: 2-3/4"
• Max Height: 24"
• Handle Length: 49-1/4"
• Front Casters: 2-1/2" diameter x 2" width
• Saddle Diameter: 4" with full saddle pad
• Jack Size: 36" (L) x 15-1/8" (W) x 6-1/4" (H)
• Weight: 106 lbs.
ATD-7317
Owner's Manual
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
ATD7317_rev_0225
