Operating Instructions & Parts Manual
ATD-7325
'
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
ADVERTENCIA
r, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
seguridad deben estar comunicado en lengua del
operador antes del uso.
personales o materiales.
WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer,
Model
birth defects or other reproductive harm. Wash hands after handling.
Visit us at www.atdtools.com
SwiftLift™
Low Profile

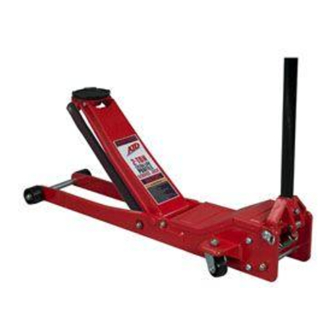

Service Jack
Capacity
2 Ton
WARNING
!
To avoid crushing and related injuries:
NEVER work on, under or around a
load supported only by a hydraulic
jack. ALWAYS use adequately rated
jack stands.
Printed in China
ATD7325_rev_0417
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ATD Tools SwiftLift ATD-7325
Summary of Contents for ATD Tools SwiftLift ATD-7325

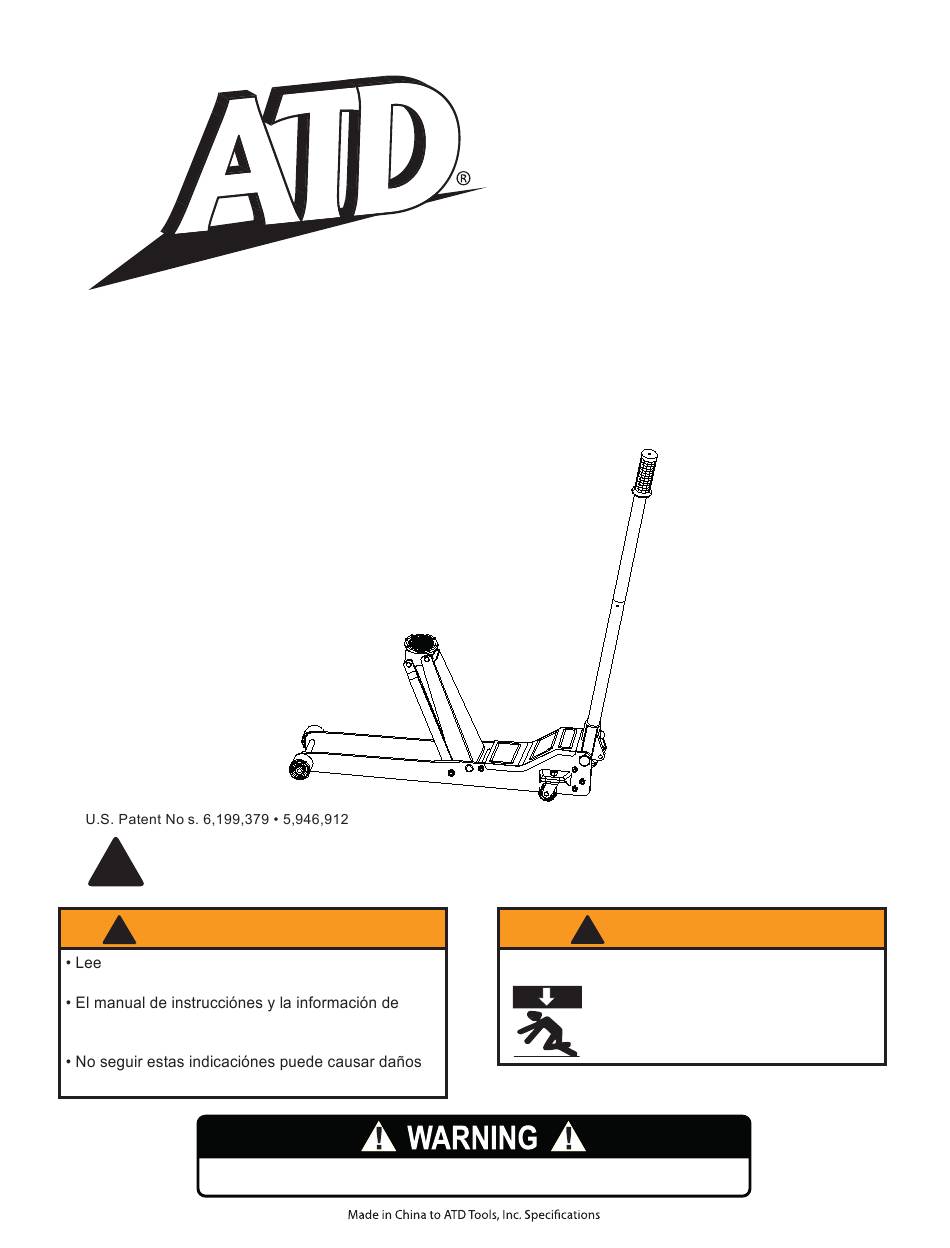

- Page 1 SwiftLift™ Low Profile Service Jack Operating Instructions & Parts Manual Capacity Model ATD-7325 2 Ton ’ This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING ADVERTENCIA To avoid crushing and related injuries:...
-
Page 2: Safety And General Information
SAFETY and GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack before using. The owner and/or operator of this equipment shall have an understanding of this jack and safe operating procedures before attempting to use. - Page 3 PREPARATION Assembly Insert handle into the handle sleeve. Tighten the bolt on handle sleeve to prevent accidental removal of handle while in use. Before Use 1. Verify that the product and application are compatible, if in doubt call Technical Service (888) 332-6419. 2.
- Page 4 WARNING WARNING all printed Do not To avoid Never a pair Do not and sober Lifting Only attachments and/or adapters supplied by the manufacturer shall be used. Lift only on area of the saddle under lift point. 5. Transfer the load NEVER use hydraulic jack as a stand alone device! ALWAYS transfer the lifted load IMMEDIATELY to a pair of appropriately rated jack stands.
-
Page 5: Maintenance
MAINTENANCE Important: Use only Never sudden and immediate loss of load. We recommend Mobil DTE 13M or equivalent. Adding oil 1. With saddle fully lowered set jack in its upright, level position. Locate and remove vent screw. will not raise to its advertised maximum height. Reinstall the vent screw. Changing oil 2. -
Page 6: Replacement Parts
REPLACEMENT PARTS Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor for current pricing. Replacement Parts Illustration for ATD-7325 Figure 2 - Replacement Parts Illustration for ATD-7325... - Page 7 Replacement Parts List for ATD-7325 Item Part No. Description Item Part No. Description G880-50005-0440 Saddle Pad G489-20007-0410 Left Handle Bolt G863-10003-0000 Saddle G489-20005-0410 Right handle Bolt QG86308-K02 Hydraulic Unit 1413-00020-204 Lock Washer QG72500-K03 Front Wheel Assembly G735-20005-0410 Torsion Spring QG48900-K04 Rear Caster Assembly 1405-00016-031 Washer...
-
Page 8: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, ATD Tools, Inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship, or which fails to conform to any implied warranty not excluded hereby.
