ATD Tools ATD-7331A Operating Instructions & Parts Manual

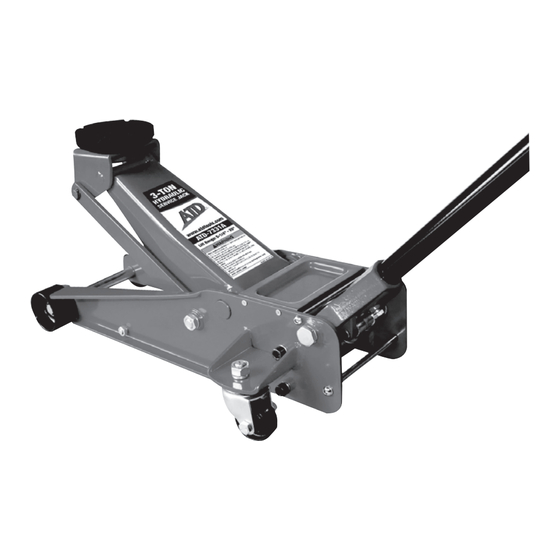

3-ton hydraulic service jack
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Opera ng Instruc ons & Parts Manual
3-Ton Hydraulic Service Jack
Capacity
Min. Height
3 Ton
5-1/4"
Contents:
Page: 1. Speci ca ons
2. Safety & Warning Informa on
3. & 4. Setup, Opera on & Preven ve Maintenance
5. Inspec on, Storage & Troubleshoo ng
6. Exploded View & Replaceable Part Numbers
7. Warranty Informa on
WARNING: This product may contain chemicals, including lead, known to the State of California
to cause cancer, birth defects or other reproductive harm. Wash hands after handling.
ATD-7331A
Max Height
Handle
Length
20"
50"
Made in China to ATD Tools, Inc. Speci cations
Visit us at www.atdtools.com
1
Model: ATD – 7331A
Overall
Overall
Length
Width
29-3/8"
14-1/4"
Capacity: 3 Ton
Saddle
Shipping
Diameter
Weight
5"
92 LB
ATD7331A_rev_0417

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD-7331A and is the answer not in the manual?

Questions and answers

Related Manuals for ATD Tools ATD-7331A

Summary of Contents for ATD Tools ATD-7331A

  • Page 1 WARNING: This product may contain chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. Made in China to ATD Tools, Inc. Speci cations Visit us at www.atdtools.com...

  • Page 2: Safety And Warning Information

    Model: ATD – 7331A Capacity: 3 Ton SAFETY & WARNING INFORMATION This is the safety no ca on symbol. Indicates a hazardous This symbol will no fy you of any situa on. If proper steps are poten al injury hazards. Please not followed, death or follow all instruc ons that follow this serious injury could result.
  • Page 3 Model: ATD – 7331A Capacity: 3 Ton SETUP, OPERATION & PREVENTIVE MAINTENANCE Setup Prior to each use, visual inspec on (See Pg. 5) shall be made to the device by checking for abnormal condi ons, such as cracked welds, leaks, and damaged, loose, or missing parts.

  • Page 4: Maintenance

    Model: ATD 7331A – Capacity: 3 Ton SETUP, OPERATION & PREVENTIVE MAINTENANCE (Cont.) Maintenance NOTICE: Use high grade hydraulic oil only. Never use brake uid, motor oil, transmission uid, turbine oil or any other uids. ISO-VG22 or equivalent hydraulic oil is recommended. Check and Refill Oil With the jack in the fully lowered, level posi on, if unit cover is provided, remove unit cover, then remove oil ller plug.

  • Page 5: Inspection, Storage & Troubleshooting

    Model: ATD 7331A – Capacity: 3 Ton INSPECTION, STORAGE & TROUBLESHOOTING Inspection Visual inspec on shall be made before each use of the device by checking for abnormal condi ons, such as cracked welds, leaks, and damaged, loose, or missing parts. Other inspec ons shall be made per product opera ng instruc ons.

  • Page 6: Exploded View & Replaceable Part Numbers

    Model: ATD 7331A – Capacity: 3 Ton EXPLODED VIEW & REPLACEABLE PART NUMBERS Item Part Number* Descrip on LYD3G-100A Front wheel assembly LYD3G-200A Handle Assembly w/ foam LYD2K.3 Power Unit Assembly LYD3G-300 Handle Fork Assembly LYD3F-103A Rear Caster Assembly LUDBI-3T-17 Handle foam only LYD3K-1 Saddle pad only...

  • Page 7: Warranty Information

    WARRANTY INFORMATION ONE YEAR LIMITED WARRANTY For a period of one (1) year from purchase date, ATD Tools, Inc. will repair or replace without charge, (at it’s option) your ATD product, if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.

  • Page 8: Preventive Maintenance Record Log

    – Model: ATD 7331A Capacity: 3 Ton PREVENTIVE MAINTENANCE RECORD LOG Date Maintenance Performed...
