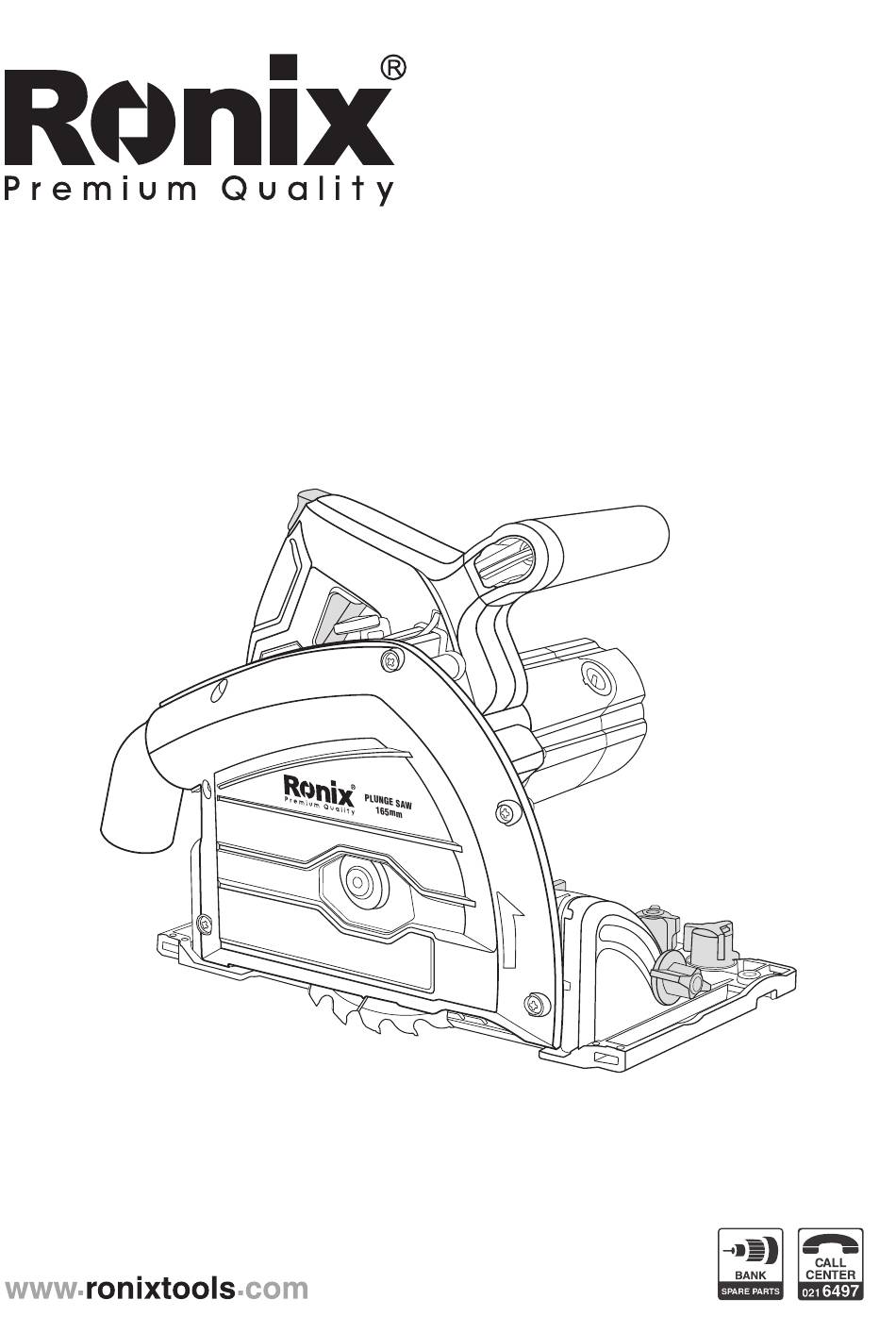

- Page 1 PLUNGE SAW 165mm 4350...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION 4350 Model Motor Type Brushed Motor Power 1200W Voltage 220-240V Frequency 50-60Hz No-Load Speed 6000RPM Surface Recommendation Wood Track Material Aluminum Track Dimensions 100×18.26×1.06cm Cutting Depth With Track At 90° / 45° 54mm /38mm Cutting Depth Without Track At 90° / 45°... -
Page 4: Part List
PART LIST Plunge lock Front handle button On/off switch Main handle Brush access Track fine adjust Bevel lock knob Base Dust extraction Blade outlet AINTENDED USE A plunge saw, sometimes referred to as a track saw, is a type of hand-held circular saw which slides on a rail during application. -
Page 5: Work Area Safety
instructions must be handed too. Retain this user’s manual and all other literature supplied with your tool for any future reference. Comply with all the safety information and the warnings on the tool. Be familiar with the controls and the proper use of the tool before attempting to use it and above all, make sure you know how to stop to use it in case of emergency. -
Page 6: Electrical Safety
which may ignite the dust or fumes. c- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY a- Power tool plugs must match the outlet. Never modify the plug in any way. - Page 7 Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
-
Page 8: Turning The Machine On/Off
power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. TURNING THE MACHINE ON/OFF Press the switch lock (1) and pull the trigger (2), the machine is on. Release the trigger, the machine is off. FITTING/CHANGING THE CUTTING DISC Move the mode selector to the blade change position. -
Page 9: Bevel Cutting
Depress the shaft lock button and use the hex key provided to remove the arbor bolt. Remove the blade. BEVEL CUTTING Loosen the front and rear bevel knobs (8). Adjust to the desired bevel angle 0°-90°cutting Lock the bevel knobs and begin cutting. DUST EXTRACTION Attach a vacuum pipe to the universal vacuum adaptor (17) to keep the work environment clear of dust. -
Page 10: Carbon Brushes
CARBON BRUSHES Remove and check the carbon brushes regularly. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Use a screwdriver to remove the brush holder caps (14). Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. -
Page 11: Troubleshooting
ANTI-KICKBACK This feature will prevent injury to the User if the saw unexpectedly kicks back. The anti-kickback is automatically engaged once the saw has been placed on the guide rail. If kickback does occur then check that the guide rail has not been permanently damaged. TROUBLESHOOTING Trouble Possible reason... - Page 12 The mains voltage is out Check the mains voltage Overload protection kicked Jammed disc in the Replace discs, reduce material (discs blunt, feed feed rate rate too high) The disc is spinning through themselves (if the Tighten the flange, clean flange is not fully tightened, the contact surfaces Spindle or discs has...
