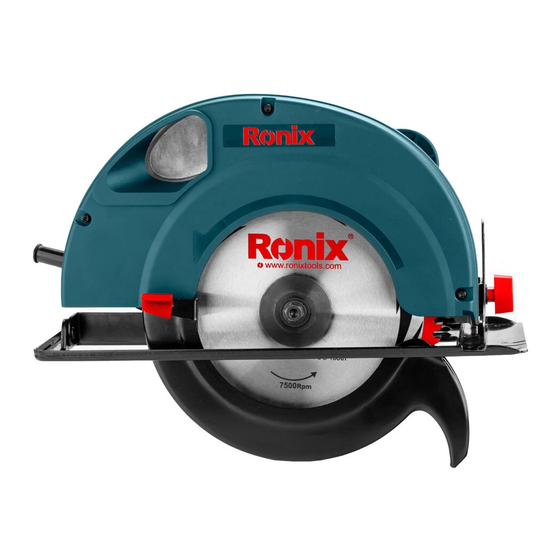

CIRCULAR SAW
4320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4320 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 4320

Summary of Contents for Ronix 4320

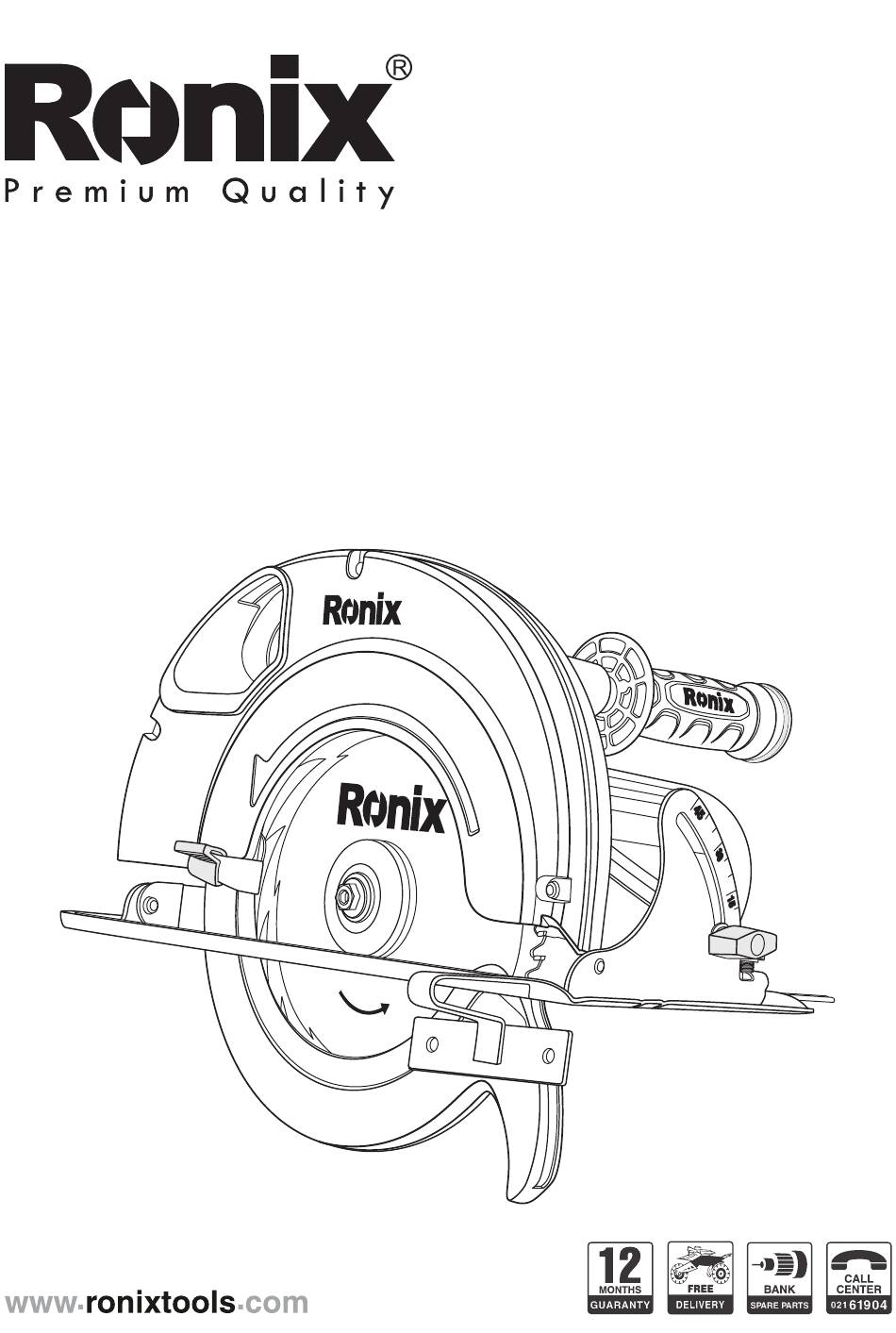

  • Page 1 CIRCULAR SAW 4320...

  • Page 2: Specification

    Saw Blade Diameter 235mm Max Cutting Depth at 90° 85mm Max Cutting Depth at 45° 58mm Weight Guide rail, Ronix-design side handle, 2 Includes pieces adjustable blade rings, Hex wrench, 235×2.4×30mm, 56T circular saw blade PART LIST Blode Upper Blode...

  • Page 3: Work Area

    below, may result in electric shock, fire and / or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA 1. keep your work area clean and well it. Cluttered benches and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquieds gases or dust.

  • Page 4: Personal Safety

    PERSONAL SAFETY 9. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 5 19. Store idle tools out of reach of children and other untrained persons. Tools are dangerous n the hands of untrained users. 20. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.
  • Page 6 Do not reach underneath the work. The guard can not protect you from the blade below the work. Do not attempt to remove cut material when blade is moving. CAUTION: Blades coast after turn off. Wait until blade stops before grasping cut material. 2.
  • Page 7 shock the operator. 8. When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance for blade binding. 9. Always use blades with correct size and shape (diamond vs. round) arbor holes.
  • Page 8 pinching and kickback. When cutting operation requires the resting of the saw on the workpiece, the saw should be rested on the larger portion and the smaller piece cut off To avoid kickback, do support board or panel near the cut. Do not support board or panel away from the cut. Do not use dull or damaged blade.
  • Page 9 support, and supply cord routing 16. Place the wider portion of the saw base on that part of the workpiece which is solidly supported, not on the section that will fall off when the cut is made. If the workpiece is short or small, clamp it down. DO NOT TRY TO HOLD SHORT PIECES BY HAND! 17.
  • Page 10 • Be sure the blade is installed with teeth pointing up at the front of the tool. • Use only the Ronix wrench to install or remove the blade. 1. To remove the blade, Press the Lock shaft so that it cannot revolve, then use the Hex wrench to loosen the hex bolt counterclockwise.

  • Page 11: Adjusting Depth Of Cut

    4) Hex Wrench Notice: When changing blade, make sure to also clean upper and lower blade guards of accumulated sawdust. Such efforts do not, however, re- place the need to check lower guard operation before each use. Adjusting Bevel cutting Loosen the clamping screw on the bevel scale plate on the front of the base.
  • Page 12 SAW SIGHTING(FIG4) For straight cuts, align the Right groove on the front of the base plate with your cutting line, For 45°bevel cuts, align the Left groove with it. Fig 4 SWITCH CAUTION: Before plugging in the tool, always double check the shaft lock in the “off” position.

  • Page 13: Replacing Carbon Brushes

    Fig 6 EFFECTIVE AND SAFE FOR SAWING OPERATION Always hold the tool firmly with one hand on housing and the other on the side handle, turn the tool on and them apply the blade to the workpiece. 1. Put the tool’s Base plate on the workpiece, Let the blade don’t touch the workpiece,you don’t saw equably the workpiece until the machine get to the maximum speed from staring.
  • Page 14 If the tool is not working well , ask your local Ronix service center for repair. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Ronix Authorized or Factory service centers, always using Ronix replacement parts. USER MANUAL...
