Summary of Contents for Ronix 5901

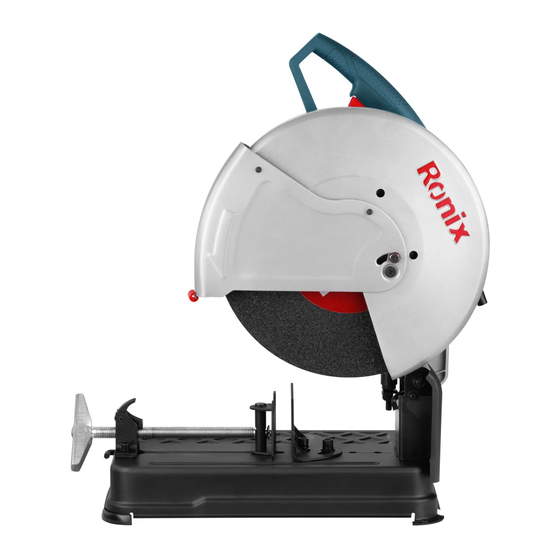

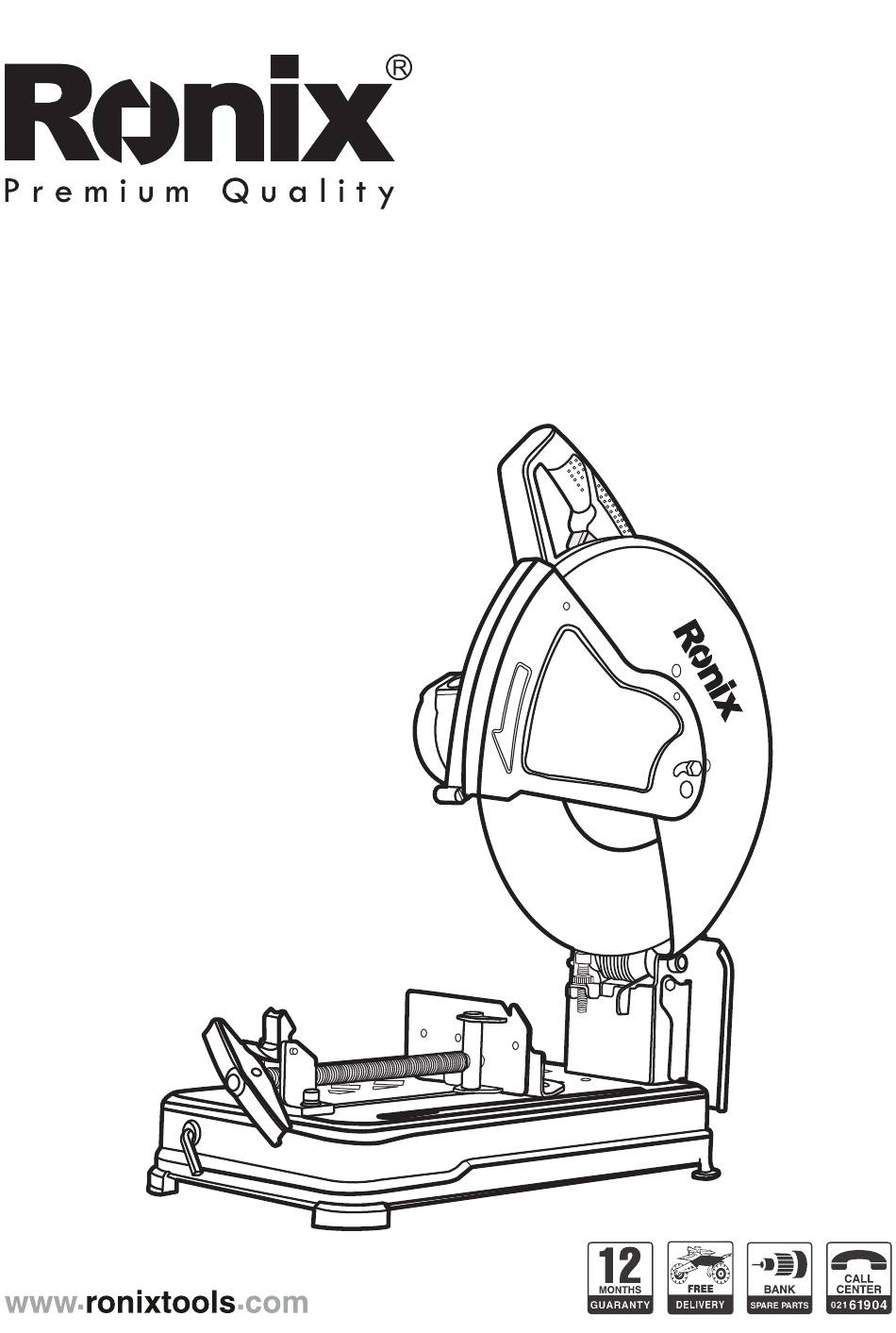

- Page 1 CUT OFF SAW 5901...
-
Page 2: Specification
SPECIFICATION Model 5901 Power 2300W Voltage 220V Frequency 50Hz No load speed 4000RPM Blade size 355mm Round Steel 130mm Square Steel 120mm Max Cutting capacity Rectangle Steel 120X130mm Angle Steel 140X140mm Net weight 17Kg PART LIST Movable Fixed Guard Safe Guard... -
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and /or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated power tool. SAVE THESE INSTRUCTIONS WORK AREA - Keep work area clean and well lit. -
Page 4: Personal Safety
a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power too while you are tired or under the influence of drugs, alcohol or medication. - Page 5 the rate for which it was designed. - Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. - Disconnect the plug from the power source before making any adjustment, changing accessories, or storing power tools.
- Page 6 SAFETY - Read these instructions before operating this power tool. They contain information which will enable you to use the tool safely and help protect those around you. - A copy of this instruction leaflet should be kept with the tool so that you can refer to it quickly when undertaking work.
-
Page 7: Operation
be put under the other end of long project. - Please check the guard apparatus is normal and effective or not before operating the machine. - After switching on, please wait for the cutting wheel rotates with full speed, and then begin to cut the project. - Wear gloves and eye protector to avoid rebound and sustain an injury, don’t wear too loose clothes and the clothes which easy to be reeled and tore. - Page 8 should be no less than 355mm. Wrench put in the base-wrench, can be removed when required. Safe Guard Small Flange Self-Locking pin Spanner When disassemble the cutting wheel, firstly pull up the movable safety guard and press the self-locking pin to fix the cutting wheel; unscrew the hex bolt counterclockwise with wrench;...
- Page 9 When the cutting wheel is wearing out, it can also be used economically and efficiently by adjusting the height of hexagonal bolts to control the cutting angle. Ruler Sheer Hexagonal Bolt Clamp Sheet THE INTERSPACES BETWEEN THE PLIERS PLATE AND GRADUATION PLATE The fixed distance is 0-170MM (0-6 11/16 inch) between plier’s plate and graduation plate, if needing wider interspaces, please adjust the interspaces...
- Page 10 cutting angle (0-45°), and screw the quick-lock device tightly (Picture 4). When the scale plate is set between 35-225mm or 70-260 mm, it cannot perform diagonal cutting work. FIXING WORK PIECE Turn the handle counter clockwise to lose the movable vice jaw move the fast nut upward so that the handle can be quickly pulled out or pushed forward.
- Page 11 Only when cutting small object and the object can be fully clamping may the cushion be used in this manner. Putting a cushion underneath that is narrower than the object, the cutting wheel will be used more economically and efficiently. Washer When cutting long object, put two nonflammable cushions under two ends of it, and make the object to keep in level with the pan base, ensure the...
- Page 12 continuously please press the locking button at the time of pressing the switch trigger completely, the machine will be under working condition. If need to release the locking, press the switch trigger again. Switch Locking Trigger Button OPERATION Hold the handle firmly, start up the machine until the cutting wheels reach enough rotational speed and then press the cutting wheel slowly.
-
Page 13: Maintenance And Care
When the machine appears big sparks or doesn’t rotate, the carbon brush is worn and less than 5MM, it needs to be replaced. Please contact RONIX SERVICE after sales service centers. PRACTICAL TIP - Before assembling or disassembling the cutting wheel, do confirm the machine is under switch off condition, and the plug is drawn out. -
Page 14: Servicing And Repairs
- Excessive sparking generally indicates the presence of dirt in the motor or abnormal wear on the carbons. - In case of electric or mechanical failure, send the tool to a RONIX SERVICE authorized service center for repair. SERVICING AND REPAIRS If servicing is required, contact one of our listed service centers.
