Summary of Contents for Ronix 8904-40V

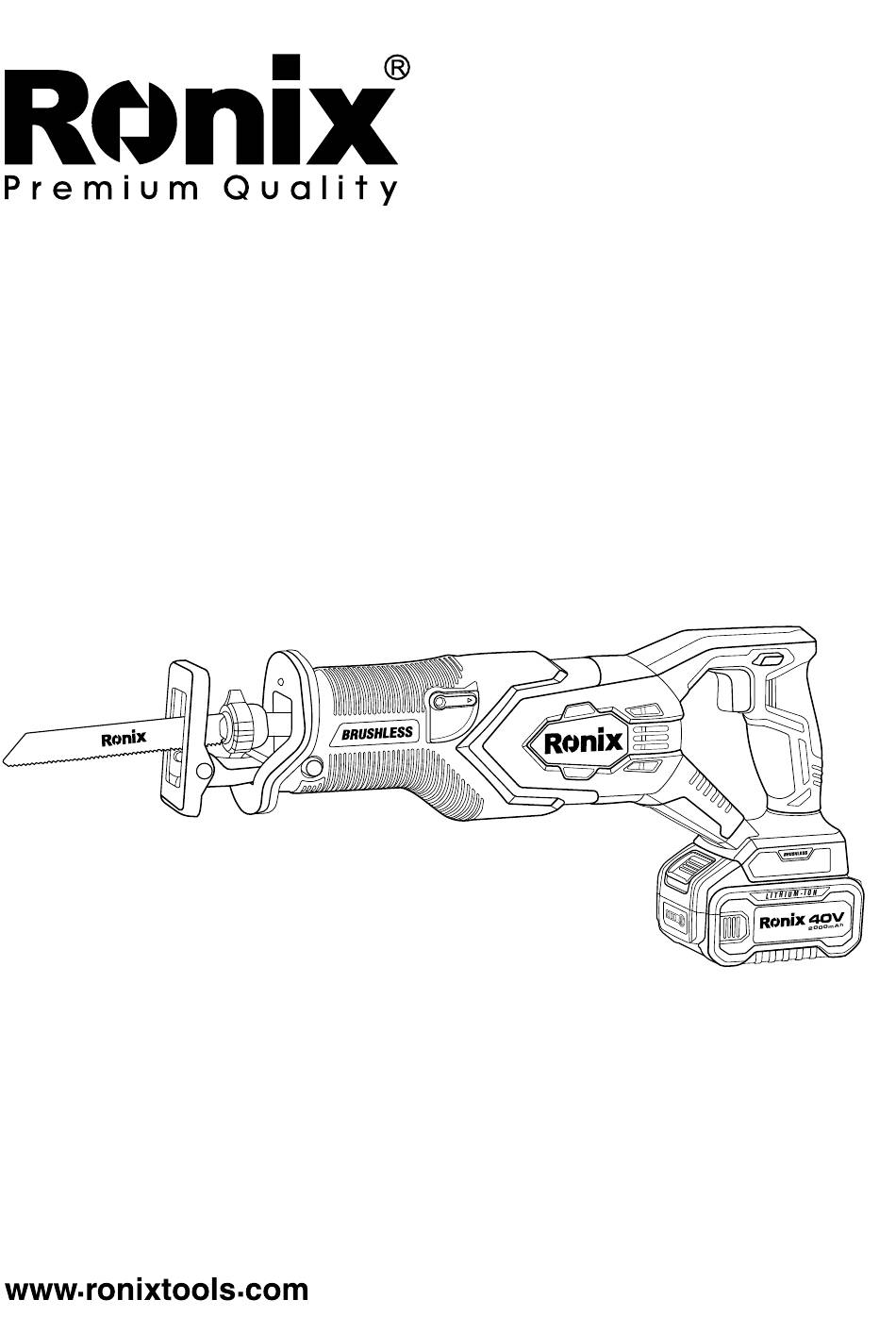

- Page 1 40V BRUSHLESS CORDLESS RECIPROCATING SAW KIT 8904-40V...
-
Page 3: Specification
SPECIFICATION 8904-40V Model Motor Type Brushless Battery Voltage Battery Chemistry Lithium-ion Battery Capacity 2000mAh No-Load Speed 0-3000SPM Wood: 150 mm Cutting Depth Soft Metal: 10 mm Weight 2.93Kg(With 1pc Battery) Packaging 2pcs Battery Packs 1pc Charger Accessories 1pc Metal Saw Blade... -
Page 4: Parts List
PARTS LIST Switch Trigger Functional Blade Adjusting Lever Lamp Lock off Button Handle Shoe Battery Release Button Blade Clamp Lever Shoe Adjusting Lever INTENDED USE The tool is intended for sawing wood, plastic and ferrous materials. NOISE The typical A-weighted noise level determined according to EN62841: Sound pressure level (LpA) : 85.5 dB (A) Sound power level (LWA) : 93.5 dB (A) Uncertainty (K) : 5 dB(A) -
Page 5: General Power Tool Safety Warnings
NOTE The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another. WARNING The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used. -
Page 6: Electrical Safety
3- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. plugs and matching outlets will reduce risk of electric shock. - Page 7 8- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. POWER TOOL USE AND CARE 1- Do not force the power tool. Use the correct power tool for your application.
- Page 8 accidents. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Page 9 MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE 1- Before using battery cartridge, read all instructions and cautionary markings on battery charger, battery, and product using battery. 2- Do not disassemble battery cartridge.
-
Page 10: Functional Description
11- Follow your local regulations relating to disposal of battery. TIPS FOR MAINTAINING MAXIMUM BATTERY LIFE 1- Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power. 2- Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. - Page 11 1. Button 2. Battery cartridge Fig.1 To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place.
-
Page 12: Switch Action
SWITCH ACTION Indicator lamps Remaining Capacity Lighted 66% to 100% 33% to 66% 0% to 33% CAUTION Before installing the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. -
Page 13: Adjusting The Shoe
CAUTION Do not look in the light or see the source of light directly. Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out after releasing the switch trigger. NOTE Use a dry cloth to wipe the dirt off the lens of the lamp. - Page 14 INSTALLING OR REMOVING THE RECIPRO SAW BLADE CAUTION Always clean out all chips or foreign matter adhering to the blade and around the blade clamp. Failure to do so may cause tightening of the blade, resulting in a serious injury. To install the recipro saw blade, always make sure that the blade clamp lever (part of the blade clamp sleeve) is in released position on the insulation cover before inserting the recipro saw blade.
- Page 15 CAUTION If you do not insert the recipro saw blade deep enough, the recipro saw blade may be ejected unexpectedly during operation. This can be extremely dangerous. To remove the recipro saw blade, rotate the blade clamp lever in the direction of the arrow fully.
-
Page 16: Operation
cartridge from the tool before installing or removing the recipro saw blade. OPERATION CAUTION against the workpiece during operation. If the shoe is removed or held away from the workpiece during operation, strong vibration and/or twisting will be produced, causing the blade to snap dangerously. CAUTION Always wear gloves to protect your hands from hot flying chips when cutting metals. - Page 18 Ronix GmbH Lyoner Str. 36 60528 Frankfurt am Main Tel: +49 69 310 900 66 www.ronixtools.com...
