Ronix 4312 User Manual

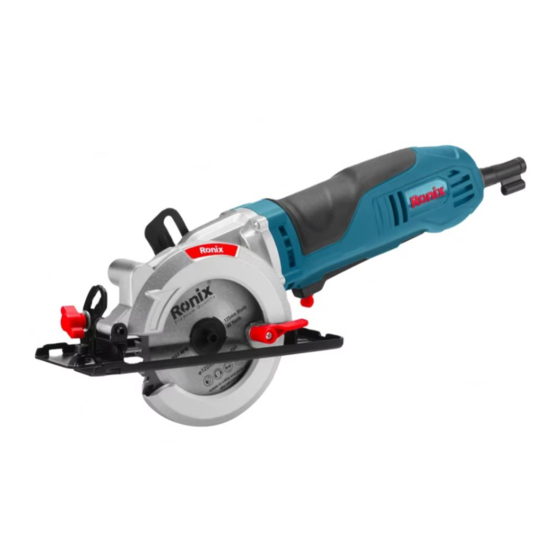

Circular saw 125mm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
mm
CIRCULAR SAW 125
4312
www.ronixtools.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4312 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 4312

Summary of Contents for Ronix 4312

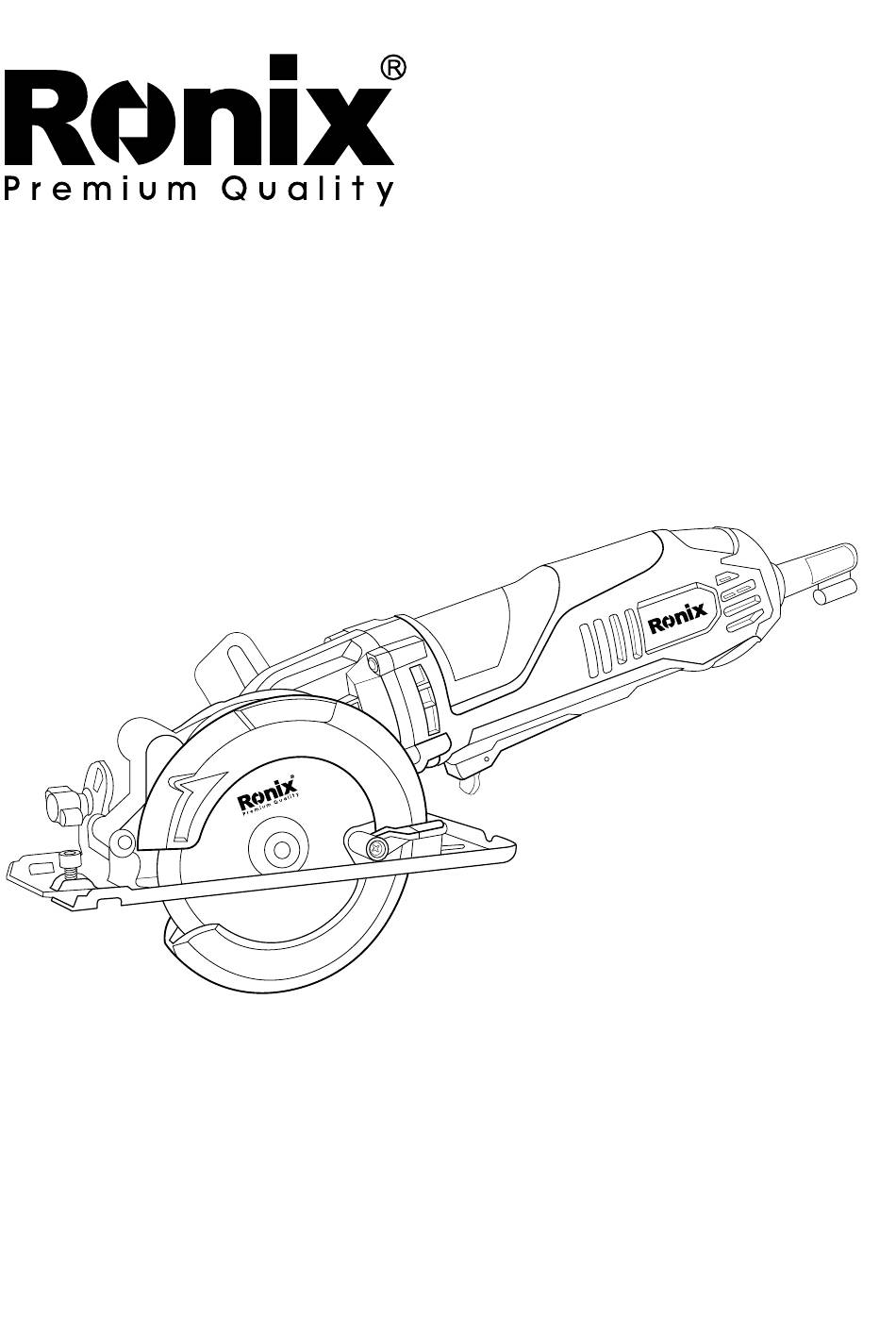

  • Page 1 CIRCULAR SAW 125 4312 www.ronixtools.com...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION 4312 Model Power 710W Voltage 220-240V Frequency 50-60Hz No-load Speed 4500RPM φ Max Cutting Blade Size 125mm 0°: 48mm Max Cutting Capacity (0°/45°) 45°: 32mm Weight 2.68Kg 1pc depth gauge,1pc hex Includes key,1pc wood cutting blade USER MANUAL...

  • Page 4: Part List

    PART LIST CIRCULAR SAW 125...

  • Page 5: General Power Tool Safety Warnings

    1- Hex wrench rack 2- Main handle 3- Safety lock off switch 4- ON/OFF switch 5- Base plate 6- Saw blade retractable safety guard control knob 7- Saw blade retractable safety guard 8- Hex nut 9- Parallel guide locking bolt 10- Spindle lock button 11- Depth locking knob 12- Cutting depth scale...

  • Page 6: Work Area Safety

    - The term “power tool” in the warnings refers to your mains-operated (corded) power tools or battery operated (cordless) power tool. WORK AREA SAFETY - Keep work area clean and well lit. Cluttered or dark areas invite accidents. - Don’t operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.

  • Page 7: Personal Safety

    or less is always recommended. PERSONAL SAFETY - Stay alert, watch what you are doing and use common sense when operating a power tool. Don’t use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

  • Page 8: Circular Saw Safety Warnings

    - Don’t use the power tool if the switch doesn’t turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. - Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 9 the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control. e- Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
  • Page 10 SAFETY INSTRUCTIONS FOR PLUNGE CUT CIRCULAR SAWS a- Check guard for proper closing before each use. Do not operate the saw if guard does not move freely and enclose the blade instantly. Never clamp or tie the guard with the blade exposed. If saw is accidentally dropped, guard may be bent.

  • Page 11: Operating Structure

    SYMBOLS To reduce risk of injury, user must read instruction manual before using the tool. Wear eye protection Wear ear protection Wear dust mask OPERATING STRUCTURE NOTE: Before using the tools, read the instruction book carefully. 1- ON/OFF SWITCH (SEE FIG.A) - Check the correct function of the base plate before plugging in the power cord.
  • Page 12 Always ensure that the tools are in good condition, correctly mounted and able to turn freely. The trial run should be at last 30 sec. FIG.A 2- USING THE PARALLEL GUIDE (SEE FIG.B &C) The parallel guide can be used for making cuts parallel to a work piece edge at a chosen distance.
  • Page 13 Do not use reducers or adapters. The direction-of-rotation arrow on blade and machine should be same. To change the blade, switch off and unplug form power supply. Press the spindle-lock button in deep and hold it in this position continuously, insert the Hex key provided into the blade bolt, turn the spindle slightly with the free hand until it locks into position, remove the blade bolt, washer, outer flange and blade form spindle.
  • Page 14 4- ADJUSTING THE CUTTING DEPTH (SEE FIG.G) For optimal quality of cutting, the saw blade should not extend more than 3 mm below the workpiece. To adjust the cutting depth (0-45mm), please follow below steps: 1- Loosen the depth locking knob by hand. 2- Raise/lower the locking knob and set the blade to the required depth - as shown on the cutting depth scale.

  • Page 15: Working Hints For Your Tool

    to reduce saw vibration, blade jumping, or blade breakage FIG.H 6- Dust collecting (See Fig.l) Use of dust collection can reduce dust-related hazards. To prevent personal injuries, make sure to connect a suitable vacuum cleaner to the dust extraction port by means of the dust collecting system adaptor.

  • Page 16: Troubleshooting

    strenuous cutting loads. Protect saw blades against impact and shock. Excessive feed significantly reduces the performance capability of the machine and reduces the service life of the saw blade. Sawing performance and cutting quality depend essentially on the condition and the tooth count of the saw blade. Therefore, use only sharp saw blades that are suited for the material to be worked.
  • Page 17 Allow the saw blade to reach Blade kicks back when Blade is not spinning fast enough. full speed prior to beginning a beginning a cut. cut in the material. SERVICE - Have your power tool serviced by qualified repair person using only identical replacement parts.
