User Guide

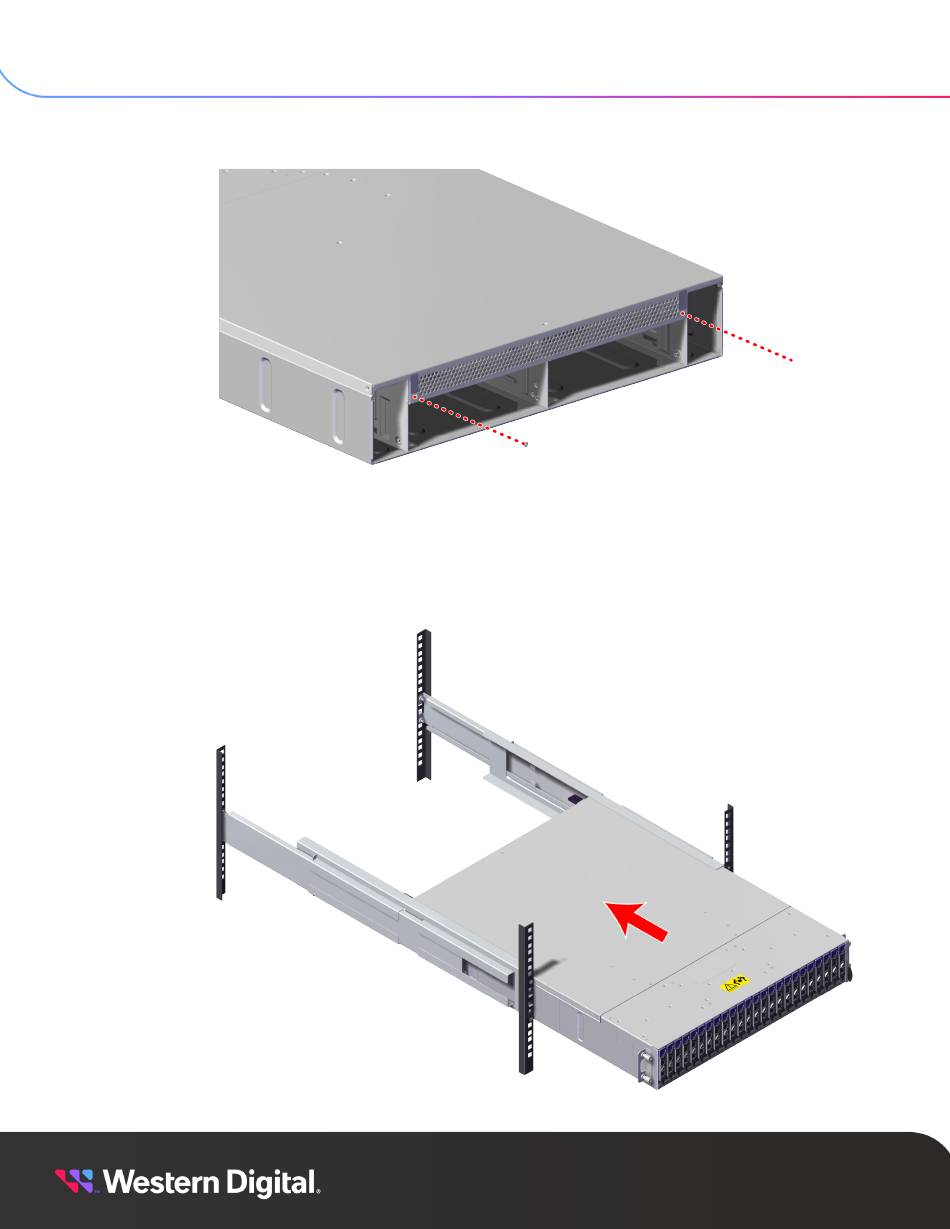

Figure 97: Rear Chassis Cover Screw Locations
Step 22 :
Install the Chassis onto the rack mounted rails.
a. Carefully slide the Chassis onto the rails until the rack mounts are flush with the mounts on
the rails.
Figure 98: Chassis Installation
3. Support
3.6 System Fan Replacement
80
