User Guide

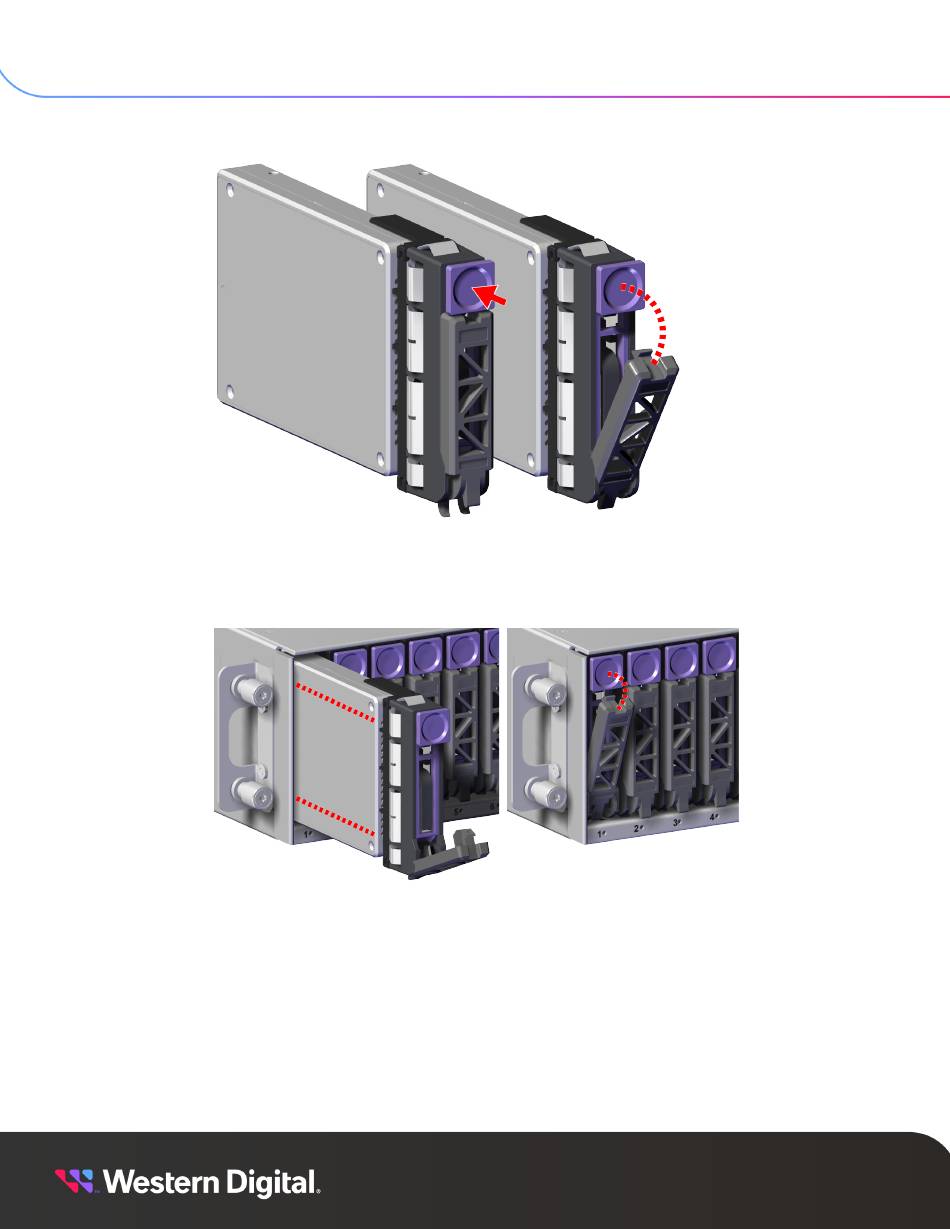

Figure 127: Drive Assembly Release Operation
b. From the front of the rack, gently slide the Drive Assembly into the Drive Assembly slot until
the release handle lifts up slightly, indicating that it is engaged with the Chassis.
Figure 128: Drive Assembly Latch Engaged
c. Rotate the release handle up and press it into the Drive Assembly to secure it into the slot.
When it is fully installed the user will feel the handle snap and lock into place.
3. Support
3.7 Chassis Replacement
97
