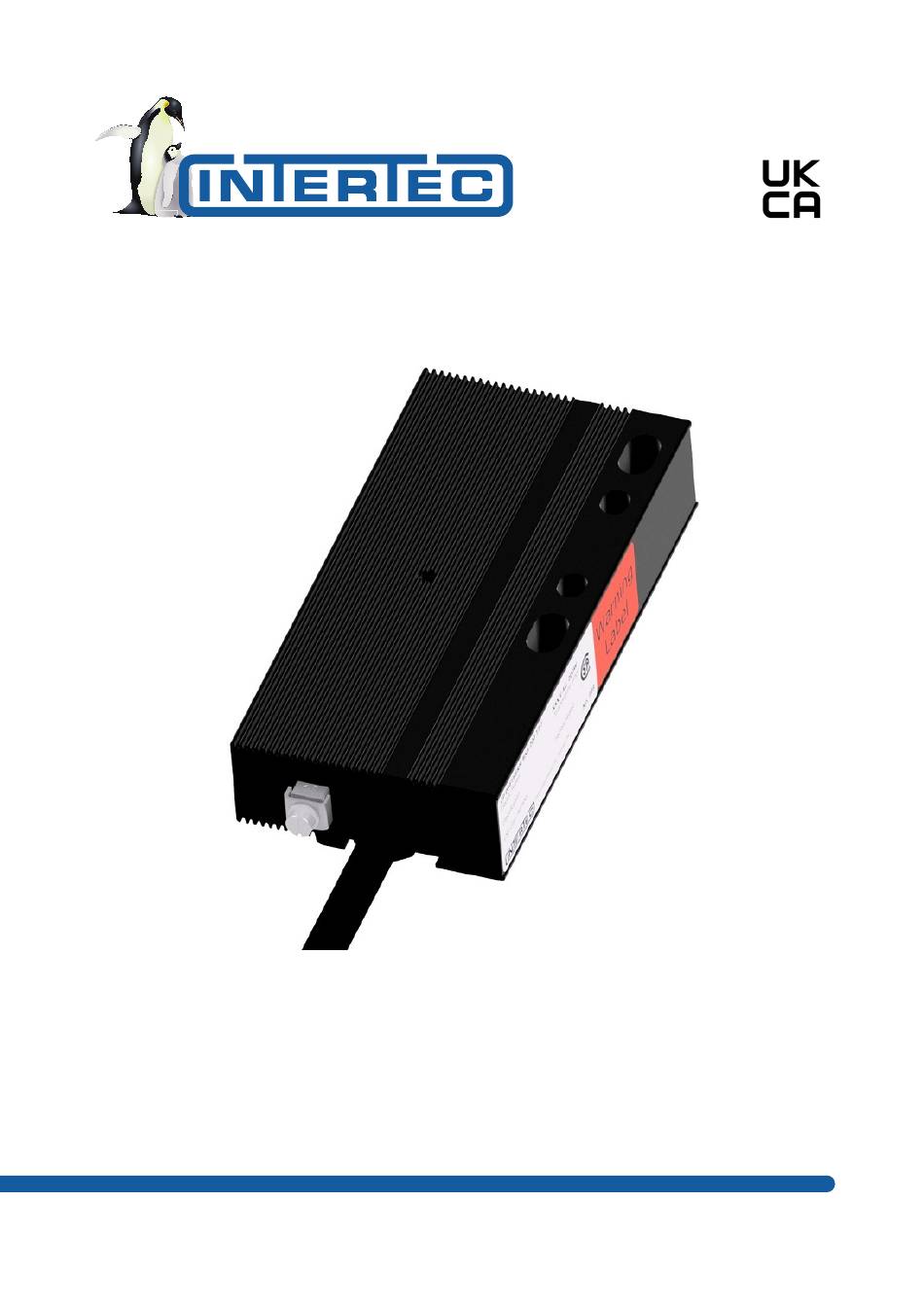

- Page 1 Operating Instructions SL DSETHERM DG.A HOM2616111243en-1 • 17/08/2023...
-
Page 2: Table Of Contents
www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information.............................. 3 5 Technical Data ................................ 4 6 Installation ................................ 4 7 Connection................................ 5 8 Commissioning .............................. 6 9 Maintenance................................ 6 10 Troubleshooting .............................. -
Page 3: General
Operating Instructions SL DSETHERM DG.A General DANGER These operating instructions describe the safe and proper way to work with the device. The safety DANGER information and instructions given as well as the local This sign is warning about an extremely hazardous... -
Page 4: Technical Data
Operating Instructions SL DSETHERM DG.A Technical Data Temperature class Protection class IP66/IP68 1bar/30min Thermostat Rated voltage max. 265 V AC Permitted operating voltage max. 275 V AC Rated current (in max. 10 A compliance with VDE 0298) Ambient temperature - 60 to + 60°C... -
Page 5: Connection
Operating Instructions SL DSETHERM DG.A mA are preferable. In an IT system, an insulation monitoring device needs to be used which switches off the supply as soon as the insulation resistance is no greater than 50 Ω per Volt of the rated voltage (refer also to DIN EN 60079-14;... -
Page 6: Commissioning
Operating Instructions SL DSETHERM DG.A Junction box Junction box Option AM Option AM Heater Heater bn=brown bu=blue ye/gn=yellow/green bk=black gy=grey bn=brown bl=blue ye/gn=yellow/green bk=black gy=grey Illustration 4: SL...THERM with TAE Illustration 5: SL...THERM with TS Commissioning If the heater is installed in accordance with the notes in the Installation [}Page ... -
Page 7: Troubleshooting
Operating Instructions SL DSETHERM DG.A Functional and safety test intervals can be freely Or return your old device to us for professional disposal. selected by the operator in accordance with the For further information, please contact INTERTEC-Hess applicable regulations. -
Page 8: 14 Further Information And Service
Operating Instructions SL DSETHERM DG.A Dipl.-Ing. Martin Hess, Managing Director Further information and service If the information contained in this instruction manual should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further information and service.
