Operating Instruction
SL MICROTHERM DNA
HOM235356171en-8 • 11/06/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL MICROTHERM DNA and is the answer not in the manual?

Questions and answers

Summary of Contents for Intertec Data Systems SL MICROTHERM DNA

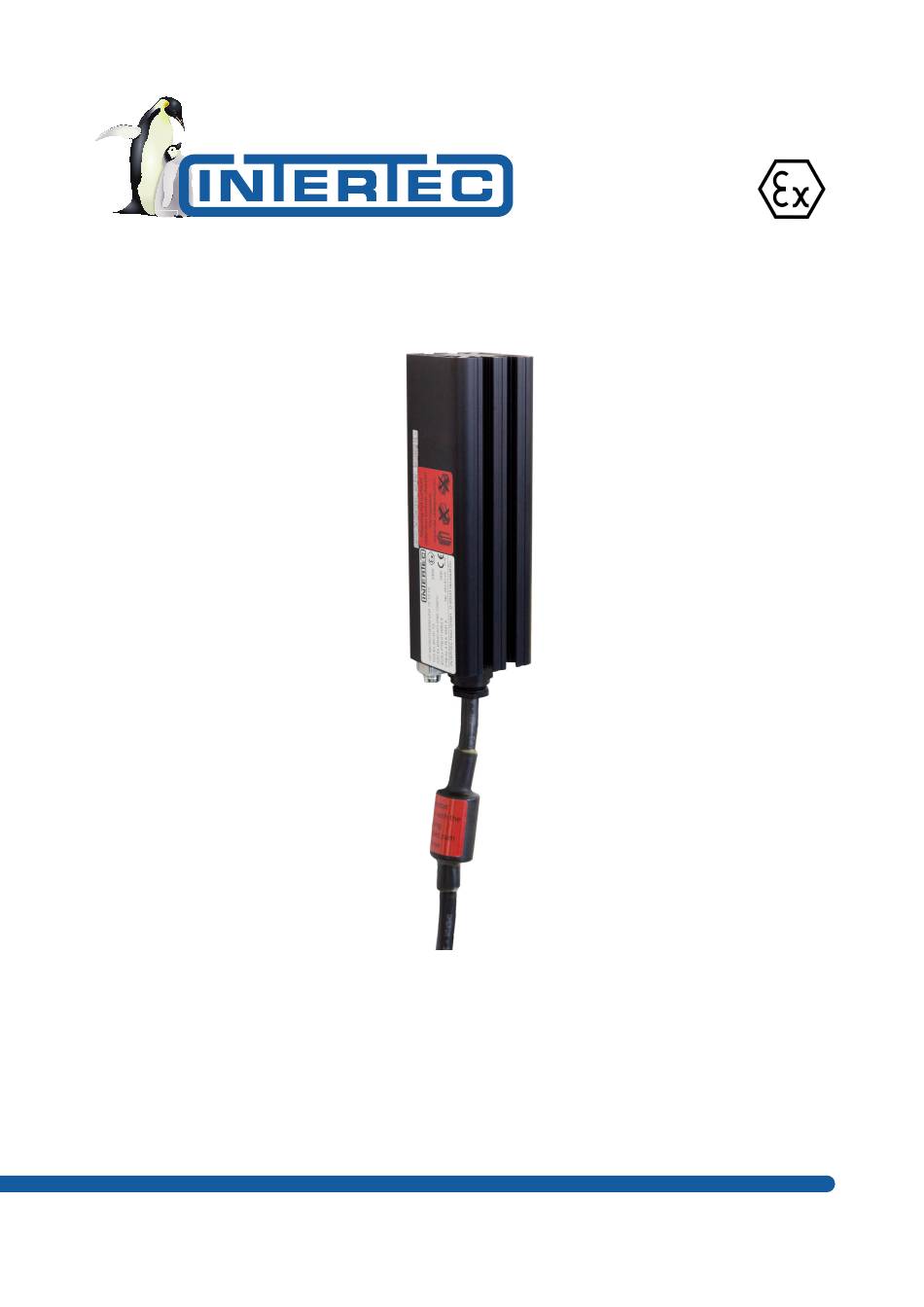

  • Page 1 Operating Instruction SL MICROTHERM DNA HOM235356171en-8 • 11/06/2024...
  • Page 2: Table Of Contents

    www.intertec.info Table of contents 1 General .................................. 3 2 Use...................................  3 3 Specific conditions for use ...........................  3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................  4 8 Installation ................................
  • Page 3: General

    Operating Instructions SL MICROTHERM DNA 1. The connecting lead shall be installed to provide for General permanent wiring and adequate protection against These operating instructions describe the safe and mechanical damage. The operating instructions shall proper way to work with the device. The safety...
  • Page 4: Safety Information

    Operating Instructions SL MICROTHERM DNA Piece Description NOTICE Heating unit Angle bracket made of flat steel NOTE Packet of screws containing the following: It is essential to pay attention to this safety advice as you Hexagon bolts M 6x12 may otherwise incur material damage.
  • Page 5: Connection

    Operating Instructions SL MICROTHERM DNA NOTICE Carefully remove When removing from the packaging and during transport, the connection line must not be stressed or bent. Modifications and repairs may only be carried out by the manufacturer. Free convection may not be impeded. You will find the minimum distances and installation position in the following figure.
  • Page 6 Operating Instructions SL MICROTHERM DNA Additional equipotential bonding is required. The terminal block designated for this purpose has the ground sign. In a TT or TN system, a residual current device (RCD) must be used where the measured triggering residual current does not exceed 100 mA.
  • Page 7 Operating Instructions SL MICROTHERM DNA CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. The heating circuit is permanently disconnected by a Junction box temperature melt fuse which can't be reset if these installation instructions are not adhered to.
  • Page 8 Operating Instructions SL MICROTHERM DNA If the heater fails, check the installation. Carry out a EU declaration of conformity continuity test on the heating circuit. Pay attention to the manufacturer, INTERTEC-Hess GmbH, connection diagram switching point Raffineriestrasse 8, 93333 Neustadt/Donau, Germany,...
  • Page 9 Operating Instructions SL MICROTHERM DNA 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and services. will find more...
