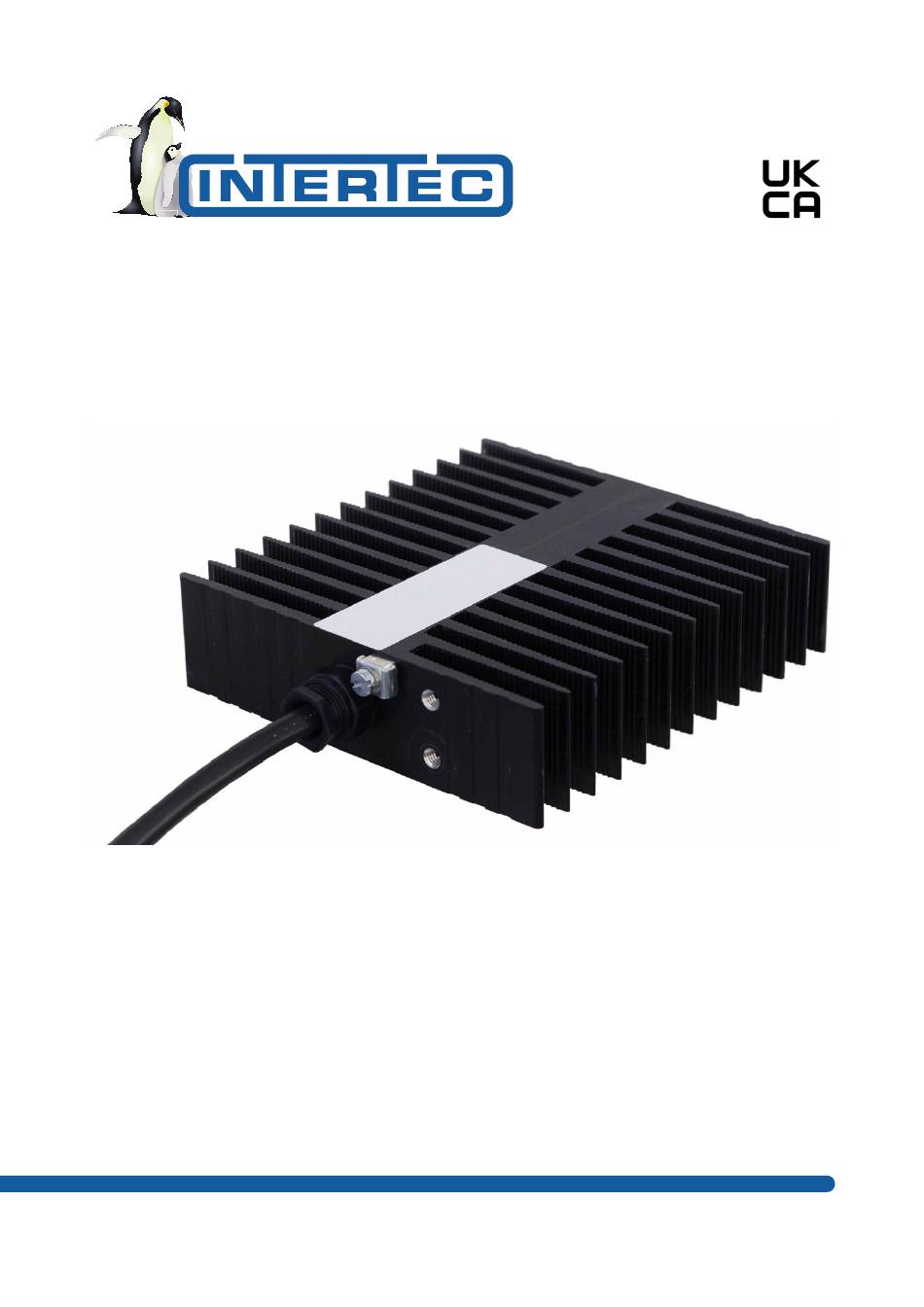

- Page 1 Operating Instructions SL HORIZOTHERM DGNA HOM2616154123en-2 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Specific conditions for use ........................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................ 4 8 Installation ................................ 5 9 Connection................................ -
Page 3: General
Operating Instructions SL HORIZOTHERM DGNA 1. The connecting lead shall be installed to provide for General permanent wiring and adequate protection against These operating instructions describe the safe and mechanical damage. The operating instructions shall proper way to work with the device. The safety... -
Page 4: Safety Information
Operating Instructions SL HORIZOTHERM DGNA Piece Description NOTICE Heating unit Angle bracket made of flat steel NOTE Packet of screws containing the following: It is essential to pay attention to this safety advice as you M 6x12 hexagon bolts may otherwise incur material damage. -
Page 5: Installation
Operating Instructions SL HORIZOTHERM DGNA Temperature class Thermostat Rated output Rated voltage/Operating voltage Year of manufacture Illustration 1: Example: SL HORIZOTHERM DGNA 100 T3 40 TS30 label Installation Illustration 2: Installation example of HORIZOTHERM with TAE and TS and clearance horizontal NOTICE... -
Page 6: Connection
Operating Instructions SL HORIZOTHERM DGNA Connection INFO The device may only be connected up and secured by a trained person, taking into account the "rated voltage" and "rated current" specified on the nameplate. Junction box Where operating voltage = measured voltage (rated voltage), then the heater is at its rated output. -
Page 7: Maintenance
Operating Instructions SL HORIZOTHERM DGNA CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. The heating circuit is permanently disconnected by a Junction box temperature melt fuse which can't be reset if these installation instructions are not adhered to. -
Page 8: 15 Declaration Of Conformity
Operating Instructions SL HORIZOTHERM DGNA If the heater fails, check the installation. Carry out a Declaration of conformity continuity test on the heating circuit. Pay attention to the manufacturer, INTERTEC-Hess GmbH, connection diagram switching point Raffineriestrasse 8, 93333 Neustadt/Donau, Germany,... - Page 9 Operating Instructions SL HORIZOTHERM DGNA INTERTEC-Hess GmbH Raffineriestr. 8 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and services.
