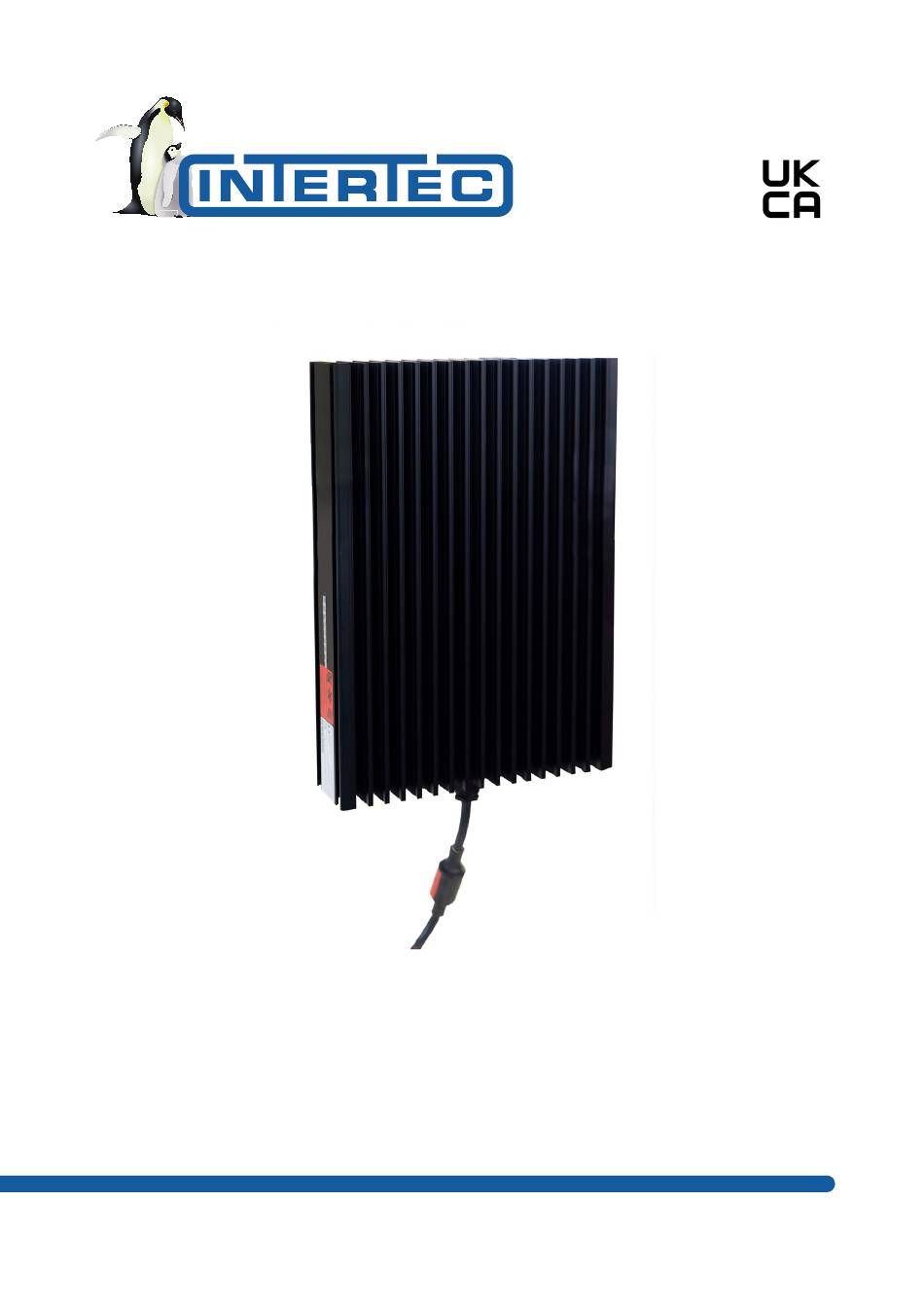

- Page 1 Operating Instructions SL MEGATHERM DG.A HOM2616175755en-2 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Specific conditions for use ........................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information.............................. 4 6 Installation accessories............................ 4 7 Technical Data ................................ 4 8 Installation ................................ 5 9 Connection................................ -
Page 3: General
Operating Instructions SL MEGATHERM DG.A 1. The connecting lead shall be installed to provide for General permanent wiring and adequate protection against These operating instructions describe the safe and mechanical damage. The operating instructions shall proper way to work with the device. The safety... -
Page 4: Safety Information
Operating Instructions SL MEGATHERM DG.A Piece Name NOTICE Heating unit slide nut/screw plate M6 with spring NOTE M 6x45 cheese-head screws with hex socket It is essential to pay attention to this safety advice as you may otherwise incur material damage. -
Page 5: Installation
Operating Instructions SL MEGATHERM DG.A Temperature class Thermostat Rated output Rated voltage/Operating voltage Year of manufacture Illustration 1: Example: SL MEGATHERM DGTA 300 T3 TS10 label Installation NOTICE Carefully remove When removing from the packaging and during transport, the connection line must not be stressed or bent. - Page 6 Operating Instructions SL MEGATHERM DG.A as short-circuit protection. When using a heater without integrated thermostat, the fuse protection can be selected according to the cross-section of the supply cable. Additional equipotential bonding is required. The terminal block designated for this purpose has the ground sign.
- Page 7 Operating Instructions SL MEGATHERM DG.A CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. The heating circuit is permanently disconnected by a Junction box temperature melt fuse which can't be reset if these installation instructions are not adhered to.
-
Page 8: 15 Declaration Of Conformity
Operating Instructions SL MEGATHERM DG.A If the heater fails, check the installation. Carry out a Declaration of conformity continuity test on the heating circuit. Pay attention to the manufacturer, INTERTEC-Hess GmbH, connection diagram switching point Raffineriestrasse 8, 93333 Neustadt/Donau, Germany,... - Page 9 Operating Instructions SL MEGATHERM DG.A INTERTEC-Hess GmbH Raffineriestr. 8 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and services.
