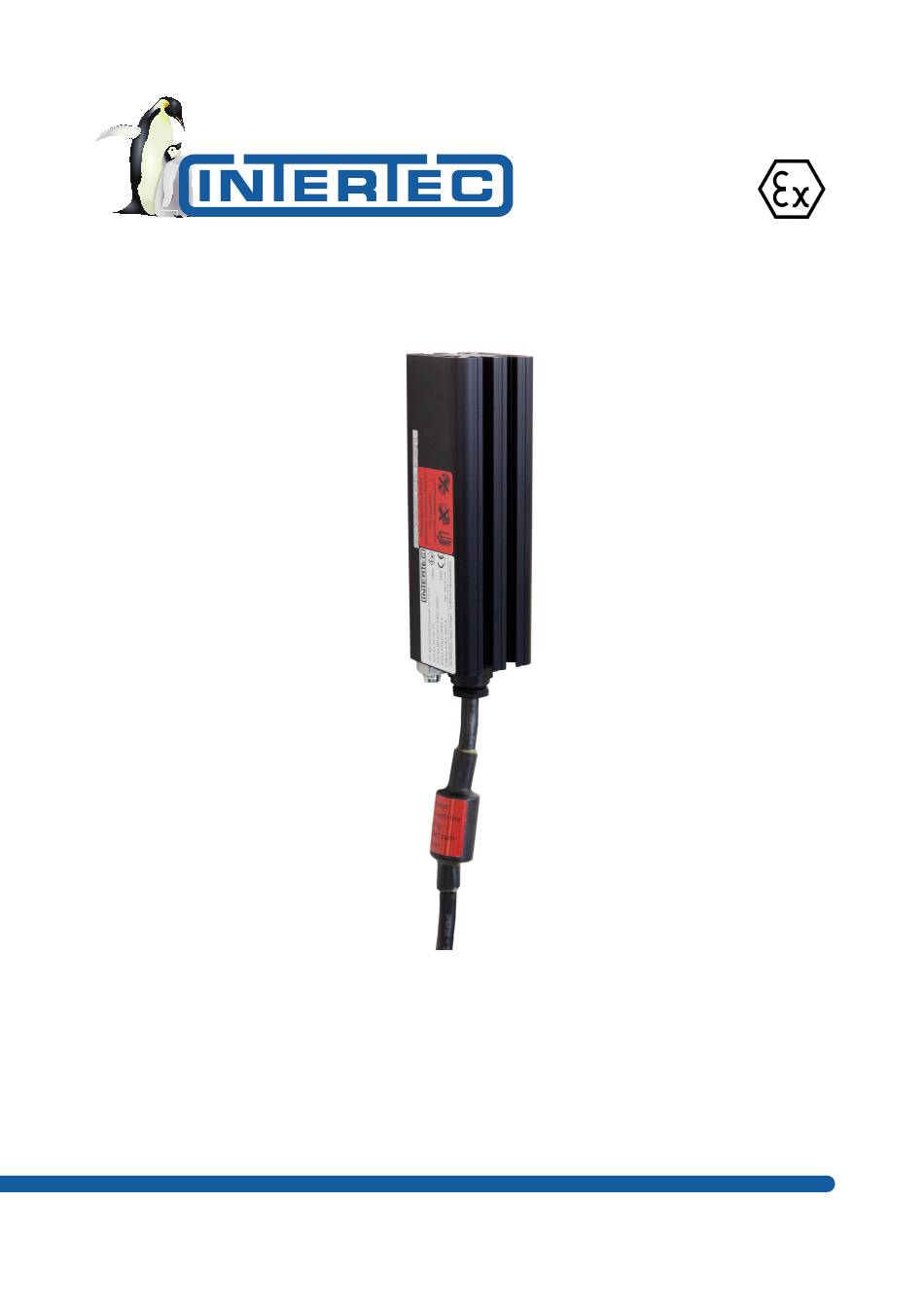

- Page 1 Operating Instruction SL MICROTHERM DNA HOM235356171Ien-6 • 03/02/2020...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information .............................. 3 5 Installation accessories ............................ 4 6 Technical Data ................................ 4 7 Installation................................ 4 8 Connection................................ -
Page 3: General
Operating Instructions SL MICROTHERM DNA General DANGER These operating instructions describe the safe and proper way to work with the device. The safety informa- DANGER tion and instructions given as well as the local accident This sign is warning about an extremely hazardous situ-... -
Page 4: Installation Accessories
Operating Instructions SL MICROTHERM DNA Material Seawater-proof alu- CAUTION minium, black anodized Mean Time Before Failure 50.000 h Risk of burns from a hot surface Storage temperature - 60 to + 80°C Attainable highest temperatures: Profile type "N" Height x 155 x 50 x 50 - Max. -
Page 5: Connection
Operating Instructions SL MICROTHERM DNA In a TT or TN system, a residual current device (RCD) must be used where the measured triggering residual current does not exceed 100 mA. Residual current devices with a measured triggering residual current of 30 mA are preferable. -
Page 6: Commissioning
Operating Instructions SL MICROTHERM DNA Junction Junction box Option AM Option AM Heater Heater bn=brown bu=blue ye/gn=yellow/green bk=black gy=grey bn=brown bl=blue ye/gn=yellow/green bk=black gy=grey Illustration 3: SL...THERM with TAE Illustration 4: SL...THERM with TS Commissioning If the heater is installed in accordance with the notes in the Installation [}Page ... -
Page 7: 14 Eu Declaration Of Conformity
Operating Instructions SL MICROTHERM DNA Functional and safety test intervals can be freely selec- NOTICE ted by the operator in accordance with the applicable regulations. Environmental damage may be caused if dis- Repairs may only be carried out by the manufacturer in posed of incorrectly! the factory. -
Page 8: 15 Further Information And Service
Operating Instructions SL MICROTHERM DNA Dipl.-Ing. Martin Hess, Managing Director Further information and service If the information contained in this instruction manual should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further in- formation and service.
