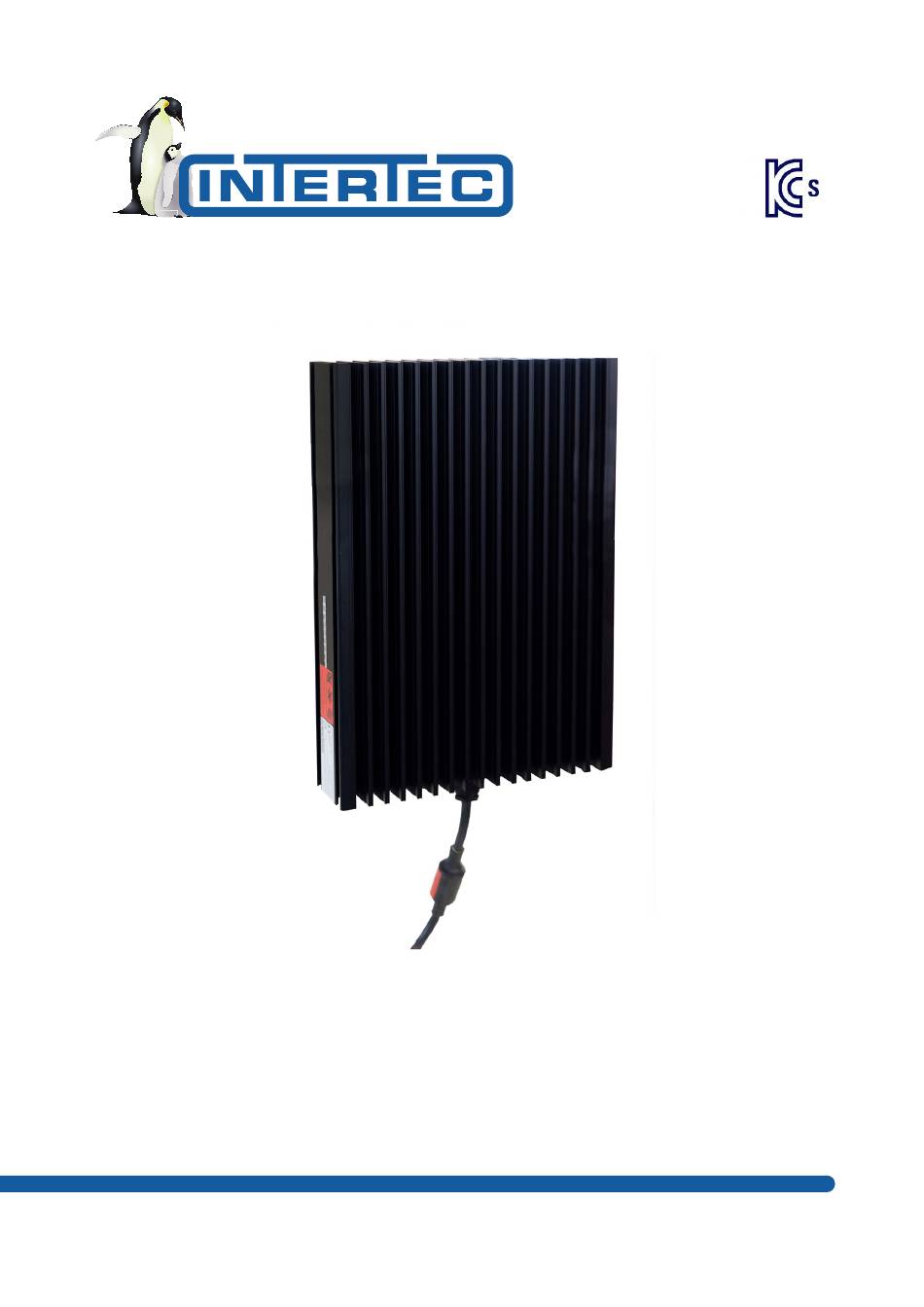

- Page 1 Operating Instructions SL MEGATHERM DE.A HOM180577931en-4 • 13/06/2024...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information.............................. 3 5 Installation accessories............................ 4 6 Technical Data ................................ 4 7 Installation ................................ 4 8 Connection................................ 5 9 Commissioning .............................. -
Page 3: General
Operating Instructions SL MEGATHERM DE.A The safety information warns the user about risks and General provide information on how risks can be avoided. These operating instructions describe the safe and Safety information can be found at the start of the proper way to work with the device. -
Page 4: Installation Accessories
Operating Instructions SL MEGATHERM DE.A Rated current (in max 10 A CAUTION compliance with VDE 0298) Ambient temperature - 60 to + 60°C Risk of injury at the rib ends Max. permitted operating - 60 to + 80°C The sharp edges on the heating ribs may cause injury if temperature handled incorrectly. -
Page 5: Connection
Operating Instructions SL MEGATHERM DE.A To ensure operational safety, the heater must operate Connection under temperature conditions which will NOT exceed the trigger temperature of the limiter. INFO The operating temperatures must be adhered to. The device may only be connected up and secured by a The connection cable must be permanently installed up trained person, taking into account the "rated voltage"... -
Page 6: Commissioning
Operating Instructions SL MEGATHERM DE.A Junction box Junction box Heater Heater bn=brown bu=blue ye/gn=yellow/green bn=brown bl=blue ye/gn=yellow/green Illustration 3: SL ..THERM with TAE Illustration 4: SL ..THERM with TS Check heater and all mounting parts for tight fit. Check heater, supply lines, any thermostats and junction boxes for safety-relevant damage. - Page 7 Operating Instructions SL MEGATHERM DE.A If the heater fails, check the installation. Carry out a CAUTION continuity test on the heating circuit. Pay attention to the connection diagram switching point Sufficient heat dissipation must be ensured. thermostat! Unauthorized covers must be removed as otherwise there is the risk of the heater overheating.
-
Page 8: 14 Declaration Of Conformity
Operating Instructions SL MEGATHERM DE.A Germany Declaration of Conformity Phone: +49 9445 9532-0 manufacturer, INTERTEC-Hess GmbH, Raffineriestrasse 8, 93333 Neustadt/Donau, Germany, e-mail: info@intertec.info hereby declares in sole responsibility that the product Website: www.intertec.info Product / Type designation: Warranty SL MEGATHERM...
