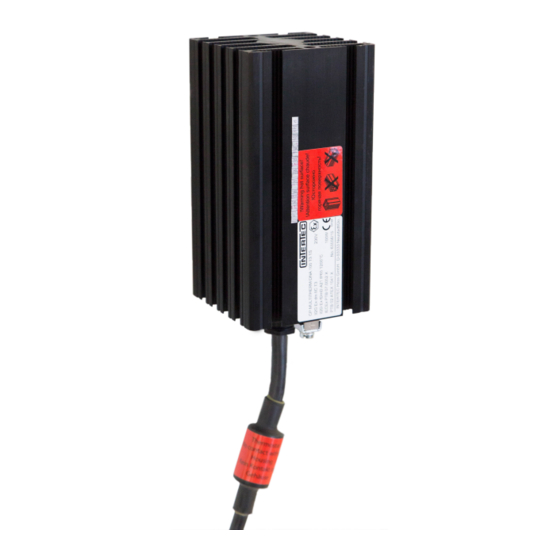

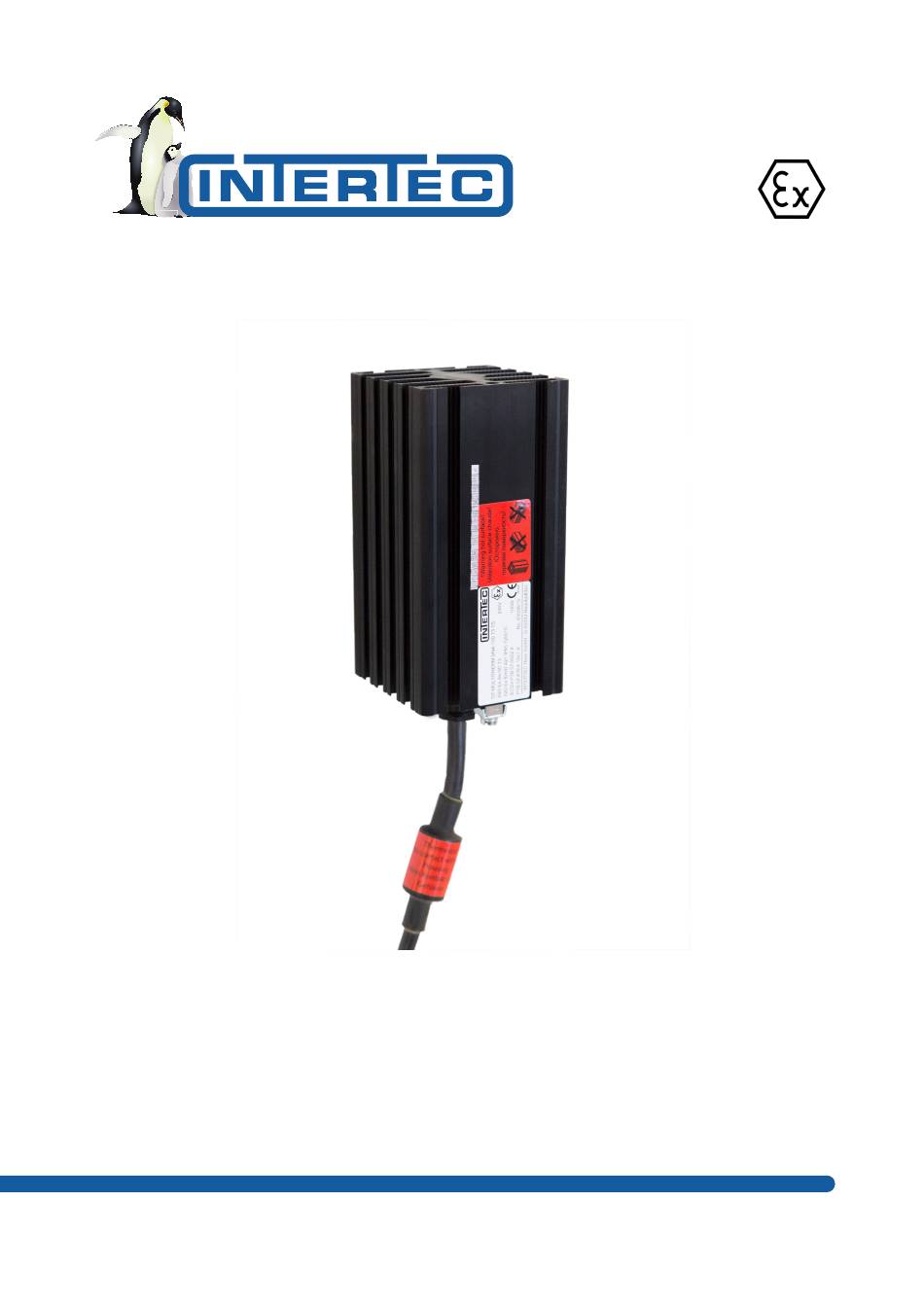

- Page 1 Operating Instructions SL MULTITHERM D.A HOM499575435Ien-6 • 03/02/2020...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information .............................. 3 5 Installation accessories ............................ 4 6 Technical Data ................................ 4 7 Installation................................ 4 8 Connection................................ -
Page 3: General
Operating Instructions SL MULTITHERM D.A General DANGER These operating instructions describe the safe and proper way to work with the device. The safety informa- DANGER tion and instructions given as well as the local accident This sign is warning about an extremely hazardous situ-... -
Page 4: Installation Accessories
Operating Instructions SL MULTITHERM D.A Protection class IP66/IP68 1bar/30min CAUTION Rated voltage max. 265 V AC Permitted operating voltage max. 275 V AC Risk of burns from a hot surface Rated current (in compli- max. 10 A Attainable highest temperatures: ance with VDE 0298) - Max. -
Page 5: Connection
Operating Instructions SL MULTITHERM D.A NOTICE Carefully remove When removing from the packaging and during trans- port, the connection line must not be stressed or bent. Free convection may not be impeded. You will find the minimum distances and installation position in the follow- ing figure. - Page 6 Operating Instructions SL MULTITHERM D.A Additional equipotential bonding is required. The ter- minal block designated for this purpose has the ground sign. In a TT or TN system, a residual current device (RCD) must be used where the measured triggering residual current does not exceed 100 mA.
-
Page 7: Commissioning
Operating Instructions SL MULTITHERM D.A Functional and safety test intervals can be freely selec- ted by the operator in accordance with the applicable regulations. Repairs may only be carried out by the manufacturer in the factory. All components have to be kept clean and free of dust... -
Page 8: 14 Eu Declaration Of Conformity
Operating Instructions SL MULTITHERM D.A Dipl.-Ing. Martin Hess, Managing Director NOTICE Further information and service Environmental damage may be caused if dis- posed of incorrectly! If the information contained in this instruction manual Electrical scrap and electronics components are subject...
