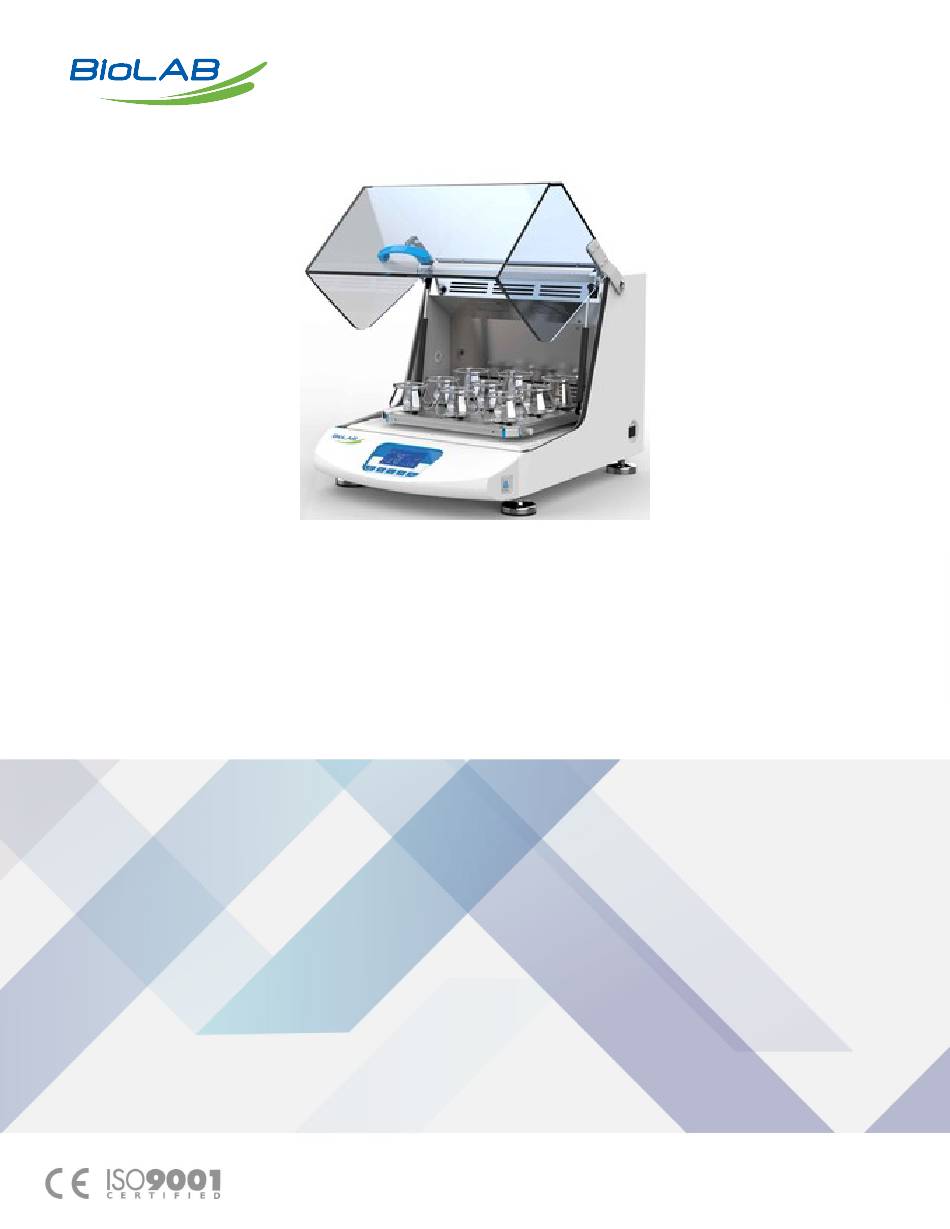

- Page 1 OPERATING MANUAL BENCHTOP SHAKING INCUBATOR BSBT-1707 www.biolabscientific.com...
- Page 2 INDEX 1. Working principle 2. Performance description 3. Scope of application 4. Definition of terms 5. Instruction for Safety 5.1 Danger ! 5.2 Warning! 5.3 Caution! 6. Structure and composition 6.1 Host structure 6.2 Display and commands 6.3 Operation steps 7.
-
Page 3: Working Principle
1. Working principle The constant temperature shaking incubator is an advanced constant temperature culture equipment that combines the functions of the oscillator and the incubator. It mainly realizes two parameters of temperature and speed control, achieving scientific and reasonable oscillation culture purposes. Creatively utilizing the principle of single-axis drive technology to provide a light and reliable speed, the medium is always oscillating. -
Page 4: Scope Of Application
3. Scope of application The temperature control range of the constant temperature shaking incubator is RT+5~65°C. The speed range is shown in Table 1. It integrates the functions of the incubator and the oscillator, provides precise temperature control, realizes shock culture, and meets the suspension culture of bacteria and microorganisms. - Page 5 • Suspension from use for a long time. • In movement. 5. When the equipment works on the bench, a crowning barrier should be built at the edge to avoid shifting of the oscillating box due to long-time work and falling from the bench, to cause serious loss in product or property injury and deaths.
- Page 6 6. Independent temperature limit controller 7. Controller 8. Power switch 9. Adjustable foot 6.2 Display and commands 6.2.1 Display introduction Figure 2 1. TIME: Time display window, when controller is running, TIME window will display the running time. 2. REV: Showing measured rotate speed. 3.
- Page 7 6.3 Operation steps 6.3.1 Temperature setting 1) The temperature setting range is RT+5℃~65℃ (BSBT-105 setting range：4℃～65℃); 2) The factory default setting is 25 °C. (Note that the temperature setting is adjusted to 25 ° C when the equipment is stopped); 3) Temperature setting Clicking and pressing the key, the “TEMP SET”...
- Page 8 is start and stop button, when the temperature and time setting is over, press 4~5 seconds when everything is ready, the shaker starts to work, When the working time is set to 0, it will automatically stop working, If you need to stop working before the time reaches 0，press and hold for 4~5 seconds to stop working.
-
Page 9: Cleaning And Maintenance
Figure 4 7. Cleaning and maintenance 7.1 Product moisture treatment: 1) After each use, dry the surface of the cabinet with a dry cloth to prevent rust. 2) When the product is not used for a long time (more than one month), it should be energized regularly. The machine runs at 50r/min for 5 hours to prevent moisture and rust. - Page 10 6) After the equipment is grounded, if the ground is not flat, it must be leveled and cannot be used for tilting; the left and right sides of the equipment should be kept more than 50cm. Especially for products with "C" in the end (with refrigeration system). If the equipment is used at an ambient temperature above 30 °C, it is recommended to strengthen the ventilation measures behind the equipment and reduce the ambient temperature to prevent the compressor from crashing due to overheating.
-
Page 11: Specifications
The conical flask clamp fixing plate is used for mounting and fixing the conical flask, test tube rack or other jig. Note: The factory configuration conical flask clamp is configured in 250mL. The number that can be placed Flask clamp capacity BSBT-1705 BSBT-1706 BSBT-1707 BSBT-1708 50ml 100ml 250ml... - Page 12 2000ml — Table 2 Features: Multi-function spring clip, a variety of test tubes, Erlenmeyer flasks and other shaped vessels can be placed. Universal spring clip (Optional） Features: The rod universal fixture is suitable for all types of containers, and the variable pinch roller allows for universal adjustment of the container.
- Page 13 Features: Different tubes can be sorted and mixed on the same platform, and different sizes of glassware can be mixed. The specifications of the flask holder can be selected. The beaker clip is made of stainless steel and can hold the conical flask and the cylindrical bottle.
- Page 14 Type 2 1. Rotate the locking screw on the tray working plate counterclockwise to release it, leaving a certain distance; 2. Align the four card slots of the rod-type universal fixture with the distance left in the first step when the locking screw is loosened.
- Page 15 Type 4 1. Rotate the locking screw on the tray working plate counterclockwise to release it, leaving a certain distance; 2. Align the four slots of the conical bottle holder with the distance left in the first step when the locking screw is loosened.
- Page 16 8.3. LCD screen function parameter table When LK is displayed in the output area of the LCD screen, set LK=0003, and press the SET key to enter the equipment manufacturer's parameter level setting. The parameter hierarchy menu of the equipment manufacturer is as follows: Factory Symbo Name...
-
Page 17: Troubleshooting
9. Troubleshooting Problem Problem reason Solution Power outlet no power or poor Inspection, repair. contact. The power line is broken. Replace. No power supply Power switch is not open or break Open (closed) switch or replace it when start down. Install the appropriate fuse, check Fuse is blown or Fuse is not the cause of the fuse burning, after... -
Page 18: Packing List
Determine the model according to the order Shaking incubator number Operating Document instructions Document Packing list Spare part Power cable Spare part Fuse Biolab Scientific Ltd. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8, Canada Email: info@biolabscientific.com | Website: www.biolabscientific.com...
