- Page 1 Operation Manual BCLT-204 Low Temperature Circulator BCLT-204 Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Low Temperature Circulator BCLT-204 Index 1. APPLICATIONS ............................03 2. SPECIFICATIONS............................03 3.WORKING PRINCIPLE...........................04 4. GUIDELINES FOR USE AND OPERATION..................05 5. MAINTENANCE............................12 6. APPENDIX..............................13 Warning: The instrument can not provide the designed protection for operators who do not follow the right procedures and requirements given by the manufacturer. -
Page 3: Applications
Low Temperature Circulator BCLT-204 Applications Refrigerated and Heating Circulator, thanks to its features such as highly precise and stable temperature control and fast heating and cooling, has been widely used in precise and thermostatic control equipment in sectors such as petroleum, physics, chemical industry, pharmacy, and environmental protection. -
Page 4: Working Principle
Low Temperature Circulator BCLT-204 Working Principle 1. Principle block diagram 2. Principle The circulator displays with a high-brightness LCD screen and measures temperature with a high-precision sensor. It feedbacks the measured temperature to CPU in a real-time manner, and then the fuzzy PID calculates a set of appropriate duty ratio to control heating equipment, while the mixing device is constantly circulating water in the bath so that water temperature in the bath becomes more even. -
Page 5: Guidelines For Use And Operation

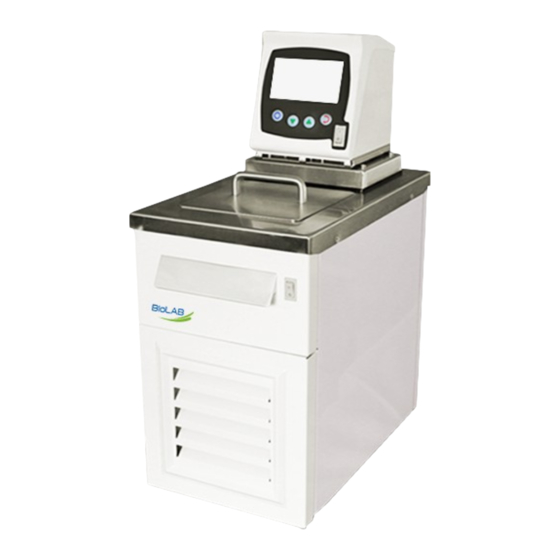

Low Temperature Circulator BCLT-204 Guidelines for Use and Operation 1. Component parts Front View 1. Heating circulation control 2. Bath cover 3. Refrigeration switch 4. Handle 5. Drain valve 6. Radiator grid www.biolabscientific.com... - Page 6 Low Temperature Circulator BCLT-204 Rear View 1. Data output 2. Overcurrent breaker 3. Heating circulation control power supply 4. Water outlet 5. Water inlet 6.Handle 7. Fuse 8. Power outlet 9. Radiation window 10. Power Outlet Display Panel www.biolabscientific.com...
- Page 7 Low Temperature Circulator BCLT-204 1. Display area 2. Function button 3. Decrease button 4. Increase button 5. Return button 6. Power switch 2. Instructions for use (1) Wire the power cord as in the rear view. (2) When the external circulation is used for achieving constant temperature, use a water tube to connect the instrument and the equipment requiring constant temperature.
- Page 8 Low Temperature Circulator BCLT-204 All parameters: Parameter Function Setting range Default value Setting temperature -20.0～100.0℃ 20.0℃ Changing parameters 0～100.0 and password. Changing subsequent parameter is allowed only when the value is 8, otherwise it returns to the normal display interface.
- Page 9 Low Temperature Circulator BCLT-204 detected temperature deviates from the standard temperature, it allows you to increase or decrease the error value on this basis. Water level alarm and 0～59min 0min delay. When the water level is lower than a certain value, the buzzer alarms and timing starts.
- Page 10 Low Temperature Circulator BCLT-204 (2) If to change the fluid, hold the bottom of grid with your hands to remove the grid; and fluid can be drained by unscrewing the drain plug with a straight screwdriver. After the fluid is drained, tighten the plug.
- Page 11 Low Temperature Circulator BCLT-204 a flat-nose pliers and rotate the block to the desired position, and finally, tighten the screw. The diagram below shows functions of the block when it is in different positions: A—100% internal circulation B—100% internal circulation C—60% internal circulation and 40% external circulation...
-
Page 12: Maintenance
Low Temperature Circulator BCLT-204 Power switch short circuit Change the power switch. Electric heating tube short Change the electric circuit heating tube. Sensor fault Check and replace the sensor. Sensor fault Continuous temperature Silicon controlled rectifier Check and replace the silicon... -
Page 13: Appendix
Low Temperature Circulator BCLT-204 (5) Purified water is preferable for fear of scale. Appendix One-year warranty starts from the purchase day (the invoice-issuing date), and does not cover the following situations: 1. The warranty has expired. 2. Any damage caused by the inappropriate operation. - Page 14 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com...
