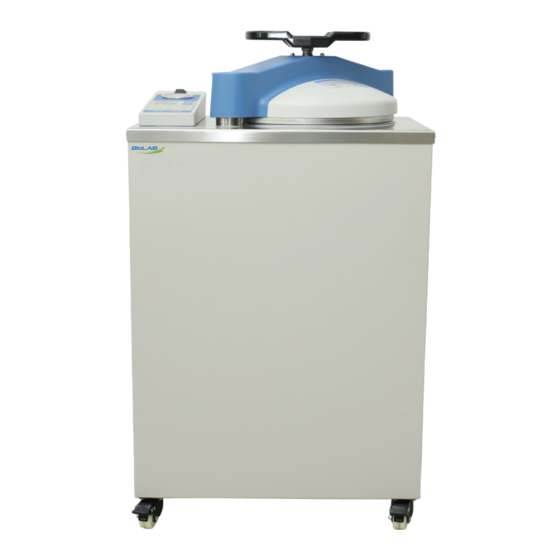

- Page 1 Operation Manual BAVT 500 series Vertical Autoclave Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Vertical Autoclave BAVT 500 series Index 1. External Features & Controller..................03 2. Technical Specificatio n....................05 3. Installation of Instrument....................06 4. Operation Instruction....................07 5. Troubleshooting........................13 6. Maintenance & Care......................15 7. Setting of Administrator.....................16 www.biolabscientific.com... -
Page 3: External Features & Controller
Vertical Autoclave BAVT 500 series External Features & Controller I. External Features www.biolabscientific.com... - Page 4 Vertical Autoclave BAVT 500 series www.biolabscientific.com...
-
Page 5: Technical Specification
Vertical Autoclave BAVT 500 series Technical Specification I. Technical Specification Model BAVT-502-A/BAVT- BAVT-503-A/BAVT-503-B BAVT-504-A/BAVT-504-B 502-B Capacity 50(L) 80(L) 100(L) External dimension(mm) 580x490x1080 730x625x1100 730x625x1200 Size of sterilizer chamber φ325x670 φ400x709 φ400x809 Power supply 220V 50/60HZ Rated power 2600W 4600W 4600W Range of pressure gauge -0.1-0.5Mpa... -
Page 6: Installation Of Instrument
Vertical Autoclave BAVT 500 series Installation of Instrument I. Placement of Instrument 1.Place the instrument on the level ground with the brakes of four casters pressed down before installation. Do not place any objects within 10cm around for ventilation. 2.Connect the drainage pipe between machine and wastewater receiving bottle or pipe. -
Page 7: Operation Instruction
Vertical Autoclave BAVT 500 series ★ Caution ： If the elevation is not set properly, machine can not work normally. Operation Instruction I. Basic Sterilization Illustration & Operation Instruction 1.Turning on the power Turn on the leakage protection switch and the power switch on the control panel... - Page 8 Vertical Autoclave BAVT 500 series 2.Opening the sterilizer chamber cover 1) Turn the handle counter-clockwise until the chamber cover is loosened 2) Push the handle rightward slightly to move the cover to one side ★ Note: 〇 The indicator "locked" is off at this time, and the sterilizer will not be able to work until the chamber cover is closed and secured.
- Page 9 Vertical Autoclave BAVT 500 series bags will result in inefficient sterilization. If the sterilization chamber is over crowded, steam can not reach every corner, will result in incomplete sterilization. 〇 When sterilizing the glassware like beaker, conical flask and test tube, the vessel must be put up side down or across.
- Page 10 Vertical Autoclave BAVT 500 series Sterilization Parameter S Setting Way Model 1.Sterilizing mode PrPess"MODE"button to switch between BAVT-B solid mode and liquid mode 1) Solid mode 2) Liquid mode 2、Main Parameter PPrees sterilizing temperature up or down button to set Sterilizing temperature 105- 135°C...
- Page 11 Vertical Autoclave BAVT 500 series 〇 Never press the "STOP" button casually to stop the running program during sterilizing of liquids to avoid the liquid overflowing into the sterilizer chamber and even blocking the valve and pipe lines. 7. Starting sterilization After setting the sterilization parameter, press "START"...
- Page 12 Vertical Autoclave BAVT 500 series 11.Clock Setting(BAVT-A) 1.Under standby condition, press the STOP+▽（beside STER TIME）, enter into clock setting and calibration mode, the screen will show below content: Screen 1 Screen 2 Screen 3 ℃ STER TEMP STER TEMP ℃...
-
Page 13: Troubleshooting
Vertical Autoclave BAVT 500 series Troubleshooting 1.The automatic control system of the sterilizer monitors the real time operation of the instrument. Whenever any failure occurs, the system may send out alarm and display the error code, then, please press the STOP button to return to standby status, and turn off the power, check the error code and handle on time. - Page 14 Vertical Autoclave BAVT 500 series Sudden power off during sterilization Start the cycle again Drying system or temp. control problem Contact local dealer Solenoid valve and piping blocked Clean the solenoid valve and piping Temp. /pressure sensor is abnormal Re-plug the temp./pressure sensor...
-
Page 15: Maintenance & Care
Vertical Autoclave BAVT 500 series Maintenance & Care 1 .Daily care: Sterilization chamber and chamber cover should be cleaned with soft cloth every day. 2.Weekly care: 1) The water in the sterilizer chamber must be changed every week, or change at any time within one week if the water is dirty. -
Page 16: Setting Of Administrator
Vertical Autoclave BAVT 500 series Spare parts Spare parts Spare parts Spare parts Mainboard Control Safety valve Solenoid panel valve Gasket ring Heater Temperature Temperature sensor switch Pressure Voltage Power switch Leakage gauge transformer protector Pressure Beam Chain switch Solid state... - Page 17 Vertical Autoclave BAVT 500 series P003 Setting of pressure unit: 1: Kpa; 2: bar; 3: psi；4: No ( Not available or no operation for pressure sensor, do not choose the pressure unit if the equipment is not added with pressure...
- Page 18 Vertical Autoclave BAVT 500 series BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com www.biolabscientific.com...
