OPERATING MANUAL
ORBITAL SHAKER
BSOT-302
www.biolabscientific.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSOT-302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BioLAB BSOT-302

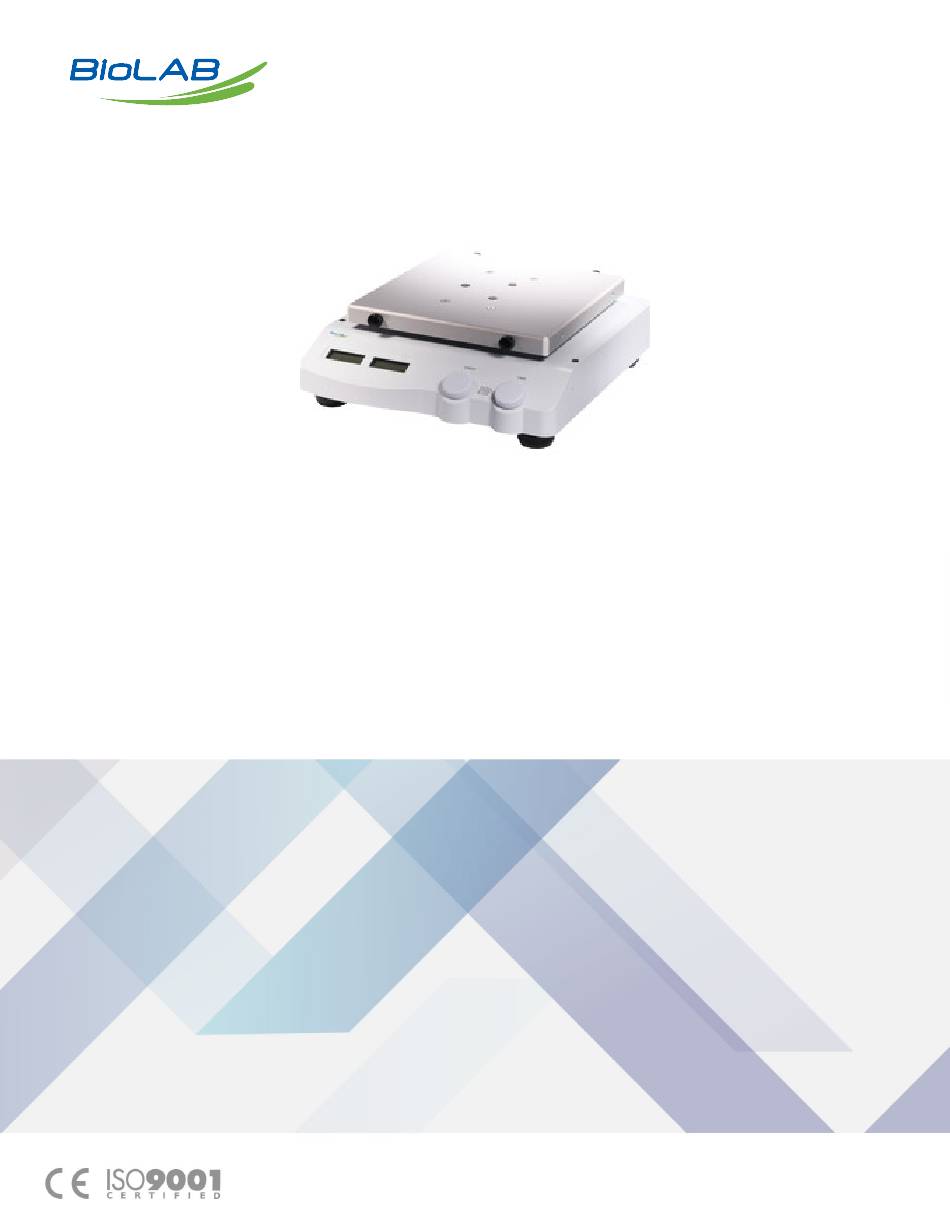

  • Page 1 OPERATING MANUAL ORBITAL SHAKER BSOT-302 www.biolabscientific.com...
  • Page 2 INDEX 1. Preface 2. Service 3. Warranty 4. Safety Instructions 5. Proper use 6. Inspection 6.1. Receiving Inspection 6.2. Listing of Items 7. Trial Run 8. Control and Set 8.1 Control 8.2 Set 9. Operating Modes 9.1 Mode A 9.2 Mode B 9.3 Switching the mode 10.
  • Page 3: Warranty

    1. Preface Welcome to the “Orbital and Linear Digital Shaker User Manual”. Users should read this manual carefully, follow the instructions and procedures, and beware of all the cautions when using this instrument. 2. Service When help needed, you can always contact manufacturer for technical support. Please provide the customer care representative with the following information:...
  • Page 4: Proper Use

    Use the instrument following the safety instructions and profession safety rules to avoid any accident. Users are not allowed to touch moving parts of he instrument to avoid any accidents. Pay attention to protect hands or fingers from rolling when moving the instrument. Set up the instrument in a spacious area on a stable, clean, non-slip, dry and fireproof surface.
  • Page 5: Receiving Inspection

    6. Inspection 6.1. Receiving Inspection Unpack the instrument carefully and check for any damages which may have arisen during transport. If it happens, please contact manufacturer for technical support. 6.2. Listing of Items Items Main unit Power cable User Manual Table 1 7.
  • Page 6 Figure 1 8. Control and Set 8.1 Control Figure 2 Table 2 Put the instrument on stable and safe place and plug in the mains power. Turn ON the mains switch on the left panel. The instrument starts self-test. The instrument shows rated speed and time after initialization.
  • Page 7 characters on the left LCD do not flash any more, and the shaking function is switched ON. Press the speed knob again and characters on the left LCD begin to flash, and the shaking function is switched OFF. Turn the time knob on the left side to set the rated time Press the time knob and characters on the LCD do not flash any more, and the timing function is switched ON.
  • Page 8: Operating Modes

    9. Operating Modes 9.1 Mode A Operating mode A is the default mode set in factory. After turning ON the instrument with the mains switch, the shaking and timing functions are turned OFF. The LCD displays the set time and speed values.
  • Page 9 9.2 Mode B When the instrument is turned ON and values for speed and time are erased to zero, users can set. The upper speed limit that has been set is taken over from operating mode A and cannot be modified. After the power has been turned OFF, the instrument will no longer automatically start up in operating Mode B by itself.
  • Page 10: Switching The Mode

    9.3 Switching the mode Switch the operating mode as follows: Turn OFF the instrument with the mains switch. Hold down both knobs and turn ON the instrument with the mains switch. After 5 second, you can let go of the knobs. Switch between operating Modes A and B in order.
  • Page 11: Maintenance And Cleaning

    13. Maintenance and cleaning Use and maintain the instrument in right way to keep it in good operating state in order to lengthen its life time and avoid the damage to the instrument. Only use the cleaning agents which have been approved by manufacturer to clean the instrument.
  • Page 12: Specification

    15. Specification Items Specifications Voltage [VAC] 100~240 Frequency [Hz] 50/60 Power [W] Shaking movement Orbital/ linear 10(7.5kg Models) Orbital diameter [mm] 4.5(2.5kg Models) Max. shaking weight (with attachment) 7.5(7.5kg Models) [kg] 2.5(2.5kg Models) External rotor brushless Motor type motor Motor rating input [W] Motor rating output [W] Permissible ON time [%] 100-350(7.5kg Linear Shaker)
  • Page 13 16. Accessories Descriptions Dish plate form with non- slip mat and fixed string (8 pcs) Universal attachment Fixing clip attachment Lengthways roller Attachment Fixing clip for flask volume 25 ml Fixing clip for flask volume 50 ml Fixing clip for flask volume 100 ml Fixing clip for flask volume 200/250 ml Fixing clip for flask volume 500 ml www.biolabscientific.com...
  • Page 14 Universal attachment, black Table 5 Biolab Scientific Ltd. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8, Canada Email: info@biolabscientific.com | Website: www.biolabscientific.com...
