- Page 1 Operation Manual BSCO-201 Cooled Shaking Incubator Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Cooled Shaking Incubator BSCO-201 Index 1. Structure and Working principle ................... 03 2. Technical Parameter ......................03 3. Panel Instruction ......................... 04 4. Operation ..........................04 5. Temperature and its parameter setting ..............05 6. Trouble Shooting ......................... 15 7. The Wiring diagram ......................16... -
Page 3: Structure And Working Principle

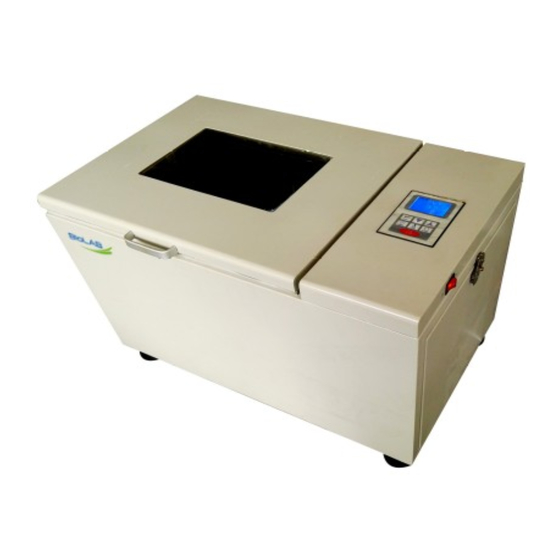

Cooled Shaking Incubator BSCO-201 Structure and Working principle The shaking incubator is composed of a microcomputer temperature control system with LCD Display, Stainless steel inner material, The Body is Composed of environmental protection foam, transparent glass door, stainless steel oscillation car and rack, stainless steel inner chamber and refrigeration system. -
Page 4: Panel Instruction
Cooled Shaking Incubator BSCO-201 Panel Instruction Operation ● Controller is powered on, the temperature display window showing "HY - 2", speed display window showing"8888", the time display window showing "8888", all identifiers is lighting, the machine into the normal display status after 4 seconds. -
Page 5: Temperature And Its Parameter Setting
Cooled Shaking Incubator BSCO-201 ● Long press the "run/stop" key for 1 second can start or stop the controller. Runtime identifier light "RUN", "STOP" when to STOP identifier to light. ● Refrigeration function ● Compressor works can choose (intermittent type, balanced type and open type), intermittent work can choose manual or automatic start-stop compressor (see the NDC, CP, Htd, Crc, Cnp parameters: the internal parameter table - 2). - Page 6 Cooled Shaking Incubator BSCO-201 parameter value automatically saved. Intrinsic parameter-1 Param factory eter Parameter name Parameter function default code (range) Password “Lc=3”view and modify parameters Over- when “test temp. > set temp. +AL ”, alarm (0～ temperature light is on, alarm beeps, stop runing, heating 20.0 )
- Page 7 Cooled Shaking Incubator BSCO-201 After sterilization lamp open, delay St time The sterilization (0～ shut down automatically."St = 0", the time lamp close time 9999min) delay is invalid must manually shut the delay sterilization lamp. Control cycle Heating Control cycle (1～60s) 5...
- Page 8 Cooled Shaking Incubator BSCO-201 0: compressor only intermittent work; 1: compressor according to the CP (see below) the value of the compressor compressor balance type or intermittent work; (0～2) 0 working way 2: compressor according to Htd (see below) judging the value of the compressor balance type or intermittent work;...
- Page 9 Cooled Shaking Incubator BSCO-201 setting min value temperature (SPL～100.0 ) ℃ setting max temperature setting max value data 60.0 value address The machine factory produce address (1～16) 1 Intrinsic parameter-3 Para Parameter factory default Parameter function name (range) "Lc = 18" to view the environment password temperature.
- Page 10 Cooled Shaking Incubator BSCO-201 When the temperature setting ≥ CAP ", Capillary start relay; (-50.0～100.0 ) ℃ switch Setting When the temperature setting ＜ CAP ", value close the relay. When the compressor work in balanced way, Pressure If the temperature measurement ≤...
- Page 11 Cooled Shaking Incubator BSCO-201 (0～240h) frost relase When the "8.0 ℃ < temperature setting The time value ≤16.0 ℃ frost time interval. "Dt2 = interval 2 0" no frost. When the "8.0 ℃ < temperature setting value≤16.0 ℃ If the solenoid valve frost, Ft2 for electromagnetic valve conduction time;...
- Page 12 Cooled Shaking Incubator BSCO-201 proportional gain Integral Speed integral coefficient (1～100) 5 coefficient Motor speed up to the time needed for speed up time (1～60) 10 the new Settings. Speed down Motor speed down to the time needed for (1～60) 10 time the new Settings.
- Page 13 Cooled Shaking Incubator BSCO-201 o: the motor run only to forward; 1: the motor run only in reverse; (0～2) Motor rotation direction 2: the motor can be positive &negative operation； Show no sensitive area Speed shows no sensitive area (0～100) 2 When speed set point ≥dF , the...
- Page 14 Cooled Shaking Incubator BSCO-201 0: after running time, running time, only stop speed, constant temperature 1: after running time, running time, at the same time to stop the speed and temperature Start the time after 2: temperature reach the set...
-
Page 15: Trouble Shooting
Cooled Shaking Incubator BSCO-201 h．Do not touch crash the probe, So as not to cause temperature abuse. i．When the equipment not working, should contact with professional Maintenance personnel or sale department. j．If need move, repair or clean the machine, should keep the power off k．The Equipment should place at Ventilated, dry and non-corrosive gases warehouse... -
Page 16: The Wiring Diagram
Cooled Shaking Incubator BSCO-201 The Wiring diagram www.biolabscientific.com... - Page 17 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com...
