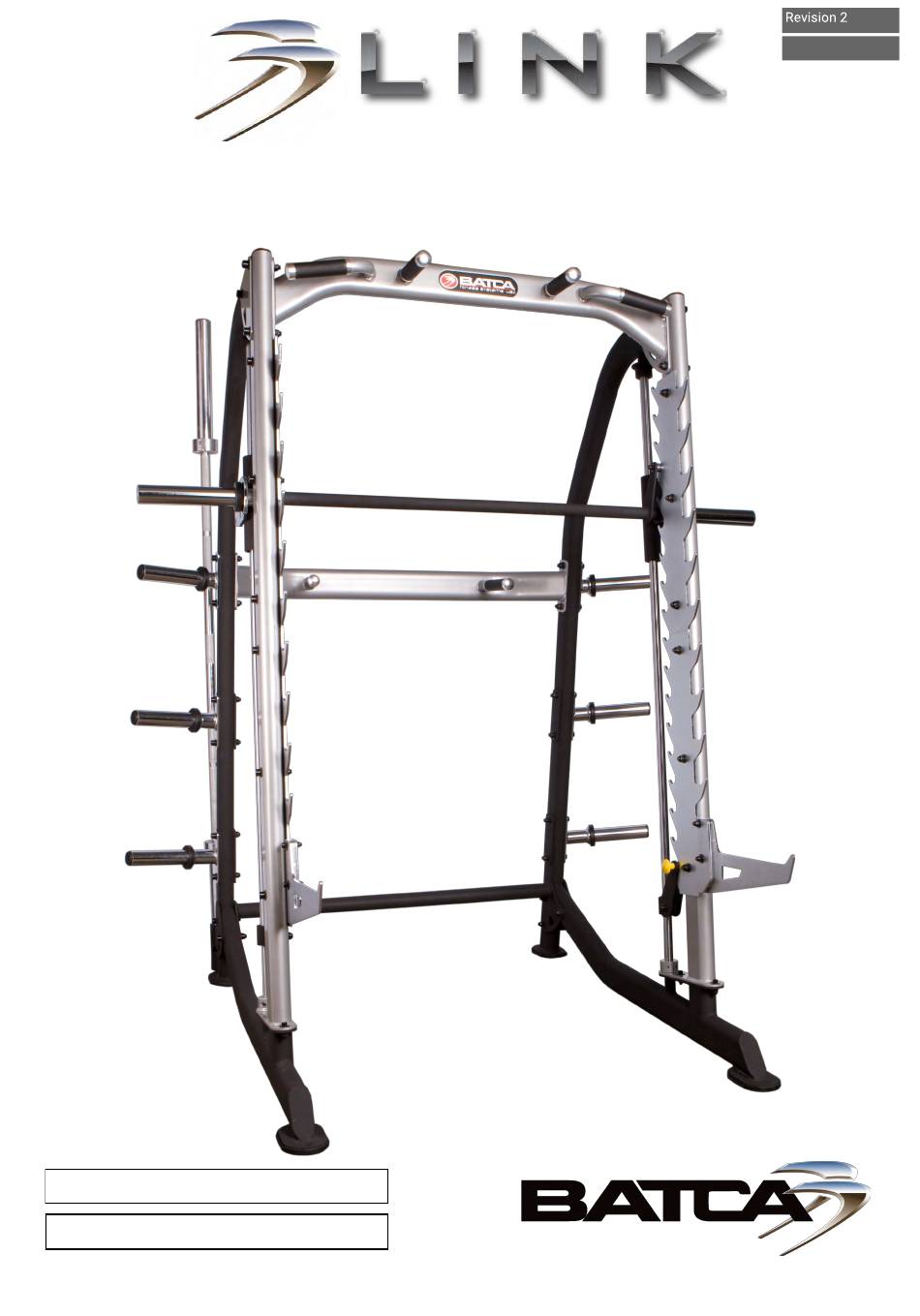

- Page 1 Mar 2021 smith machine LST Link Smith Machine Serial Number Here Date of Purchase www.batcafitness.com Link Smith Machine...
- Page 2 Congratulations on the purchase of your new Batca Link Smith Machine. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
-
Page 3: Tools Required
Tools Required 9/16” Wrench/Ratchet • 3/4” Wrench • Tape Measure • Metric Allen Wrench Set (M8, M6, M4) • Hardware Blister Pack www.batcafitness.com Link Smith Machine... - Page 4 Hardware Blister Pack Batca Fitness Systems Link Smith Machine...
- Page 5 PLEASE READ AND FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER INSTALLATION. Step 1: Note: Please Position Hardware in the same direction as shown in the figure. This will make future steps easier to assemble All Flat Washers and Nylocks are 1/2” unless otherwise noted. Anywhere a washer is against the round side of a tube there is to be a 3/8”...
- Page 6 SHCS 3/8” x 1 1/4” All Flat Washers and Nylocks are 1/2” unless otherwise noted. BFP-52236 SHCS 1/2” x 3 1/4” BFH-50146 3/8” Flat Washer BFH-50251 1/2” Flat Washer BFH-50157 3/8” Nylock BFH-50155 1/2” Nylock Batca Fitness Systems Link Smith Machine...
- Page 7 Step 3: Do Not Tighten Bolts DO NOT TIGHTEN BOLTS UNTIL STEP 4 Figure 3 Item # Part # Description BFP-10998 Dip Station Crossmember All Flat Washers and Nylocks are 1/2” unless otherwise noted. BFP-11009 10” Weight Tree (User Right) BFP-11008 10”...
- Page 8 12” Weight Tree (User Left) All Flat Washers and Nylocks are 1/2” unless otherwise noted. BFP-11011 12” Weight Tree (User Right) BFP-52305 Anti-Deflection Plate BFP-52236 SHCS 1/2” x 3 1/4” BFH-50251 1/2” Flat Washer BFH-50155 1/2” Nylock Batca Fitness Systems Link Smith Machine...
- Page 9 Step 5: Do Not Tighten Bolts Item # Part # Description All Flat Washers and Nylocks are 1/2” unless otherwise noted. BFP-52307 Racking Plates BFP-11021 Freeweight Safety Catches BFP-52337 SHCS 1/2” x 3” BFH-50251 1/2” Flat Washer BFH-50155 1/2” Nylock www.batcafitness.com Link Smith Machine...
- Page 10 BFP-52306 Guide Rod All Flat Washers and Nylocks are 1/2” unless BFP-52393 SHCS 1/4” x 3/4” BFP-51759 SHCS 3/8” x 2” otherwise noted. BFH-50146 3/8” Flat Washer BFH-50157 3/8 Nylock” BFP-52392 3/8” Shoulder Bolt Batca Fitness Systems Link Smith Machine...
- Page 11 Step 7: Make Sure All Bolts Are Tightened. As You Are Tightening the Bolts, Make Sure all Four Feet Are Touching the Ground and the Gym is Sitting Level. Do not over tighten the two 3/8” x 3/4” bolts. Over tightening these bolts can cause the Gym to not function properly.
-
Page 12: Preventive Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 13: Limited Lifetime Warranty
Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply. -
Page 14: Layout Diagram
Layout Diagram The Link Smith Machine has a layout dimension of 5’-11” (width) x 5’-8” (length) x 7’-0” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. Batca Fitness Systems Link Smith Machine...
