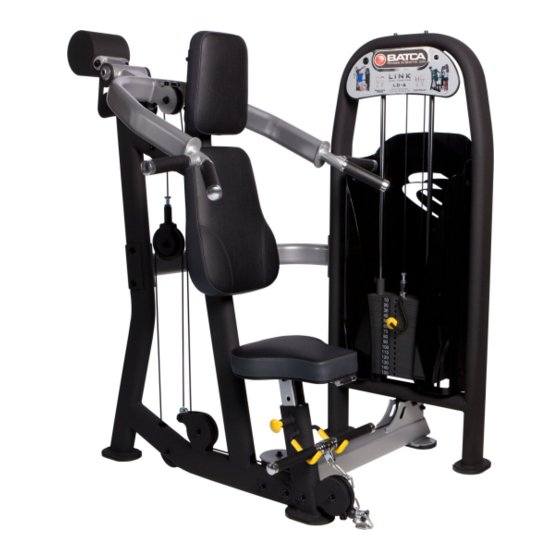

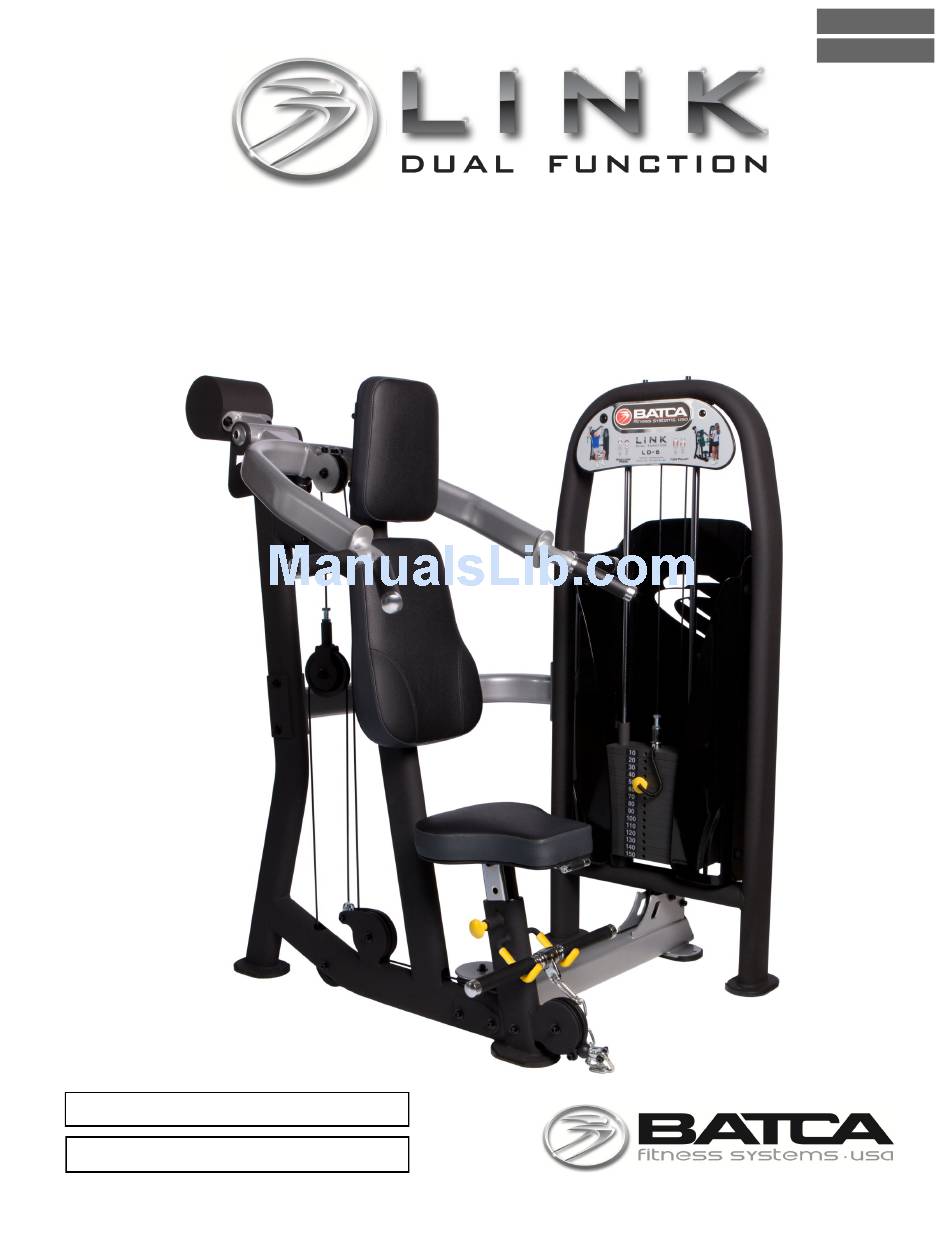

- Page 1 Revision 1 April 2012 LD-6 Shoulder Press/Low Pulley Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com LD-6 Owner’s Manual 1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com...
-
Page 2: Table Of Contents
Instructions Congratulations on the purchase of your new Batca LD-6. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping. -
Page 3: Upholstery
Frame Components Accessories ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM PART NUMBER DESCRIPTION QTY. BFM-51173 Weight Stack Pull Pin BFC-50126 Short Bar BFP-10887 LD-6 Short Cage BFM-51464 Ankle Strap BFP-10885 Base BFP-10884 Shoulder Press Frame Upholstery BFP-51842 Anti-Deflection Plate BFP-10886 Rear Support Brace BFP-51945 Anti Deflection Plate... - Page 4 Bolt Length Note: Bolt length is measured from the underside of the head of the bolt. Batca Fitness Systems LD-6 Owner's Manual...
- Page 5 www.batcafitness.com LD-6 Owner’s Manual...
- Page 6 Batca Fitness Systems LD-6 Owner's Manual...
- Page 7 www.batcafitness.com LD-6 Owner’s Manual...
- Page 8 Part # Description BFP-10887 LD-6 Short Cage BFP-10885 Base BFP-10884 Shoulder Press Frame BFP-51842 Anti-Deflection Plate BFP-51750 SHCS 3/8” x 2 3/4” BFP-51748 SHCS 3/8” x 3 1/4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-6 Owner's Manual...
- Page 9 Step 2: DO NOT TIGHTEN BOLTS UNTIL STEP 3 Figure 2 Item # Part # Description BFP-10886 Rear Support Brace BFP-51945 Anti Deflection Plate BFP-51747 SHCS 3/8” x 3” BFP-51748 SHCS 3/8” x 3 1/4” All Flat Washers and Nylocks are 3/8” unless BFH-50146 3/8”...
- Page 10 BFM-50632 Weight Stack Plate BFM-50529 Rubber Donut BFM-51173 Weight Stack Pull Pin BFP-51748 SHCS 3/8” x 3 1/4” All Flat Washers and Nylocks are 3/8” unless BFH-50146 3/8” Flat Washer otherwise noted. BFH-50157 3/8”Nylock Batca Fitness Systems LD-6 Owner's Manual...
- Page 11 Step 4: Figure 4 Item # Part # Description BFP-10890 Shoulder Press Arm BFP-51776 Axle BFP-51944 6” Counter-Weight BFP-51696 Small Aluminum Cap BFH-50620 BHSCS 3/8” x1” All Flat Washers and Nylocks are 3/8” unless BFP-52376 SHCS 3/8” x 1” otherwise noted. BFH-50146 3/8”...
- Page 12 Chrome Seat Adjustment BFH-50210 Gas Spring BFP-51752 SHCS 3/8” x 2 1/4” All Flat Washers and Nylocks are 3/8” unless BFP-51750 SHCS 3/8” x 2 3/4” otherwise noted. BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-6 Owner's Manual...
-
Page 13: Weight Stack To Free
Step 6: Note: The threaded bolt on the end of the cable must be threaded at least 1/2” Plate weight stack. The bolt must also be secured with a 1/2” Jam Nut to ensure a s a f e a n d p r o p e r connection Figure 6... -
Page 14: Floater
SHCS 3/8” x 2 1/4” BFP-51750 SHCS 3/8” x 2 3/4” CAB-15009 BFP-51946 1/2” Pulley Spacer All Flat Washers and Nylocks are 3/8” unless BFH-50146 3/8” Flat Washer otherwise noted. BFH-50157 3/8” Nylock BFH-50227 Cable Strap Batca Fitness Systems LD-6 Owner's Manual... - Page 15 Step 8: Figure 8 Item # Part # Description BFP-52137 Head Pad BFP-52136 Back Pad With Lumbar BFP-52141 Bottom Pad BFP-51653 SHCS 3/8” x 1 1/4” All Flat Washers and Nylocks are 3/8” unless BFP-51799 SHCS 3/8” x 5” otherwise noted. Anywhere a washer is against the BFH-50204 3/8”...
-
Page 16: Rear Weight Stack Shroud
BHSCS 3/8” x 3/4” BFH-50254 HCS 3/8” x 3/4” BFH-50146 3/8” Flat Washer All Flat Washers and Nylocks are 3/8” unless BFM-51464 Ankle Strap otherwise noted. BFH-50351 1 3/8” Shoulder Bolt BFH-50267 5/16” Nylock Batca Fitness Systems LD-6 Owner's Manual... -
Page 17: Left Front Shroud
Step 10: Figure 10 Item # Part # Description All Flat Washers and Nylocks are 3/8” unless otherwise noted. BFP-51741 Left Front Shroud BFP-51742 Right Front Shroud Batca Fitness Systems LD-6 Owner's Manual... -
Page 18: Final Assembly And Troubleshooting
Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH- 50262) to each guide rod. This will ensure a glass smooth performance from your weight stack. Batca Fitness Systems LD-6 Owner's Manual... -
Page 19: Cable Adjustments
Cable Adjustments Adjust cables to proper tension from any of the locations shown below. Note: All cables with threaded adjustable ends must have at least 1/2” of the threads threaded in to its counterpart. It is very important that the 1/2” Jam Nut be wrench tight- ened to the counterpart to ensure that the threaded adjustable end of the cable does not back out of its counterpart. -
Page 20: Preventive Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 21: Limited Lifetime Warranty
Improper installation, improper assembly or follow-up maintenance along with installation of parts or accessories not originally intended for products of Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply. - Page 22 Layout Diagram The LD-6 has a layout dimension of 4’-5” (width) x 4’-3” (length) x 5’-” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. Batca Fitness Systems LD-6 Owner's Manual...
