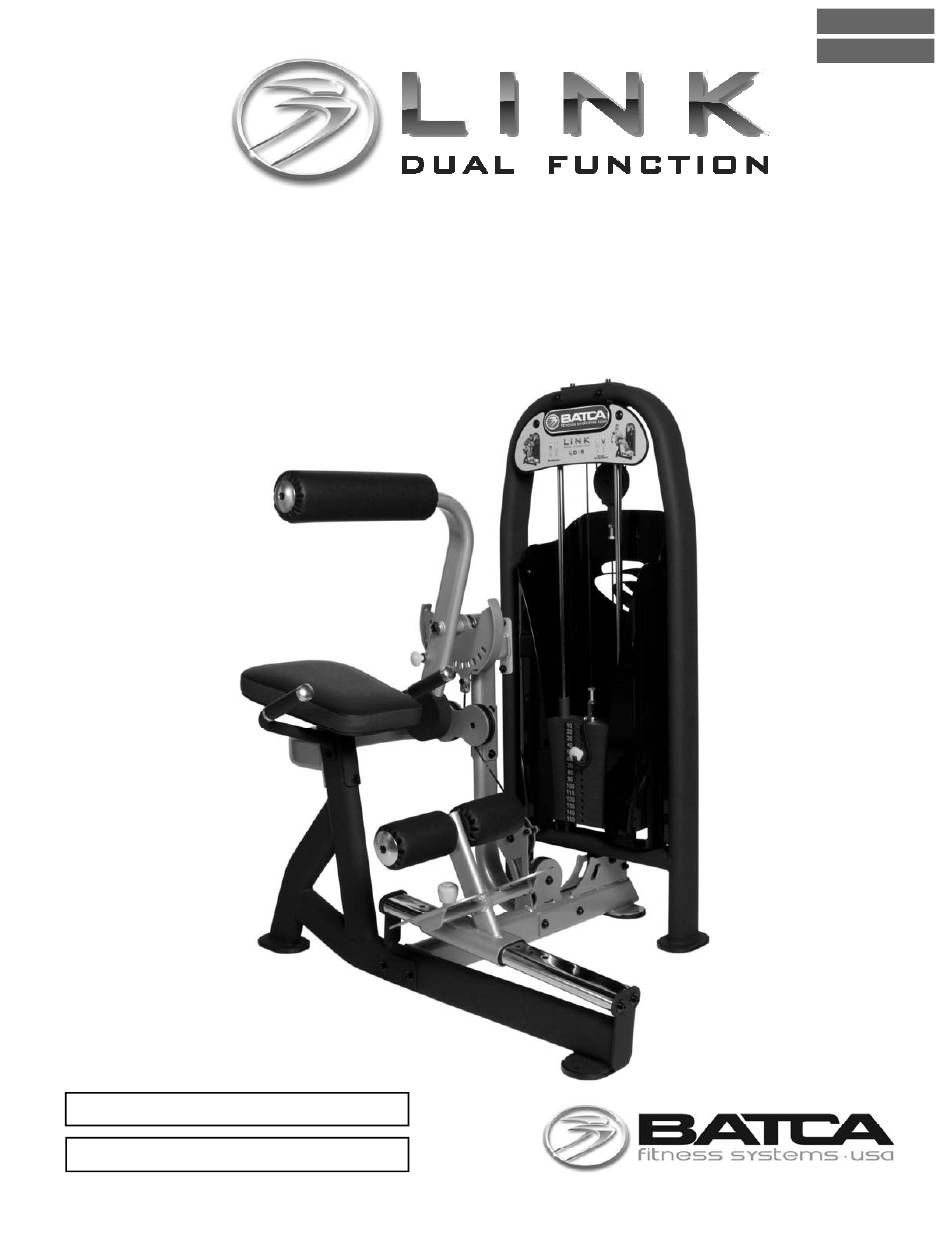

- Page 1 Revision 1 April 2012 LD-5 Ab Crunch/Back Extension Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com LD-5 Owner’s Manual 1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com...
-
Page 2: Table Of Contents
Instructions Congratulations on the purchase of your new Batca LD-5. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping. -
Page 3: Parts Listing
Frame Components Accessories ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM PART NUMBER DESCRIPTION QTY. BFM-51173 Weight Stack Pull Pin BFP-10879 LD-5 Cage (Short) BFP-10878 Base Upholstery BFP-10876 Ab Crunch/Back Ext Frame BFP-51861 Anti-Deflection Plate BFP-10880 J Brace ITEM PART NUMBER DESCRIPTION QTY. -
Page 4: Hardware Comparison
Bolt Length Note: Bolt length is measured from the underside of the head of the bolt. Batca Fitness Systems LD-5 Owner's Manual... - Page 5 www.batcafitness.com LD-5 Owner’s Manual...
- Page 6 Batca Fitness Systems LD-5 Owner's Manual...
- Page 7 www.batcafitness.com LD-5 Owner’s Manual...
-
Page 8: Main Assembly
LD-5 Cage (Short) BFP-10878 Base BFP-10876 Ab Crunch/Back Ext Frame BFP-51861 Anti-Deflection Plate BFH-50174 4 1/2” Pulley BFP-51750 SHCS 3/8” x 2 3/4” BFP-51748 SHCS 3/8” x 3 1/4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-5 Owner's Manual... - Page 9 Step 2: DO NOT TIGHTEN BOLTS UNTIL STEP 4 Figure 2 Item # Part # Description BFP-10880 J Brace BFP-51863 Anti-Deflection Plate BFP-51748 SHCS 3/8” x 3 1/4” BFP-51753 SHCS 3/8” x 4 3/4” All Flat Washers and Nylocks are 3/8” unless BFH-50204 3/8”...
- Page 10 BFH-50204 3/8” Curved Washer tube there is to be a 3/8” CURVED WASHER instead of a 3/8” FLAT BFH-50146 3/8” Flat Washer WASHER. BFH-50157 3/8” Nylock Batca Fitness Systems LD-5 Owner's Manual...
- Page 11 Step 4: Figure 4 Make sure all bolts are tightened before moving Item # Part # Description BFP-10839 Cable Lockout Plate BFP-10827 Guide Rod Plate BFP-51827 Guide Rod BFP-10889 Top Weight Plate BFM-50632 Weight Stack Plate BFM-50529 Rubber Donut BFM-51173 Weight Stack Pull Pin BFP-51760 SHCS 3/8”...
- Page 12 Selector Tube BFP-10877 Foot Plate Adjustment BFP-52376 SHCS 3/8” x 1” BFP-51748 SHCS 3/8” x 3 1/4” BFH-50146 3/8” Flat Washer All Flat Washers and Nylocks are 3/8” unless otherwise noted. BFH-50157 3/8” Nylock Batca Fitness Systems LD-5 Owner's Manual...
- Page 13 Step 6: Figure 6 Item # Part # Description BFP-10883 AB/Back Ext. Arm BFP-52200 6” Counter-Weight BFP-10882 Bi-Directional Ab/Back Ext. Cam BFP-51885 Red Pivot Point Cap BFH-50165 1” Snap Ring BFP-52364 SHCS 3/8” x 6” All Flat Washers and Nylocks are 3/8”...
-
Page 14: Cable Routing
Weight Stack to Cable Lockout Cable 53 3/4” BFP-10838 Free Floater BFH-50174 4 1/2” Pulley BFH-50530 5” Pulley CAB-15006 BFH-50351 1 3/8” Shoulder Bolt BFP-51752 SHCS 3/8” x 2 1/4” BFH-50267 5/16”Nylock BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-5 Owner's Manual... - Page 15 Step 8: Note: The threaded bolt on the end of the cable must be threaded at least 1/2” in the Free Floater. The bolt must also be secured with a 1/2” Jam Nut to ensure a safe and proper connection. CAB-15007 1 3/8”...
- Page 16 BFP-52340 BHSCS 3/8” x 3/4” BFH-50254 HCS 3/8” x 3/4” BFP-51653 SHCS 3/8” x 1 1/4” BFH-50147 3/8” Lock Washer All Flat Washers and Nylocks are 3/8” unless otherwise noted. BFH-50146 3/8” Flat Washer Batca Fitness Systems LD-5 Owner's Manual...
- Page 17 Step 10: Make sure all bolts are tightened Figure 10 Item # Part # Description All Flat Washers and Nylocks are 3/8” unless BFP-51741 Left Front Weight Stack Shroud otherwise noted. BFP-51742 Right Front Weight Stack Shroud www.batcafitness.com LD-5 Owner’s Manual...
-
Page 18: Final Assembly And Troubleshooting
Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH- 50262) to each guide rod. This will ensure a glass smooth performance from your weight stack. Batca Fitness Systems LD-5 Owner's Manual... -
Page 19: Cable Tension And Adjustments
Cable Adjustments Adjust cables to proper tension from any of the locations shown below. Note: All cables with threaded adjustable ends must have at least 1/2” of the threads threaded in to its counterpart. It is very important that the 1/2” Jam Nut be wrench tight- ened to the counterpart to ensure that the threaded adjustable end of the cable does not back out of its counterpart. -
Page 20: Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 21: Warranty
Improper installation, improper assembly or follow-up maintenance along with installation of parts or accessories not originally intended for products of Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply. -
Page 22: Floor Plan Layout
Layout Diagram The LD-5 has a layout dimension of 3’-10” (width) x 4’-2” (length) x 5’-0” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. Batca Fitness Systems LD-5 Owner's Manual...
