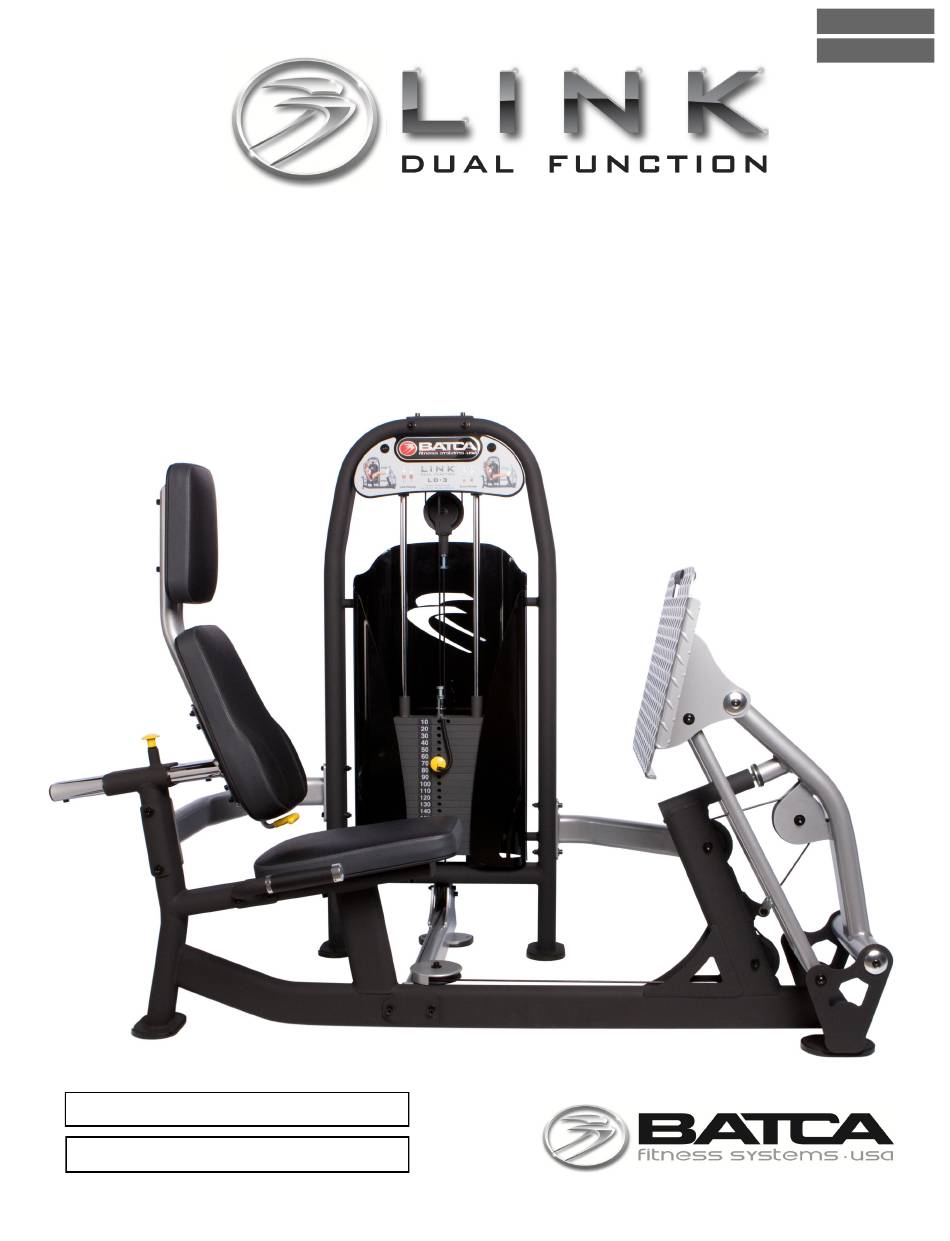

- Page 1 Revision 2 October 2011 LD-3 Leg Press/Calf Raise Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com LD-3 Owner’s Manual 1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com...
-
Page 2: Table Of Contents
Instructions Congratulations on the purchase of your new Batca LD-3. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping. -
Page 3: Parts Listing
Tools Required ITEM PART NUMBER DESCRIPTION QTY. 33 CAB-15010 Weight Stack to Cable Lockout 9/16” Wrench Cable 9/16” Ratchet 34 CAB-15004 Free Floater to Leg Press Allen Wrench Set Cable Tape Measure www.batcafitness.com LD-3 Owner’s Manual... -
Page 4: Hardware Comparison
Bolt Length Note: Bolt length is measured from the underside of the head of the bolt. Batca Fitness Systems LD-3 Owner's Manual... - Page 5 LD-3 Owner’s Manual...
- Page 6 Batca Fitness Systems LD-3 Owner's Manual...
- Page 7 LD-3 Owner’s Manual...
-
Page 8: Main Assembly
BOLTS UNTIL STEP 4 Figure 1 Item # Part # Description BFP-10855 LD-3 Cage BFP-10854 Base Assembly BFH-50174 4 1/2” Pulley BFP-51750 SHCS 3/8” x 2 3/4” BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-3 Owner's Manual... - Page 9 Figure 2 Item # Part # Description BFP-10850 Leg Press Frame BFP-51842 Anti-Deflection Plate BFP-51748 SHCS 3/8” 3 1/4” All Flat Washers and Nylocks are 3/8” unless BFH-50146 3/8” Flat Washer otherwise noted. BFH-50157 3/8” Nylock www.batcafitness.com LD-3 Owner’s Manual...
- Page 10 BFH-50204 3/8” Curved Washer tube there is to be a 3/8” CURVED WASHER instead of a 3/8” FLAT BFH-50146 3/8” Flat Washer WASHER. BFH-50156 3/8” Nylock Batca Fitness Systems LD-3 Owner's Manual...
- Page 11 Anywhere a washer is against the round side of a tube there is to be BFH-50204 3/8” Curved Washer 3/8” CURVED WASHER 3/8” instead of a BFH-50146 3/8” Flat Washer FLAT WASHER. BFH-50157 3/8” Nylock www.batcafitness.com LD-3 Owner’s Manual...
- Page 12 BFH-50204 3/8” Curved Washer washer is against the round side of a tube 3/8” CURVED WASHER there is to be a BFH-50146 3/8” Flat Washer 3/8” FLAT WASHER. instead of a BFH-50157 3/8” Nylock Batca Fitness Systems LD-3 Owner's Manual...
- Page 13 Four-Bar Spacer BFP-11020 Cable Lockout Spacer BFP-51846 3/4” Axle BFP-51844 1” Axle BFP-51696 Small (2”) Aluminum End Cap All Flat Washers and Nylocks are 3/8” BFH-50620 BHSCS 3/8” x 1” unless otherwise noted. BFH-50146 3/8” Flat Washer www.batcafitness.com LD-3 Owner’s Manual...
-
Page 14: Cable Routing
Weight Stack to Cable Lockout Cable 50” BFP-10838 Free Floater BFH-50174 4 1/2” Pulley BFH-50530 5” Pulley CAB-15010 BFH-50351 1 3/8” Shoulder Bolt BFP-51752 SHCS 3/8” x 2 1/4” BFH-50267 5/16” Nylock BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-3 Owner's Manual... - Page 15 Free Floater to Leg Press Cable BFM-50345 Pulley Cover CAB-15004 BFH-50174 4 1/2” Pulley BFP-51759 SHCS 3/8” x 2” All Flat Washers and Nylocks are 3/8” unless BFH-50146 3/8” Flat Washer otherwise noted. BFH-50157 3/8” Nylock www.batcafitness.com LD-3 Owner’s Manual...
- Page 16 1 3/8” Shoulder Bolt BFP-51752 SHCS 3/8” x 2 1/4” BFP-51750 SHCS 3/8” x 2 3/4” All Flat Washers and Nylocks are 3/8” unless BFH-50267 5/16” Nylock otherwise noted. BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-3 Owner's Manual...
- Page 17 BHSCS 3/8” x 3/4” BFP-51750 SHCS 3/8” X 2 3/4” BFP-51747 SHCS 3/8” X 3” BFP-51748 SHCS 3/8” X 3 1/4” All Flat Washers and Nylocks are 3/8” unless BFH-50147 3/8” Lock Washer otherwise noted. BFH-50146 3/8” Flat Washer www.batcafitness.com LD-3 Owner’s Manual...
- Page 18 Step 10: Make sure all bolts are tightened Figure 11 Item # Part # Description BFP-51741 Left Front Weight Stack Shroud BFP-51742 Right Front Weight Stack Shroud BFP-51711 Placard Plate BFP-52340 BHSCS 3/8” x 3/4” Batca Fitness Systems LD-3 Owner's Manual...
-
Page 19: Final Assembly And Troubleshooting
Lubrication Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH- 50262) to each guide rod. This will ensure a glass smooth performance from your weight stack. www.batcafitness.com LD-3 Owner’s Manual... -
Page 20: Cable Tension And Adjustments
You will need to take some of the tension out to lower the Top plate flush with the second plate. Fine Adjustments to the cable can be made here. It is very important to tighten the jam nut after adjustments have been made Batca Fitness Systems LD-3 Owner's Manual... -
Page 21: Maintenance
Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed. -
Page 22: Warranty
Improper installation, improper assembly or follow-up maintenance along with installation of parts or accessories not originally intended for products of Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply. -
Page 23: Floor Plan Layout
Layout Diagram The LD-3 has a layout dimension of 3’-8” (width) x 6’-6” (length) x 5’-0” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. www.batcafitness.com LD-3 Owner’s Manual...
