Summary of Contents for Batca LINK DUAL FUNCTION LD-9

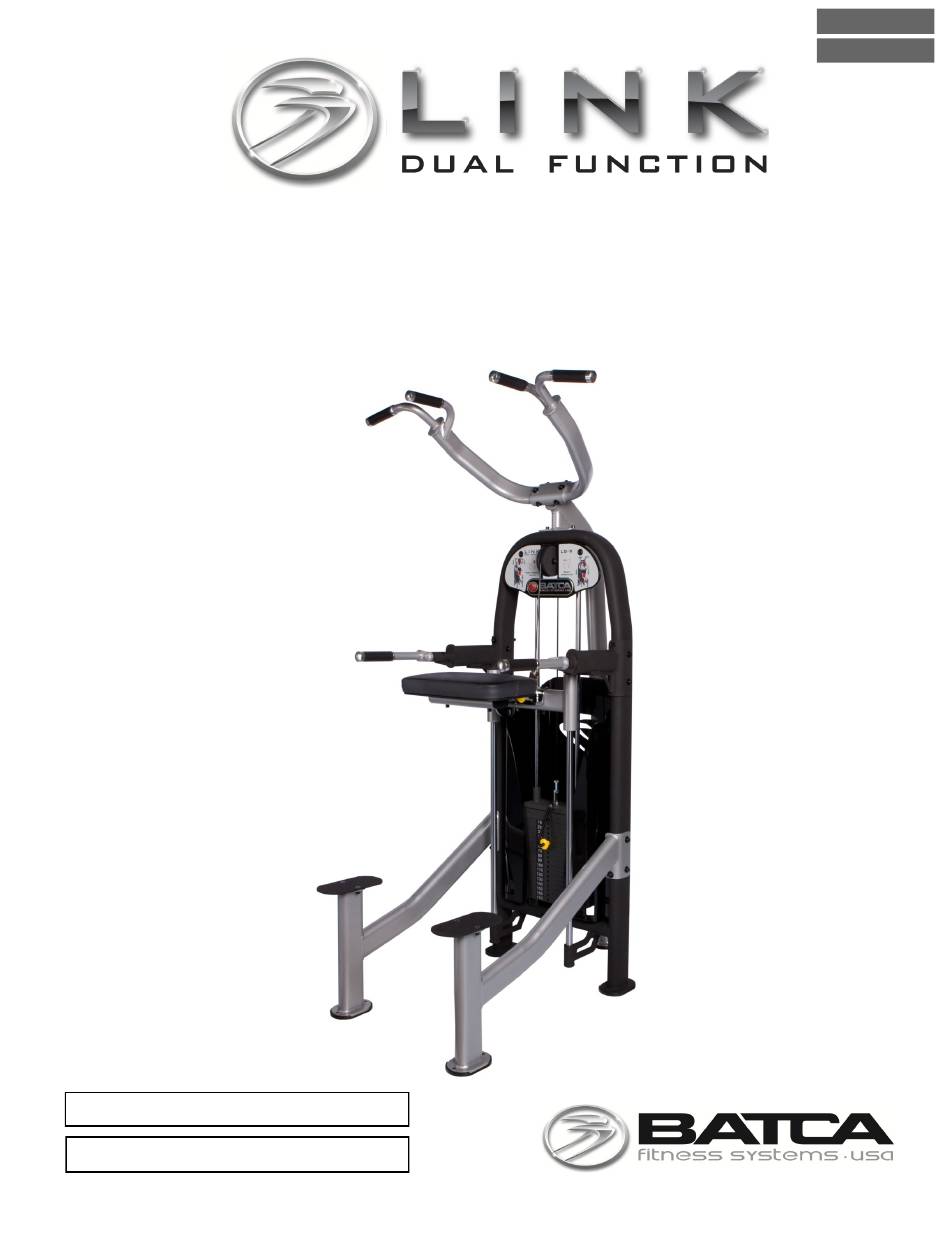

- Page 1 Revision 1 April 2012 LD-9 Weight Assisted Chin/dip Owner’s Manual Serial Number Here Date of Purchase www.batcafitness.com LD-9 Owner’s Manual 1207 New Hope Road, Raleigh, NC - 919.255.1233 - www.batcafitness.com...
- Page 2 Instructions Congratulations on the purchase of your new Batca LD-9. This gym will provide you with a lifetime of enjoyment to meet your strength training needs. Batca Fitness Systems strives to build the best quality gyms and to package these gyms in such a way to avoid any damage during shipping.
- Page 3 Frame Components Accessories ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM PART NUMBER DESCRIPTION QTY. BFM-51173 Weight Stack Pull Pin BFP-10905 LD-9 Cage BFP-10907 Right Leg Support Upholstery BFP-10906 Left Leg Support BFP-10914 Chin/Dip Pole BFP-10849 Guide Rod Plate ITEM PART NUMBER DESCRIPTION QTY.
- Page 4 Bolt Length Note: Bolt length is measured from the underside of the head of the bolt. Batca Fitness Systems LD-9 Owner's Manual...
- Page 5 www.batcafitness.com LD-9 Owner’s Manual...
- Page 6 Batca Fitness Systems LD-9 Owner's Manual...
- Page 7 www.batcafitness.com LD-9 Owner’s Manual...
- Page 8 Part # Description BFP-10905 LD-9 Cage BFP-10907 Right Leg Support BFP-10906 Left Leg Support BFP-51747 SHCS 3/8” x 3” BFP-51799 SHCS 3/8” x 5” BFH-50204 3/8” Curved Washer BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-9 Owner's Manual...
- Page 9 Step 2: Make sure all bolts are tightened EXCEPT FOR THE FOUR BOLTS ON THE SHROUD before moving on. Do not tighten the bolts for the shroud until step 6. To counter balance the seat, pin the weight stack on the third plate from the top as shown in the figure to the right.
- Page 10 3/8” round side of a tube there is to be a Item # Part # Description CURVED WASHER instead of a 3/8” FLAT WASHER. BFP-51742 Right Weight Stack Shroud BFP-51741 Left Weight Stack Shroud Batca Fitness Systems LD-9 Owner's Manual...
- Page 11 Step 4: The Hole in the Carriage is offset from the center of the tube. When the Carriage is installed, the hole should be towards the top of the machine. Figure 4 Item # Part # Description BFP-10909 Right Dip Arm BFP-10908 Left Dip Arm BFP-10910...
- Page 12 BFP-10915 Chin/Dip Handle Bar Assembly BFP-52013 Bent Anti-Deflection Plate BFP-51750 SHCS 3/8” x 2 3/4” All Flat Washers and Nylocks are 3/8” unless BFP-51884 SHCS 3/8” x 4 1/4” otherwise noted. BFH-50146 3/8” Flat Washer BFH-50157 3/8” Nylock Batca Fitness Systems LD-9 Owner's Manual...
- Page 13 Step 6: Figure 6 Item # Part # Description BFP-10911 Adjustment Plate BFP-10912 Knee Support BFP-51995 Axle BFP-52378 FHSCS 3/8” x 2 1/2” All Flat Washers and Nylocks are 3/8” BFP-52345 SHCS 3/8” x 4” unless otherwise noted. Anywhere a BFH-50204 3/8”...
- Page 14 57 3/4” Item # Part # Description CAB-15013 Weight Stack to Cable Lockout Cable CAB-15006 BFH-50227 Cable Strap End BFH-50351 1 3/8” Shoulder Bolt BFP-51759 SHCS 3/8” x 2” BFH-50267 5/16 Nylock BFH-50157 3/8” Nylock Batca Fitness Systems LD-9 Owner's Manual...
- Page 15 Step 8: Figure 8 Item # Part # Description BFP-51797 Placard Plate BFP-51981 Diamond Foot Plate BFP-52378 Knee Pad BFP-52340 BHSCS 3/8” x 3/4” BFH-50144 FHSCS 3/8” x 1” BFP-51750 SHCS 3/8” x 2 3/4” All Flat Washers and Nylocks are 3/8” unless BFH-50147 3/8”...
- Page 16 Clean guide rods with a lint-free cloth and apply a thin layer of silicone lubricant (Part # BFH- 50262) to each guide rod. This will ensure a glass smooth performance from your weight stack. Batca Fitness Systems LD-9 Owner's Manual...
- Page 17 Cable Adjustments Adjust cables to proper tension from any of the locations shown below. Note: All cables with threaded adjustable ends must have at least 1/2” of the threads threaded in to its counterpart. It is very important that the 1/2” Jam Nut be wrench tight- ened to the counterpart to ensure that the threaded adjustable end of the cable does not back out of its counterpart.
- Page 18 Preventive Maintenance Batca Fitness Systems strives to give you the very best in quality, performance and safety through carefully engineered designs and excellent workmanship. In order to maintain this high level of quality the preventative maintenance schedule below should be followed.
- Page 19 Improper installation, improper assembly or follow-up maintenance along with installation of parts or accessories not originally intended for products of Batca Fitness Systems are also not covered by this warranty. Only genuine Batca parts should be used for replacement, repair, and maintenance for this warranty to apply.
- Page 20 Layout Diagram The LD-9 has a layout dimension of 3’-6” (width) x 4’-6” (length) x 7’-3” (height). There should be a minimum of 18”, preferably 24”, of working space around the entire unit. Batca Fitness Systems LD-9 Owner's Manual...
