Dahua Technology WizSense IPC-HFW3441E-SA Operation Manual page 144

5.1.1.3 Snapshot Linkage
After snapshot linkage is configured, the system can automatically alarm and take snapshots when
an alarm is triggered.
After Motion is enabled in Snapshot, the system takes snapshots when an alarm is triggered. For
querying and setting snapshot storage location, see "4.5.2.5 Path".
5.1.1.3.1 Setting Snapshot Plan
According to the configured snapshot plan, the system enables or disables snapshot at
corresponding time.
Step 1 Select Setting > Storage > Schedule > Snapshot.
Step 2 Select snapshot type and set time period.
Green represents normal snapshot plan (such as timing snapshot); yellow represents
motion snapshot plan (such as snapshot triggered by intelligent events); red represents
alarm snapshot plan (such as snapshot triggered by alarm-in).
● Method one: Select snapshot type, such as Normal, and directly press and drag the left
mouse button to set time period for normal snapshot on the timeline.
● Method two: Enter an actual time period.
1. Click Setting next to a day.

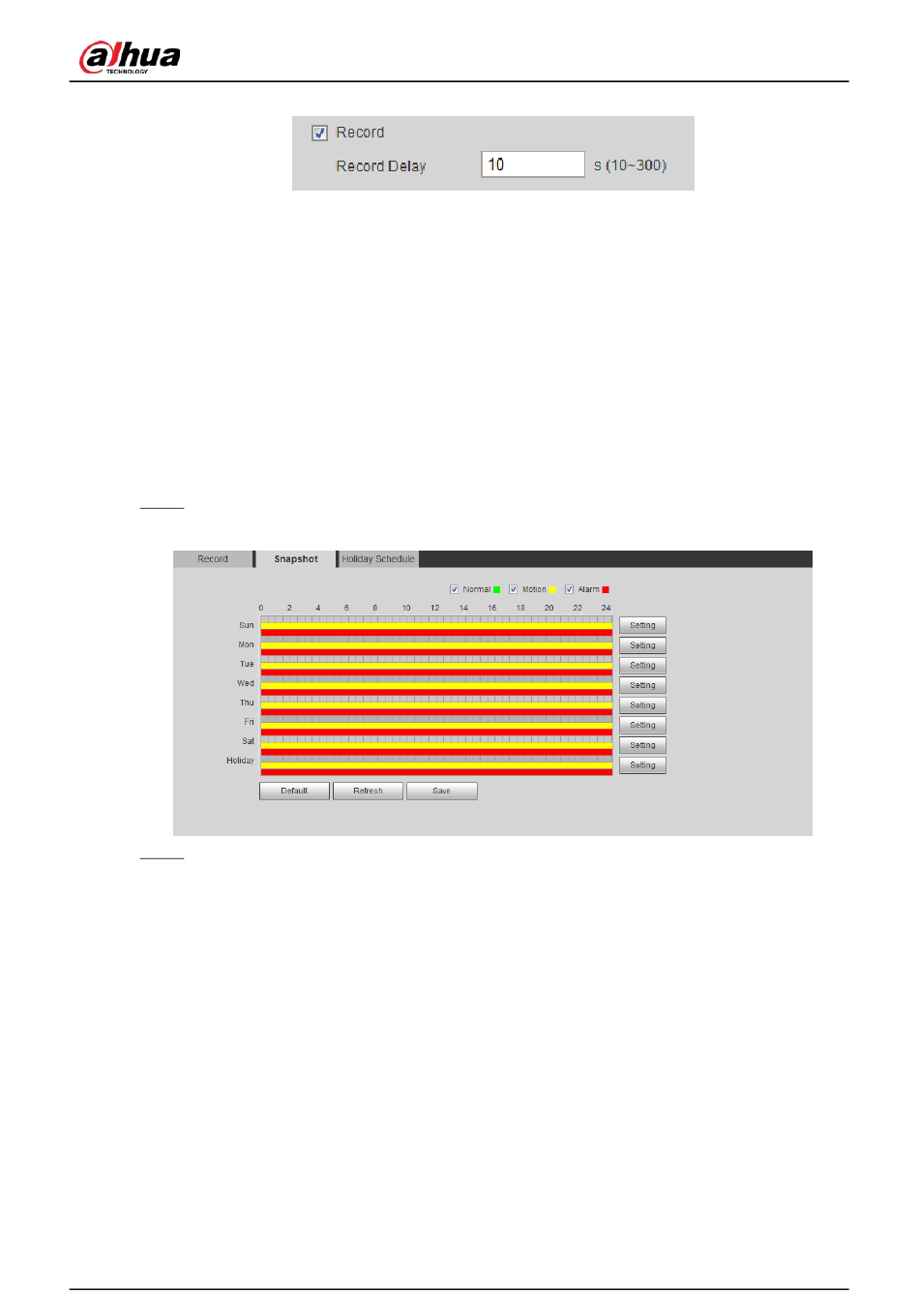

Figure 5-6 Record linkage
Figure 5-7 Snapshot
131
Operation Manual
