Summary of Contents for Dahua Technology IPC-HFW5431E-Z

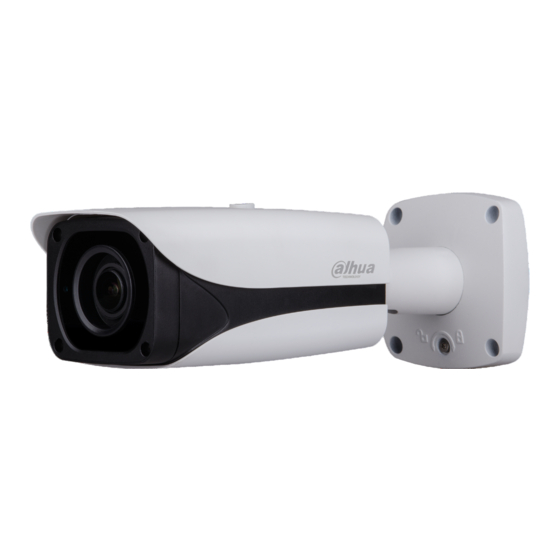

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Dahua IPC- HFW5431E-Z o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Dahua HD IR Bullet Network Camera Quick Start Guide Version 1.0.0 Dahua Vision Technology Co. LTD...
- Page 2 Welcome Thank you for purchasing our Network camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference! Important Safeguards and Warnings 1．Electrical safety ...
- Page 3 3. Operation and Daily Maintenance Please do not touch the heat dissipation component of the device directly in order to avoid scald. Please do not dismantle the device; there is no component which can be fixed by users themselves in the machine.
- Page 4 Please contact the customer service for the latest procedure and supplementary documentation. There may be deviation between the actual value of some data and the value provided in the manual due to the reasons such as the real environment is not stable and so on. Please refer to the company’s final explanation if there is any doubt or dispute.
-
Page 5: Table Of Contents
Table of Contents Device Structure ......................... 1 Device External Cable ....................1 Framework and Dimension ..................2 Alarm Setup ........................2 Device Installation ........................5 Network Configuration ....................... 9 Modify IP Address ......................9 Login WEB Interface ....................10... -
Page 6: Device Structure
1 Device Structure 1.1 Device External Cable Note: The following figure is for reference only, which is used to know the function of cable port. There are differences about cable structure between different models, please refer to the actual product for more details. You can refer to the following figure for cable information. -
Page 7: Framework And Dimension
Port Name Name Note Alarm output port. It is to output the alarm signal to the alarm device. ALARM_NO NO: normal open alarm output port. It must be used with ALARM_COM. ALARM_COM Alarm output public port. I/O Port Alarm input port 1. It is to receive the on-off signal from ALARM_IN1 the external alarm source. - Page 8 Figure 1-3 Alarm input, output description: Step 1 Connect alarm input device to the alarm input of I/O port cable. Step 2 Connect alarm output device to the ALARM_OUT and ALARM_OUT_GND of I/O port cable, Alarm output is the relay switch output; alarm output port can only be connected to NO (normally open) alarm device.
- Page 9 Figure 1-5 Figure 1-6 Mode A: Level application. Alarm output high and low level, alarm output is OC; it needs to increase pull- up resistance externally to work normally. Max external pull-up level is 12V, max port current is 300mA (peak). After external pull-up resistance is increased, the default output signal is high level (external pull-up...
-
Page 10: Device Installation
2 Device Installation Important Please make sure the installation surface can min support the 3X weight of the camera and the bracket. Figure 2-1 Please see Figure 2-1. Step 1 SD card installation (Optional) You can see the SD installation card slot, analog output, two direction button and reset button after you open the lower cover. - Page 11 Note: Motorized vari-focal series devices are equipped with motorized lens by default, which doesn’t need manual adjustment; meanwhile the devices with two direction buttons support zoom and focus via the two direction buttons on the panel. You can connect the analog output port to the TV monitor to check image via analog output cable.
- Page 12 Figure 2-3 1. Use screwdriver (in accessories bag) to loosen adjusting screw. 2. Adjust the device in all possible directions, and set its monitoring direction according to use requirement. 3. Use screwdriver to tighten the adjusting screws. Step 7 Waterproof connector installation for network port; see Figure 2-4 for more details. Note: Please implement this step if the device is equipped with network port waterproof connector and it is used outdoors.
- Page 13 3. Put the main body of waterproof connector on the network port and rotate it clockwise to lock the network port and waterproof connector firmly. 4. Put the waterproof locking cover on the main body of waterproof connector and rotate it clockwise to lock the waterproof connector and waterproof locking cover firmly.
-
Page 14: Network Configuration
3 Network Configuration The IP address of all the cameras is the same when leaving factory (default IP192.168.1.108), in order to make the camera get access to the network smoothly, please plan the useable IP segment reasonably according to the actual network environment. 3.1 Modify IP Address IP address can be acquired and modified through quick configuration tool for the cameras which are accessed via wired network, it needs to connect wired network to configure wireless... -
Page 15: Login Web Interface
See Figure 3-2 for more details. Figure 3-2 3.2 Login WEB Interface Note: Different devices may have different WEB interfaces, the figures below are just for reference, please refer to the document <<WEB Operation Manual>> in the disk and the actual interface for more details Step 1 Open IE and input the modified camera IP address in the address bar. - Page 16 Figure 3-3 Step 3 Install controls according to the system prompt; see Figure 3-4 for the WEB main interface. Please modify the administrator password as soon as possible after you successfully logged in. Figure 3-4...
- Page 17 Note: This quick start guide is for reference only. Slight difference may be found in user interface. All the designs and software here are subject to change without prior written notice. If there is any uncertainty or controversy, please refer to the final explanation of us. ...
