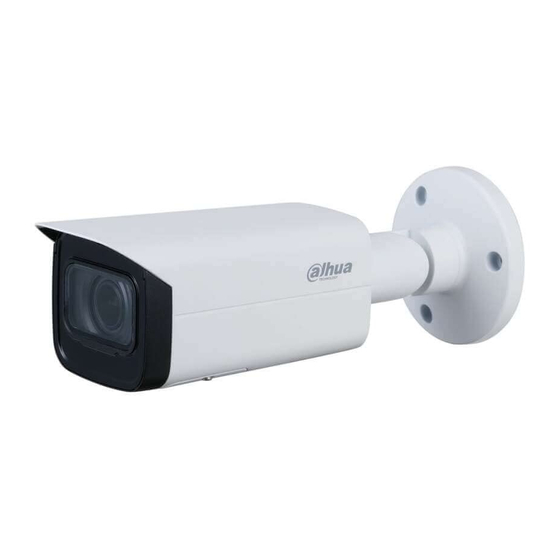

- Page 1 Bullet Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.3...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operation of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation. ● There might be deviations in the description of the technical data, functions and operations, or errors in the print.
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Introduction ......................................1 1.1 Cable ........................................ 1 1.2 Connecting Alarm Input/Output ............................2 2 Network Configuration ..................................3 2.1 Initializing the Camera ................................3 2.2 Changing the Device IP Address ............................4 2.3 Logging in to Web Page ................................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port Name Description Inputs 12 VDC power supply, and supports power supply at the same time. -
Page 9: Connecting Alarm Input/Output
Quick Start Guide 1.2 Connecting Alarm Input/Output The camera can connect to external alarm input/output devices through digital input/output. Alarm input/output is available on select models. Step 1 Connect the alarm input device to the alarm input end of the I/O port. Device collects different states of alarm input port when the input signal is idling and being grounded. -
Page 10: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP setting can be finished with the ConfigTool or on web page. For more information, see web operation manual. ● Device initialization is available on select models, and it is required at first-time use and after device is reset. -
Page 11: Changing The Device Ip Address
Quick Start Guide Next. Select Auto-check for updates as needed, and then click OK to initialize the device. Step 4 If initialization failed, click to see more information. Step 5 Click Finish. 2.2 Changing the Device IP Address ● You can change the IP address of one or more devices at a time. This section is based on changing IP addresses in batches. -
Page 12: Installation
Quick Start Guide 3 Installation 3.1 Packing List ● The tool required for the installation such as electric drill is not provided in the package. ● The operation manual and related tool information are contained in the disk or the QR code. Figure 3-1 Packing list 3.2 Dimensions Figure 3-2 Dimensions: Model A (mm [inch]) -
Page 13: Installing The Camera
Quick Start Guide Figure 3-4 Dimensions: Model C (mm [inch]) 3.3 Installing the Camera 3.3.1 Installation Method Figure 3-5 Installation method 3.3.2 Installing SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Press the reset button for 10 seconds to reset the device. - Page 14 Quick Start Guide Figure 3-7 Cable going through the side cable tray Figure 3-8 Cable going through the mounting surface...
-
Page 15: Optional) Installing Waterproof Connector
Quick Start Guide 3.3.4 (Optional) Installing Waterproof Connector This part is needed only when a waterproof connector comes with the camera and the camera is used outdoors. Figure 3-9 Install waterproof connector 3.3.5 Adjusting Lens Angle Figure 3-10 Adjust lens angle... - Page 16 Quick Start Guide...
