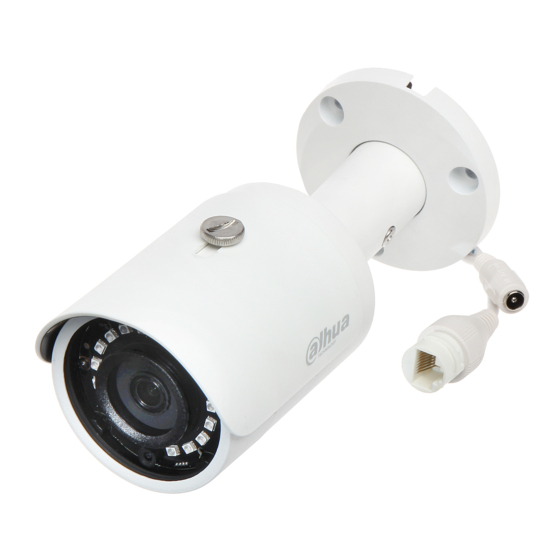

- Page 1 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Version 1.0.0 Zhejiang Dahua Vision Technology Co., LTD...
- Page 2 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Welcome Thank you for purchasing our network cameras. This user’s manual is designed to be a reference tool for using your product. Please read the following safeguards and warnings carefully before you use this series product. Please keep this user’s manual well for future reference.
- Page 3 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Do not directly touch the heat dissipation component of the device to avoid scald. Do not dismantle the device because there is no component that can be fixed by users themselves. Otherwise, it might cause water leakage or bad image due to unprofessional dismantling.
- Page 4 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Disclaimer This manual is for reference only. Please refer to the actual product for more details. Minor differences might be found in user interface, and there might be deviation between the actual value of some data and the value provided in the manual due to the reasons such as the real environment is not stable.
- Page 5 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Please refer to the disk for more details, check and download the corresponding user’s manual and tool. Before installation, please open the package and check all the components are included. ...
-
Page 6: Table Of Contents
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Table of Contents Framework ........................... 1 Device External Cable ....................1 Framework and Dimension ..................1 Device Installation ........................2 Install SD Card (Optional) ................... 2 Fix Device ........................2 Connect Device Cable .................... -
Page 7: Framework
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 1 Framework 1.1 Device External Cable Note The following figure is for reference only; it is used to know the function of cable port. Different devices may have different cable. Figure 1-1 Please refer to Table 1-1 for detailed information. -
Page 8: Device Installation
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 2 Device Installation 2.1 Install SD Card (Optional) Note Please install SD card when the device is equipped with SD card slot and it needs to use SD card. -
Page 9: Connect Device Cable
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 2-2 Step 1 Dig holes on the mounting surface. Step 2 Take out expansion bolts and insert them into the mounting holes and lock them firmly. Step 3 Lead the cable out from the cable exit hole of the device, you can select bottom cabling or side cabling. -
Page 10: Adjust Device Angle
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 2-3 Step 1 Keep the convex groove outward and install the rubber ring into the network port, keep the smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of the waterproof connector. - Page 11 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Step 2 Adjust the device UDLR, set the monitoring direction according to the application requirement. Step 3 Use cross screwdriver to tighten the adjusting screwdriver firmly.
-
Page 12: Network Configuration
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide 3 Network Configuration You can initialize the device and modify IP address via "Quick Configuration Tool", for Wi-Fi network camera, it needs to connect to wired network to configure Wi-Fi parameters; You can also initialize device and modify IP address on the WEB interface. -
Page 13: Modify Ip Address
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 3-1 Step 5 Set new password and confirm password, select Email Address and input email address. Note The password can be set as 8 to 32 characters; it can be a combination of number(s), letter(s) and symbol(s) with at least two kinds of them (excluding “'”,“"”,“;”,“:”,“&”). -
Page 14: Login Web Interface
Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Step 4 Select the devices whose IP addresses need to be modified, and then click The system will display the dialog box of Modify IP Address, which is shown in Figure 3-2. Figure 3-2 Step 5 Set the mode as Static, and enter the planned start IP, subnet mask and gateway. - Page 15 Dahua HD Mini IR Waterproof Bullet Network Camera Quick Start Guide Figure 3-3 Zhejiang Dahua Vision Technology Co., Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC. Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com Website: www.dahuasecurity.com...
