Summary of Contents for Dahua Technology IPC-HFW1239TL1-A-IL
- Page 1 Bullet Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.4...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operations of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide We are not liable for losses incurred due to operating of the product in ways that are not in ● compliance with the manual. The manual will be updated according to the latest laws and regulations of related jurisdictions. ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements Transport the device under allowed humidity and temperature conditions. - Page 5 Quick Start Guide We recommend you use the device with a lightning protection device for stronger protection ● against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. Ground the function earthing portion of the device to improve its reliability (certain models ●...
- Page 6 Quick Start Guide Use the accessories suggested by the manufacturer. Installation and maintenance must be ● performed by qualified professionals. Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on ● the lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently wipe away the dirt.
-
Page 7: Table Of Contents
Quick Start Guide Contents Foreword........................................I Important Safeguards and Warnings..............................III 1 Appearance.......................................1 2 Cable..........................................2 3 Network Configuration..................................3 3.1 Initializing the Camera................................3 3.2 Changing the Device IP Address............................4 3.3 Logging in to the Webpage..............................4 4 Installation.........................................5 4.1 Packing List....................................5 4.2 Dimensions.................................... -
Page 8: Appearance

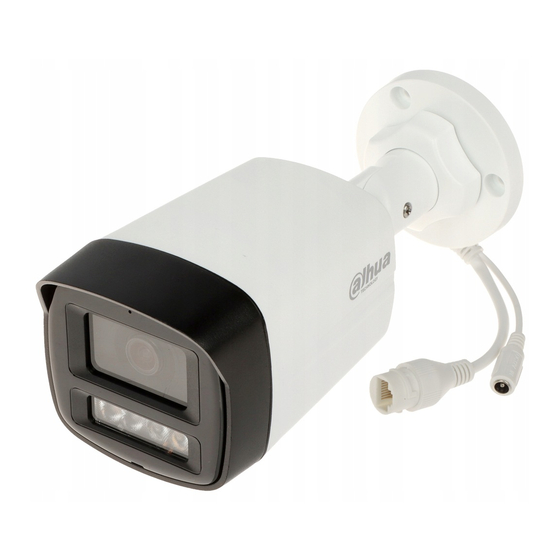

Quick Start Guide 1 Appearance This manual is available for the following appearance. Figure 1-1 Appearance... -
Page 9: Cable
Quick Start Guide 2 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and prevent short circuits from occurring. For details, see the FAQ manual. Figure 2-1 Cables Table 2-1 Cable information Port Name Description Inputs 12 VDC power. -
Page 10: Network Configuration
Quick Start Guide 3 Network Configuration Device initialization and IP configurations can all be managed with the ConfigTool or through the webpage. For more information, see the web operation manual. Device initialization is available on select models, and is required at first-time use and after the ●... -
Page 11: Changing The Device Ip Address
Quick Start Guide If initialization failed, click to see more information. Click Finish. Step 4 3.2 Changing the Device IP Address Background Information You can change the IP address of one or more devices at a time. This section is based on ●... -
Page 12: Installation
Quick Start Guide 4 Installation 4.1 Packing List Tools required for installation, such as the electric drill, are not included in the package. ● The operation manual and information on the tools are on the disk or the QR code. ●... -
Page 13: Installing The Camera
Quick Start Guide Figure 4-3 Dimensions: Model B (mm [inch]) 4.3 Installing the Camera 4.3.1 Installation Methods Figure 4-4 Installation methods... -
Page 14: Attaching The Camera
Quick Start Guide 4.3.2 Attaching the Camera Make sure that the mounting surface is strong enough to hold at least three times the weight of the camera and bracket. Figure 4-5 Cable going through the side cable tray... -
Page 15: Optional) Installing The Waterproof Connector
Quick Start Guide Figure 4-6 Cable going through the mounting surface 4.3.3 (Optional) Installing the Waterproof Connector This section is only necessary if a waterproof connector is included in your package, and the device is being installed outdoors. -
Page 16: Adjusting The Lens Angle
Quick Start Guide Figure 4-7 Install the waterproof connector 4.3.4 Adjusting the Lens Angle Figure 4-8 Adjust the lens angle...
