Labconco CentriVap Concentrators Quick Start Installation Manual page 6



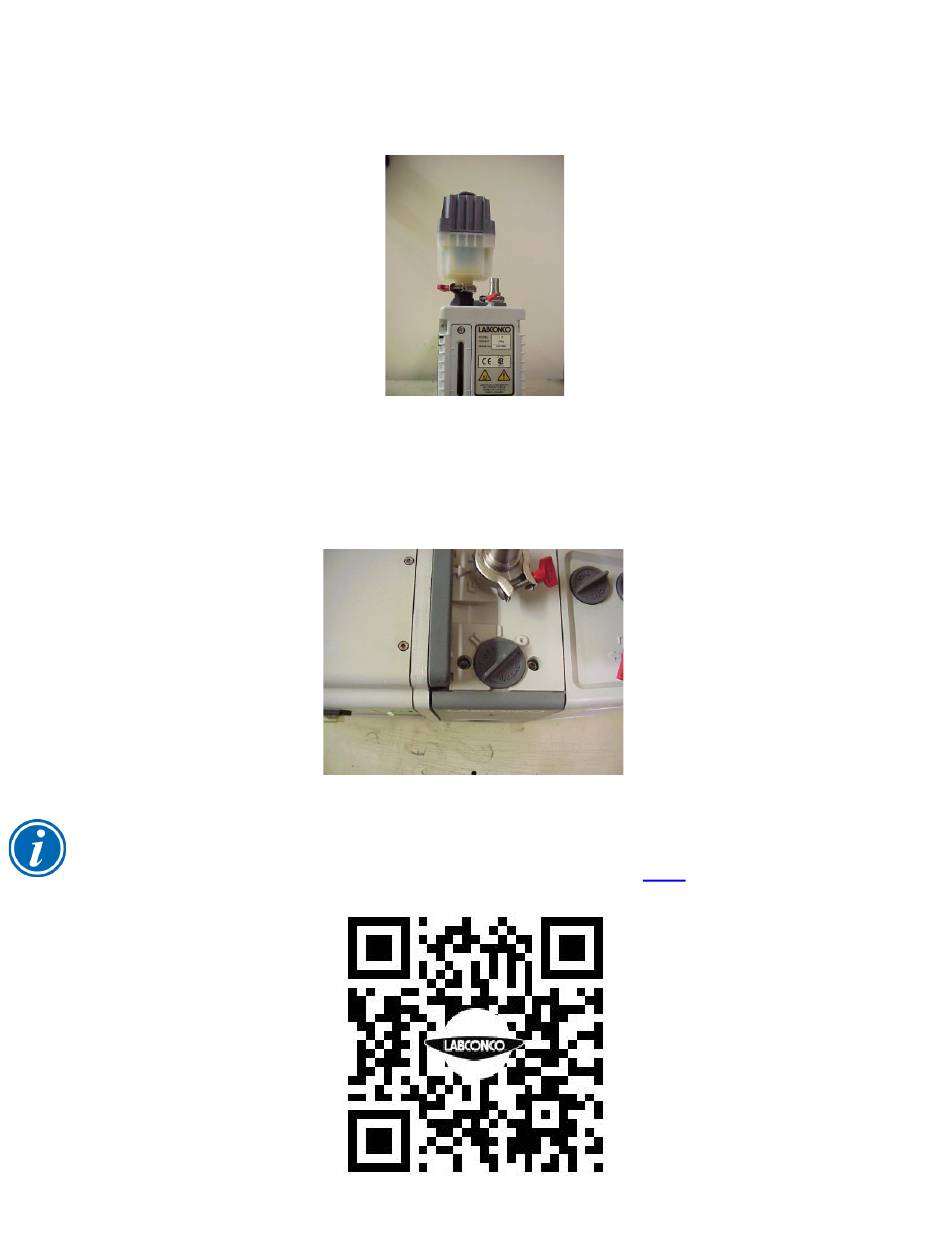

Install Exhaust Filter
o
NOTE: Rotary vane vacuum pumps must have an exhaust filter to prevent
oil mist from exiting the pump and depleting the oil supply.
o
On rotary vane pumps only, attach the exhaust filter to the exhaust port.
Insert filters and centering rings if present.
o
Place clamp and secure Exhaust Filter housing to exhaust fitting.

Open the cap labeled oil and fill the pump with oil until the oil level is between the
lines on the sight gauge on the end of the pump housing.

Verify that the vacuum pump voltage setting agrees with the Concentrator voltage
shown on the serial number label.

Set the gas ballast to closed or minimum position.
This Quick Start Installation Guide may not provide all the information necessary
for your particular vacuum pump installation. For further details including user's
manuals and installation videos, scan the QR code or click here.
Part Number 1071000, Rev. -, ECO N235 Page 6 of 7
