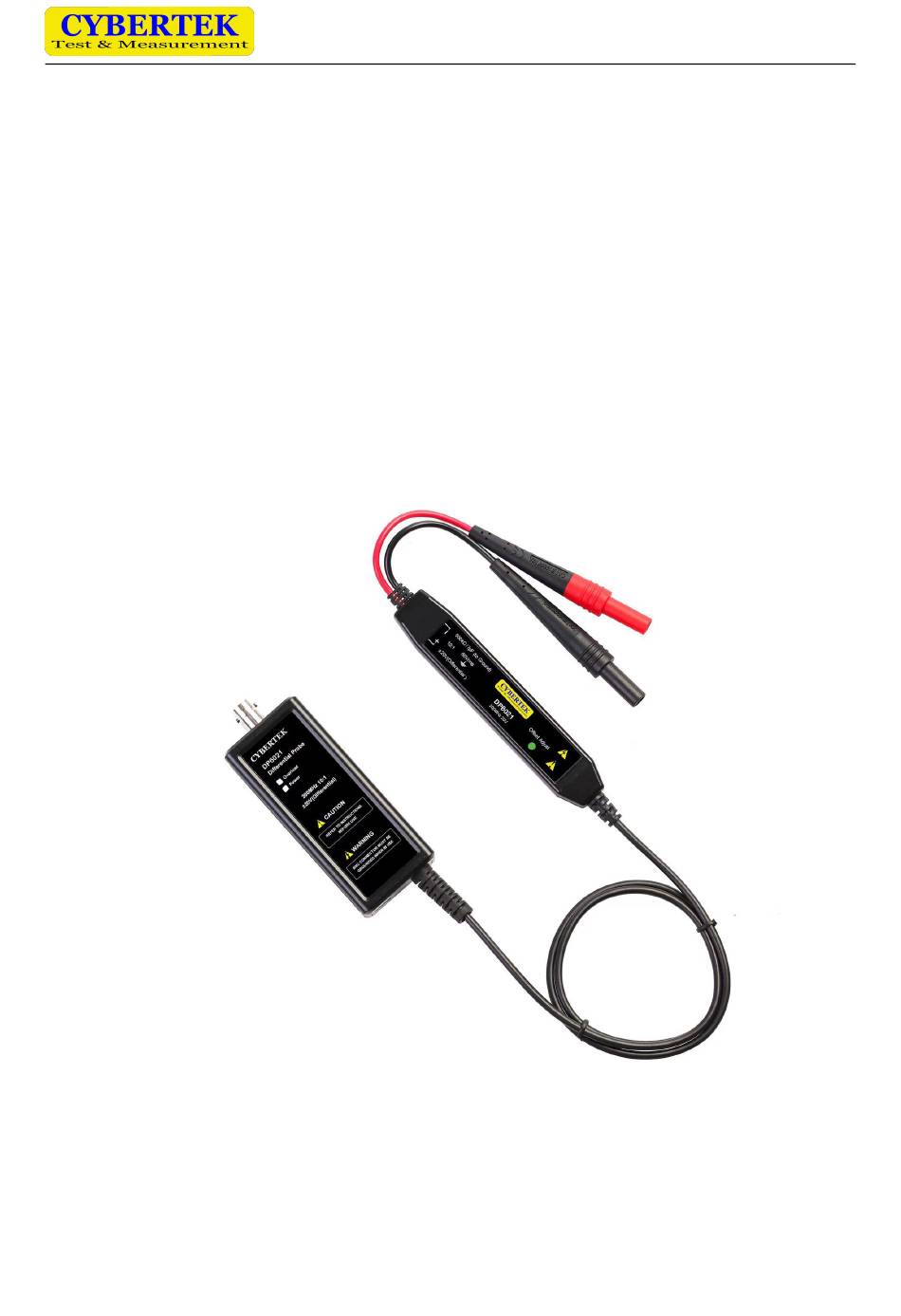

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd High Frequency Low Voltage Differential Probe DP6021 （20V/ 200MHz） Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Check the external surface of the probe before testing. If there’s any damage upon the probe, please stop the usage. Power the probe with the standard adapter. DP6021 Brief Description Maximum input Type Bandwidth Attenuation ratio differential voltage...
-
Page 3: Product And Accessories
Shenzhen Zhiyong Electronics Co., Ltd 1. Summary DP6021 probe is the high frequency low voltage differential probe with float ground testing function. Test voltage ±20V(DC+Pk), maximum bandwidth up to 200MHz, with 10:1 attenuation setting, can largely decrease the circuit load. - Page 4 Shenzhen Zhiyong Electronics Co., Ltd Output Port: standard BNC output port can be connected to the oscilloscope of any brand. The input impedance of the oscilloscope is required to be 50Ω, or connect to thorough 50Ω load, with input impedance set to 1MΩ ■...
-
Page 5: Electronics Specification
Shenzhen Zhiyong Electronics Co., Ltd 4.Electronics Specification Bandwidth(-3dB) 200MHz(see Fig 1) Rise time ≤1.75ns Accuracy ±1% Attenuation ratio 10:1 (DC + Peak AC) ±20V Maximum differential voltage Common mode voltage ±60V Maximum rated input voltage (to earth) ±60V Single to earth 500kΩ... -
Page 6: Environmental Characteristics
Shenzhen Zhiyong Electronics Co., Ltd Note: in order to reduce waveform oscillation while reaching the maximum bandwidth, please apply banana jack. Users can solder the banana jack onto the PCB board or the pins of the MOSFET under test as shown below: 5. -
Page 7: Operating Steps
Shenzhen Zhiyong Electronics Co., Ltd 7. Operating Steps The range of the voltage under test should be estimated before the test. Voltage surpassing the measuring range could possibly damage the probe and the product. Connect the input and output cable to the probe and connect the probe with oscilloscope or other test ... - Page 8 Shenzhen Zhiyong Electronics Co., Ltd CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000 Q Q: 400 852 0005 Email: cybertek@cybertek.cn © Zhiyong Electronics, 2024 URL: http://www.cybertek.cn...
