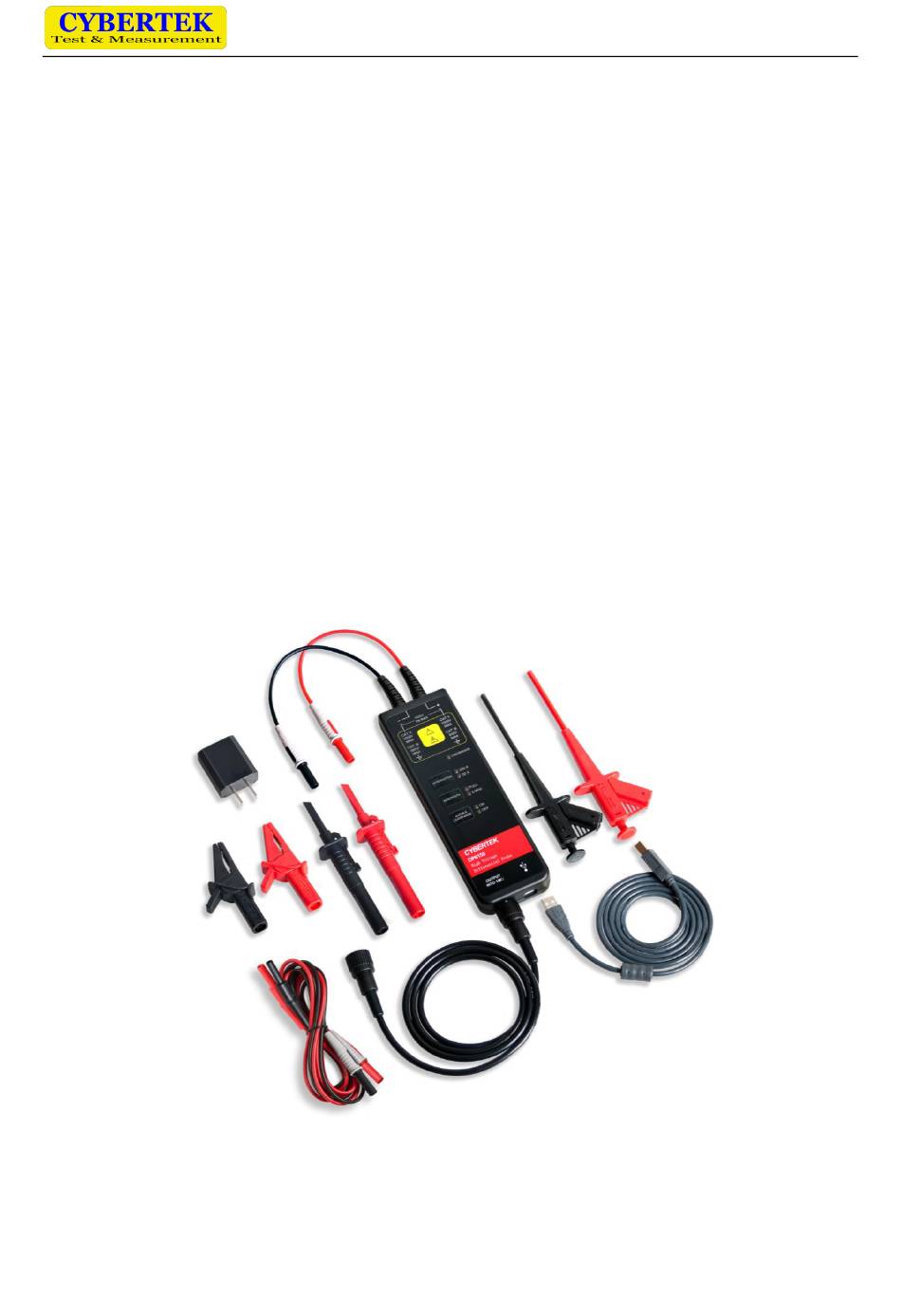

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. High Voltage Differential Probes DP6000 Series DP6070 700Vpk/ 70MHz DP6150 1500Vpk/ 70MHz DP6150A 1500Vpk/100MHz DP6280 2800Vpk/100MHz DP6700 7000Vpk/ 70MHz DP6700A 7000Vpk/100MHz ShenZhen ZhiYong Electronic Co.,Ltd www.cybertek.cn...
-
Page 2: Introduction
While BNC lines connect to the oscilloscope or other devices, ensure the BNC terminal grounding. Please check the probe skin if there is any breakage, stop using it if happen. Select the product standard adapter power supply. DP6000 Series Brief Description Maximum Input Modal Bandwidth Attenuation... -
Page 3: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd. Contents Introduction………………………………… ………………………………………………………..1 DP6000 Series Brief Description…… … …… ……………………… ……… ……….……………1 Summary……… …………………………………………………………… ………..………..…….3 Application……………… …… ………………………………… ………………………………….3 Products and Accessories………………………… ……… …………… …….……………….…… 4 Main part of probe………………………………………………………………………..….…..4 Accessories………………………………………………………………………………..……..5 Specifications……………………………………………………………………………..…………..7 Machinery specification…………………………………………………………………………..…. 8 Environment Specifications……………………………………………………………………..……9... -
Page 4: Summary
Shenzhen Zhiyong Electronics Co., Ltd. 1. Summary DP6000 Series High Voltage Differential Probes are designed for the measurement of high voltage differential signal, to meet the demand for floating measurement. The probes have a max 100MHz bandwidth and 7000V differential voltage which can meet the majority measurement applications. -
Page 5: Products And Accessories

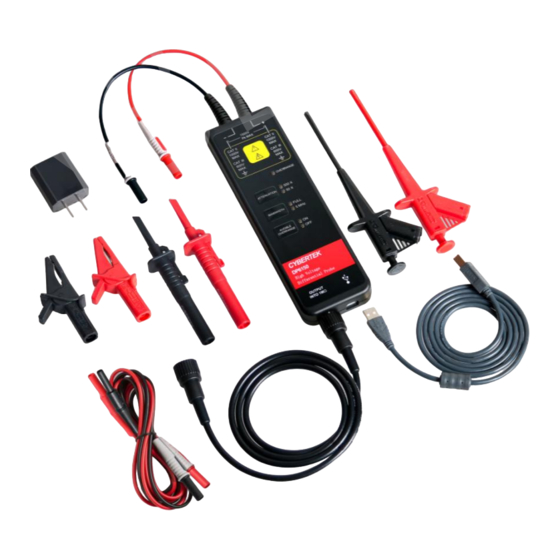

Shenzhen Zhiyong Electronics Co., Ltd. 3. Products and Accessories ■ Main part of probe As DP6150A for example, different voltage, range, bandwidth would be in different products. Detailed instructions Integral input leads : The integral input leads extend 24cm from the probe body. Connect the leads directly to your circuit, or use the extender leads and other accessories. -
Page 6: Accessories
Shenzhen Zhiyong Electronics Co., Ltd. AUDIBLE OVERRANGE: When test range exceeds probe range, audible and visual alarm will start; the function is to control buzzer alarm on or off, ON is to open audible alarm and OFF closes the alarm. ... - Page 7 Shenzhen Zhiyong Electronics Co., Ltd. Product standard accessories description DP6070 DP6150(A) DP6280 DP6700(A) Modal CATIII 1000V Alligator Clips(CK-261) CATIV 600V CATIII 1000V Alligator Clips(CK-262) CATIV 600V CATIII 1000V Pincer Clips(CK-281) CATII 1000V Hook Clips(CK-284) Extender Leads CATIII 1000V (CK-301) Double-ended BNC connector coaxial line Output Line( (CK-310) USB Line（CK-315）...
-
Page 8: Specifications
Shenzhen Zhiyong Electronics Co., Ltd. 4. Electric Specification Modal DP6070 DP6150(A) DP6280 DP6700(A) DP6150 70MHz DP6700 70MHz 70MHz 100MHz Bandwidth(-3dB） DP6150A 100MHz DP6700A 100MHz DP6150 ≤5ns DP6700 ≤5ns ≤5ns ≤3.5ns Rise time DP6150A ≤3.5ns DP6700A ≤3.5ns ±2% ±2% ±2% ±2% Accuracy Range selection(Attenuation 10X/100X... -
Page 9: Machinery Specification
Shenzhen Zhiyong Electronics Co., Ltd. Figure 1：DP6070 Differential Mode Voltage VS Frequency Figure 2：DP6150(A) Differential Mode Voltage VS Frequency Figure 3： DP6280 Differential Mode Voltage VS Frequency Figure 4： DP7000(A) Differential Mode Voltage VS Frequency 5. Mechanical Specification Model Parameters Input leads Approx 24cm Extender leads(CK-301) -
Page 10: Environment Specifications
Shenzhen Zhiyong Electronics Co., Ltd. 6. Environmental Characteristics Model Parameters 0℃～50℃ Operating temperature -30℃～70℃ Storage temperature ≤85%RH Operating humidity ≤90%RH Storage humidity 3000m Operating altitude 12000m Storage altitude 7. Operating steps You should estimate the tested voltage amplitude before testing, please do not use if exceeds the voltage range, because probably the probe will be damaged. -
Page 11: Precautions For Use
Shenzhen Zhiyong Electronics Co., Ltd. 9. Safety Notices: Note Please try to wind the input leads when testing, which is better for eliminating noise, to improve the ability of high frequency response. Please view below for the winding method: ... -
Page 12: Performance Verification
Shenzhen Zhiyong Electronics Co., Ltd. 10. Performance Verification The below operation is for performance verification of the electric specification, requirement for test equipment is shown below: Equipment Minimum Requirements Usages Bandwidth≥100MHZ;Accuracy≦1.5%, e.g. Oscilloscope Displays probe output Tektronix MSO/DSO4000 Standard signal Test bandwidth;... -
Page 13: Installation
Shenzhen Zhiyong Electronics Co., Ltd. 10.1 Setup Connect power adapter to voltage probe, which turns on green light, to ensure accuracy, test the probe index after 20 minutes. Uncover the red black plastic cover of the BNC-male-to-dual binding post. 10.2 DC Accuracy ... -
Page 14: Dc Common Mode Rejection Ratio (Cmrr)
Shenzhen Zhiyong Electronics Co., Ltd. Attenuatio Signal source voltage, Expected probe rise Rising Model n Rate frequency setting time time 20Vp-p 70MHz ≤5ns DP6070 100X 20Vp-p 70MHz ≤5ns 20Vp-p 70MHz ≤5ns DP6150 500X 20Vp-p 70MHz ≤5ns 20Vp-p 100MHz ≤3.5ns DP6150A 500X 20Vp-p 100MHz ≤3.5ns... -
Page 15: Test Records Form
Shenzhen Zhiyong Electronics Co., Ltd. 10.5 Testing Record Form Testing Record Form Product Serial NO: Test temperature: Testing Date： Test Humidity: Test model: Lower limit Test result Upper limit 98mV 102mV DP6070 100X 98mV 102mV 98mV 102mV DP6150(A) 500X 98mV 102mV DC Accuracy 100X... -
Page 16: Warranty
1 pcs 1 pcs 1 pcs 1 pcs NOTE: The above “--” refers to non-standard accessory of this model CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO.,LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel:...
