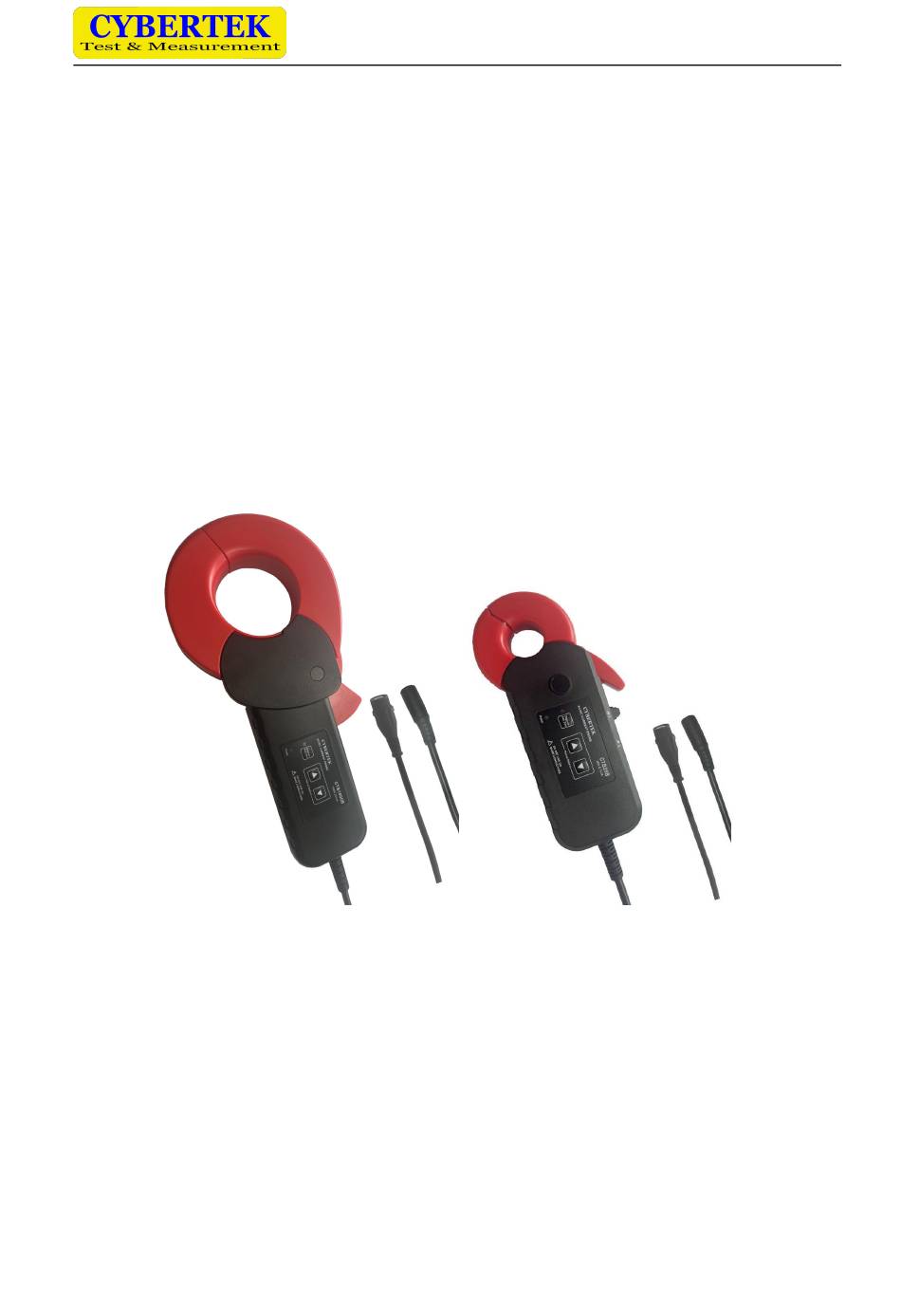

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd. AC/DC High Accuracy Current Probe CTB20B (20A/1MHz) CTB200B (200A/500kHz) CTB500B (500A/100kHz) CTB1000B (1000A/20kHz) Shenzhen Zhiyong Electronics Co., Ltd. www.cybertek.cn...
-
Page 2: Preface
Shenzhen Zhiyong Electronics Co., Ltd. Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;... - Page 3 Shenzhen Zhiyong Electronics Co., Ltd. Warn Do not use the top part of the clamp to fix the foreign matter. This could possibly lower the performance of the sensor characteristics or malfunction the switch. Do not input current to the device when the power supply is cut off, or the device will possibly be ...
-
Page 4: Table Of Contents
Shenzhen Zhiyong Electronics Co., Ltd. Index Preface………………………………………………………………………………………………….……1 Summary……………………………………………………………………………………………….……4 Application……………………………………………………………………………………………….……4 Product Description……………………………………………………………………………………….…4 Option Device………………………………………………………………………………………….…5 Product Electronic Specification…………………………………………………………………….……5 Machinery Specification……………………………………………………………………………..……..…9 Environment Characteristics…………………………………………………………………….…….…..9 Operating Methods…………………………………………………………………………….…….……..…9 Note During Operation………………………………………………………………. ….…………..…….9 Measurement Steps………………………………………………………………………………..…….10 Packing List………………………………………………………………………………….……….….…11... -
Page 5: Summary

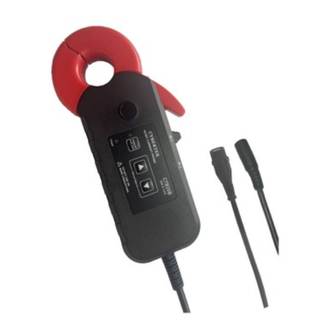

Shenzhen Zhiyong Electronics Co., Ltd. 1. Summary CTB series current probe is a kind of current probe which can measure DC and AC at the same time. It is a clamp type current sensor which can be opened / closed for AC / DC current measure. Its characteristics include: high precision, typical value 0.3%;... -
Page 6: Option Device
Shenzhen Zhiyong Electronics Co., Ltd. Jaw:CTB20B/CTB200Bdiameter 20mm,CTB500B/CTB1000B diameter 50mm. Power indicator: lighted green indicates power on. Degaussing indicator: lighted red when degaussing button was pressed. After the degaussing, indicator will be off. Handle auto degaussing button: After frequent usages, the residual field on the probe will influence the accuracy of the device. - Page 7 DC-100Hz, outer 50Hz/60Hz, outer diameter 5mm) diameter 5mm) diameter 10mm) diameter 30mm) Power supply method DC 12V/1A (standard adaptor) CTB20B Accuracy List Frequency Amplitude Phase ±0.3% rdg. ±0.05% f.s. DC < f ≤ 100 Hz ±0.3% rdg. ±0.01% f.s. ±0.1deg.
- Page 8 Shenzhen Zhiyong Electronics Co., Ltd. CTB200B Accuracy List Frequency Amplitude Phase ±0.3% rdg. ±0.02% f.s. DC < f ≤ 100 Hz ±0.3% rdg. ±0.01% f.s. ±0.1deg. 100Hz< f ≤ 500 Hz ±0.3% rdg. ±0.02% f.s. ±0.2deg. 500Hz< f ≤ 1kHz ±0.5% rdg.
- Page 9 Shenzhen Zhiyong Electronics Co., Ltd. CTB20B Current rated value vs. Frequency curve : ambient temperature CTB200B Current rated value vs. Frequency curve : ambient temperature CTB500B Current rated value vs. Frequency curve...
-
Page 10: Machinery Specification
Shenzhen Zhiyong Electronics Co., Ltd. CTB1000B Current rated value vs. Frequency curve 6. Machinery Specification CTB20B CTB200B CTB500B CTB1000B Jaw diameter 20mm 50mm Connecting cable length Current clamp handle 162*80*31mm 246*116*35mm dimension（L*W*H） Probe weight 385g 750g 880g 7. Environment Characteristics... -
Page 11: Measurement Steps
Shenzhen Zhiyong Electronics Co., Ltd. probe, measurement may not proceed normally The frequency of the current under test will generate resonance. This will not influence the result. The position of the conductor under test within the sensor head will influence the result. Please adjust ... -
Page 12: Packing List
Name Amount Current Probe DC12V Adaptor (CK-612) Instruction Manual Warranty Card Test Report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 +86-755-86628000 Q Q:...
